4.3 End stop
¶ Tighten the screws hand-tight.
1
1

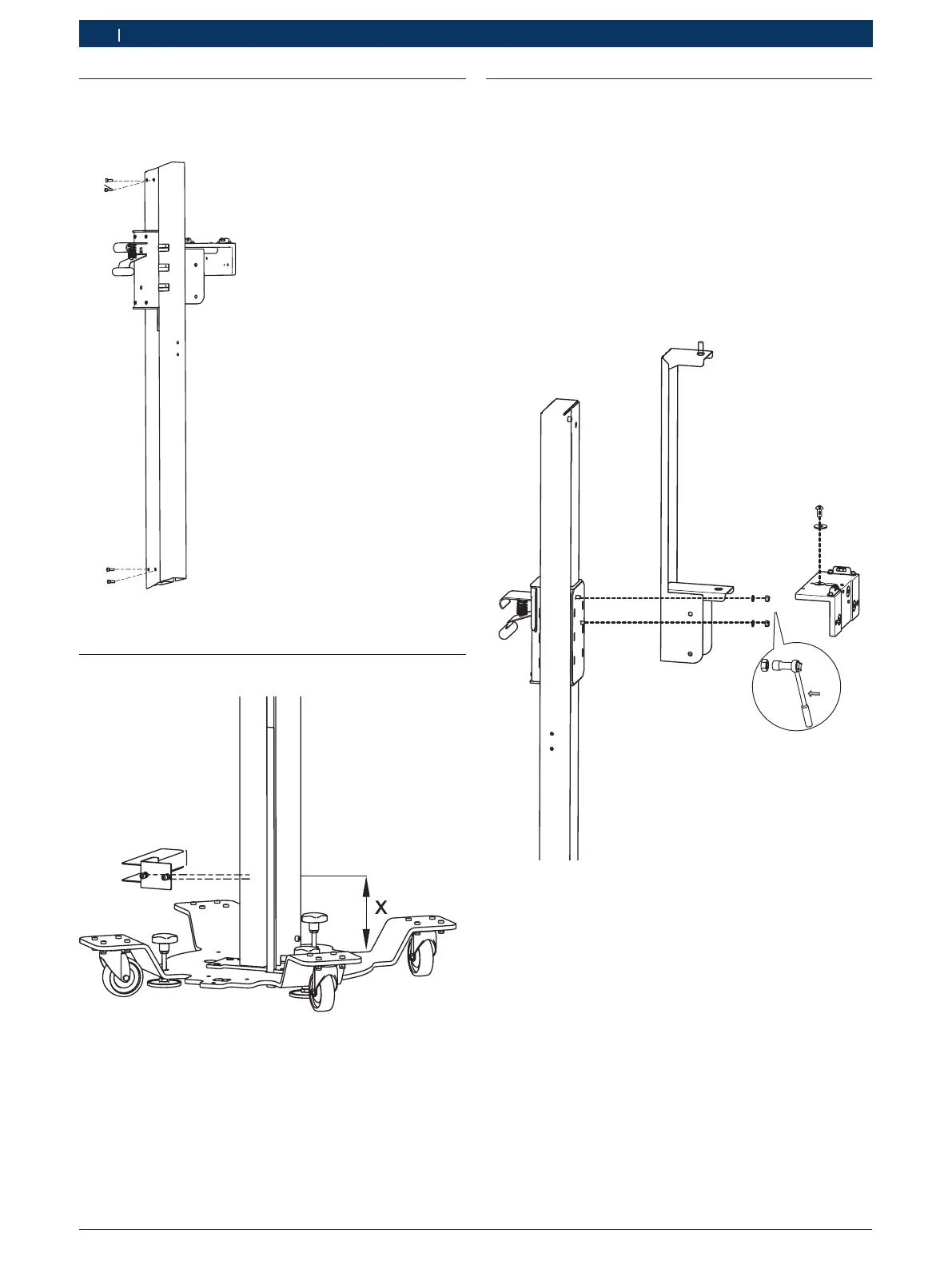

Fig. 4: End stop
1 2 x M5 x 16
4.4 Tape measure mounting
Fig. 5: Tape measure mounting
X 0mm - 300mm
1. Attach the tape measure mounting at a height of
0mm - 300mm (measured from the base plate) or
in accordance with specific vehicle manufacture
requirements.
2. Tighten the screws hand-tight.
4.5 Mount for precision holder
i
To simplify assembly, remove the precision holder.
On completion of assembly of the "Mount for the
precision holder", reattach the precision holder.
1. Position the mount for the precision holder on the
threaded bolts of the slide.
2. Fasten the mount for the precision holder to a maxi-
mum of 5Nm using self-locking hex nuts.
! A greater torque may damage the threaded bolts.
13
Fig. 6: Fastening the mount for the precision holder
