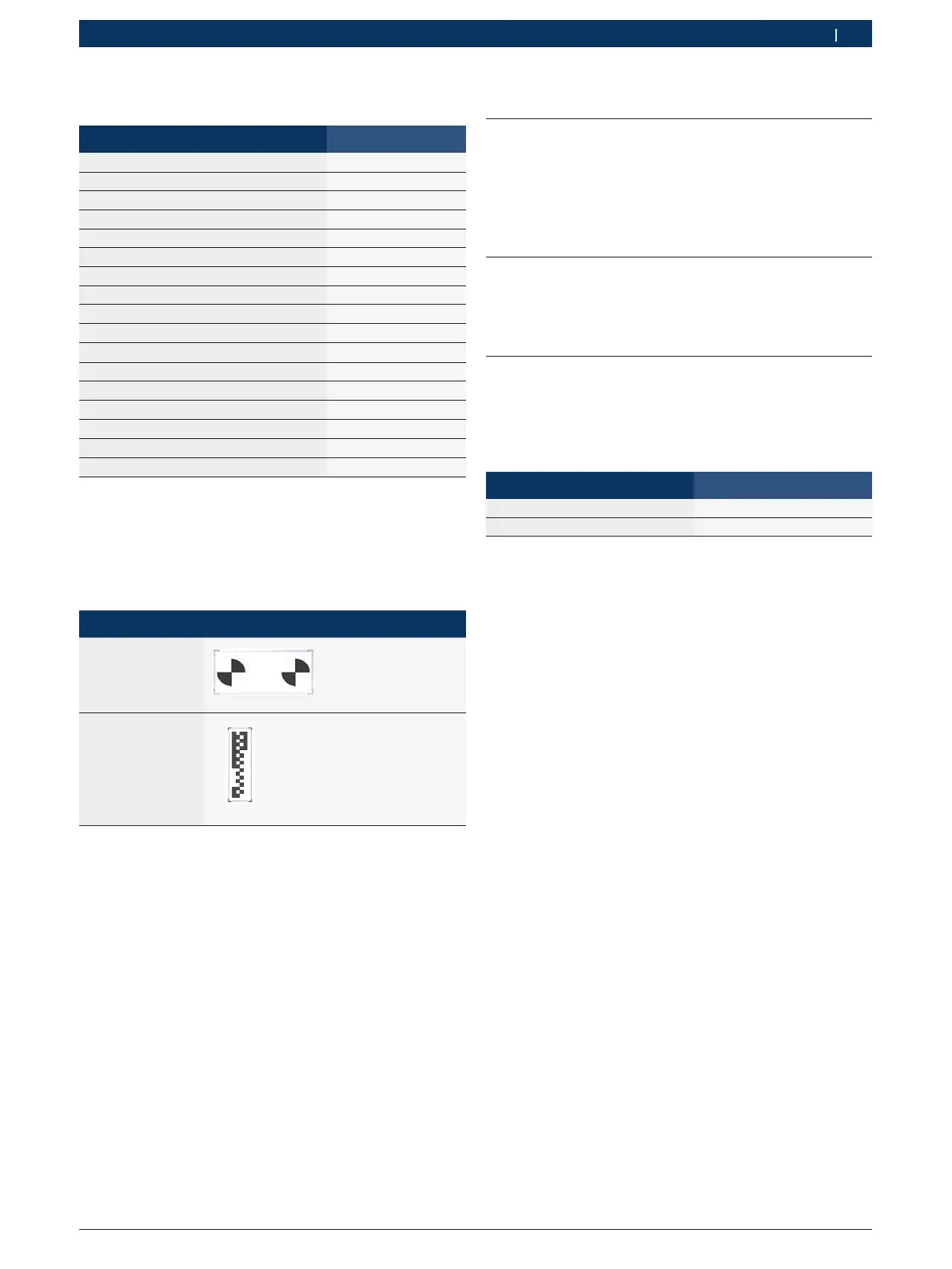

1 690 386 081 2018-02-22| Robert Bosch GmbH
Spare parts | EL–52425 | 27 en
9. Decommissioning
9.1 Changing location
¶ If the EL–52425 is handed over to someone else,
hand over all the documentation included in the
scope of delivery as well.
¶ The EL–52425 must only be transported in the origi-
nal or equivalent packaging.
9.2 Temporary shutdown
1. Attach a calibration board at positions 1 and 2.
2. Cover the EL–52425 with a protective hood and
stored in a safe place.
9.3 Disposal and scrapping
¶ Dismantle the EL–52425, sort by materials and dis-
pose of in accordance with applicable regulations.
10. Technical specifications
Property Specification
Dimensions HxWx D 1800x600x600mm
Weight 35 kg
7. Spare parts
Designation Part number
Post with slide 1 690 381 254
Slide 1 690 382 280
Guide roller with accessory 1 690 381 208
Precision holder 1 690 381 126
Adjustable foot with accessory 1 690 381 149
Tape measure holder 1 690 382 499
Mounting arm 1 690 382 492
Tape measure 1 693 740 533
Universal target, Type 1 1 690 382 288
Protective hood 1 690 382 497
Position indicator (EL
–51747-2)
1) 2)
1 690 382 583
Laser unit
1)
1 690 381 124
Securing cable
1)
1 690 381 237
Setting aid
1)
1 690 381 210
Ruler
1)
1 690 382 281
Ruler mounting
1)
1 690 381 255
Pointer
1)
1 690 382 496
1)
Special accessory
2)
For universal target, Type 3
8. Calibration boards
Designation Fig. Part number
Opel Movano
Universal target
1) 3)
Type 3
1 690 382 485
Universal target
1) 2)
Type 1
1 690 382 288
1)
May be included in scope of delivery, depending on the version
ordered
2)
Only usable together with the mounting arm
3)
Position pointer for alignment
