6.5.6.7 Adjusting the angle-adjustable stem
Only applies to pedelecs with this equipment
Angle-adjustable stems are available in different
lengths for quill and Ahead stems.

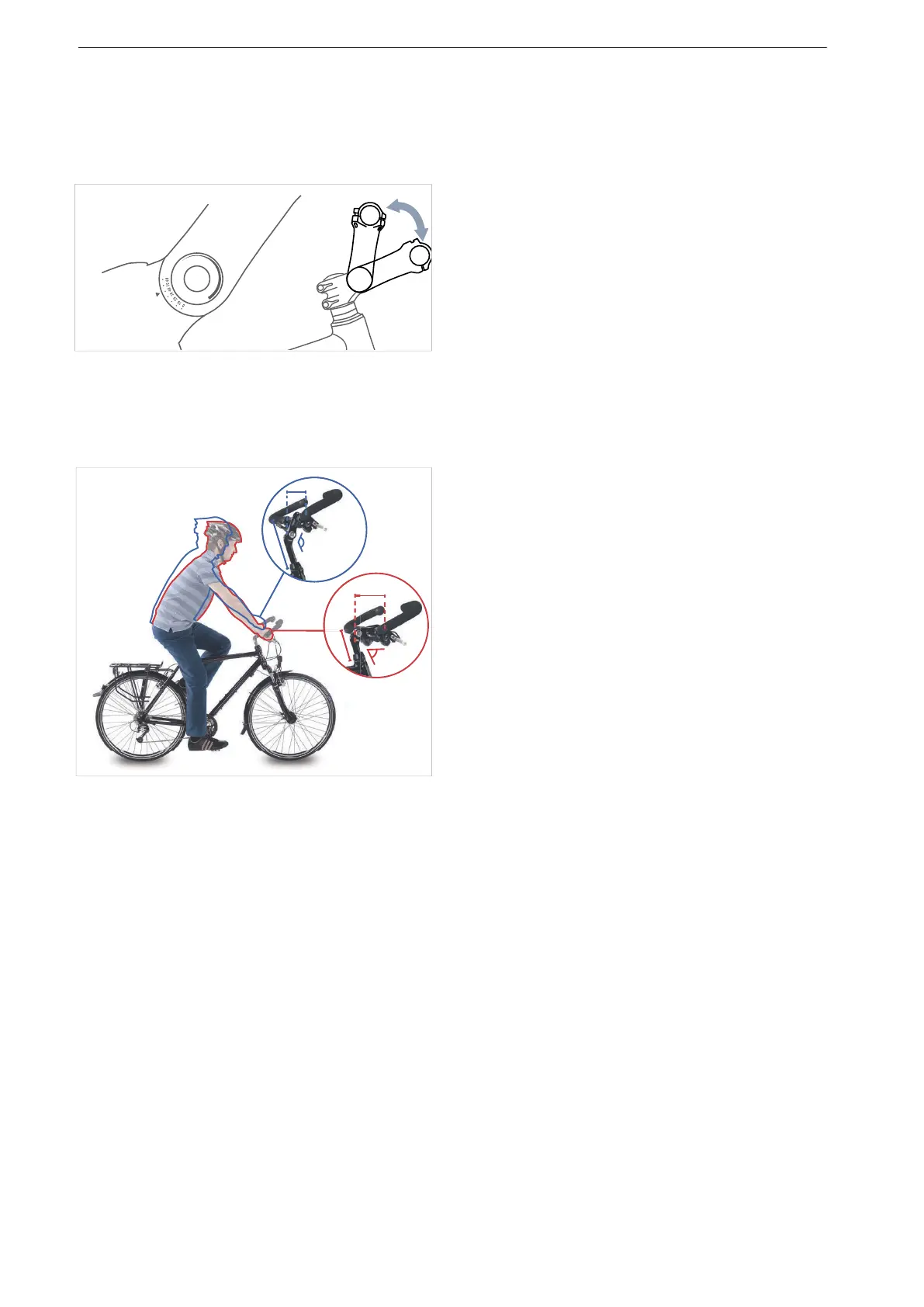

Figure 124: Different versions of angle-adjustable stems
Adjusting the stem angle (c) changes both the
distance from the upper body to the
handlebars (b) and the handlebar height (a).
Figure 125: City bike (blue) and trekking bike position
(red) by changing the angle
