6.22.1 Screwing in the quickly adjustable
stem
Only applies to pedelecs with this equipment
Screw in the quickly adjustable stem to save
space when parking.
1 Open stem clamping lever.

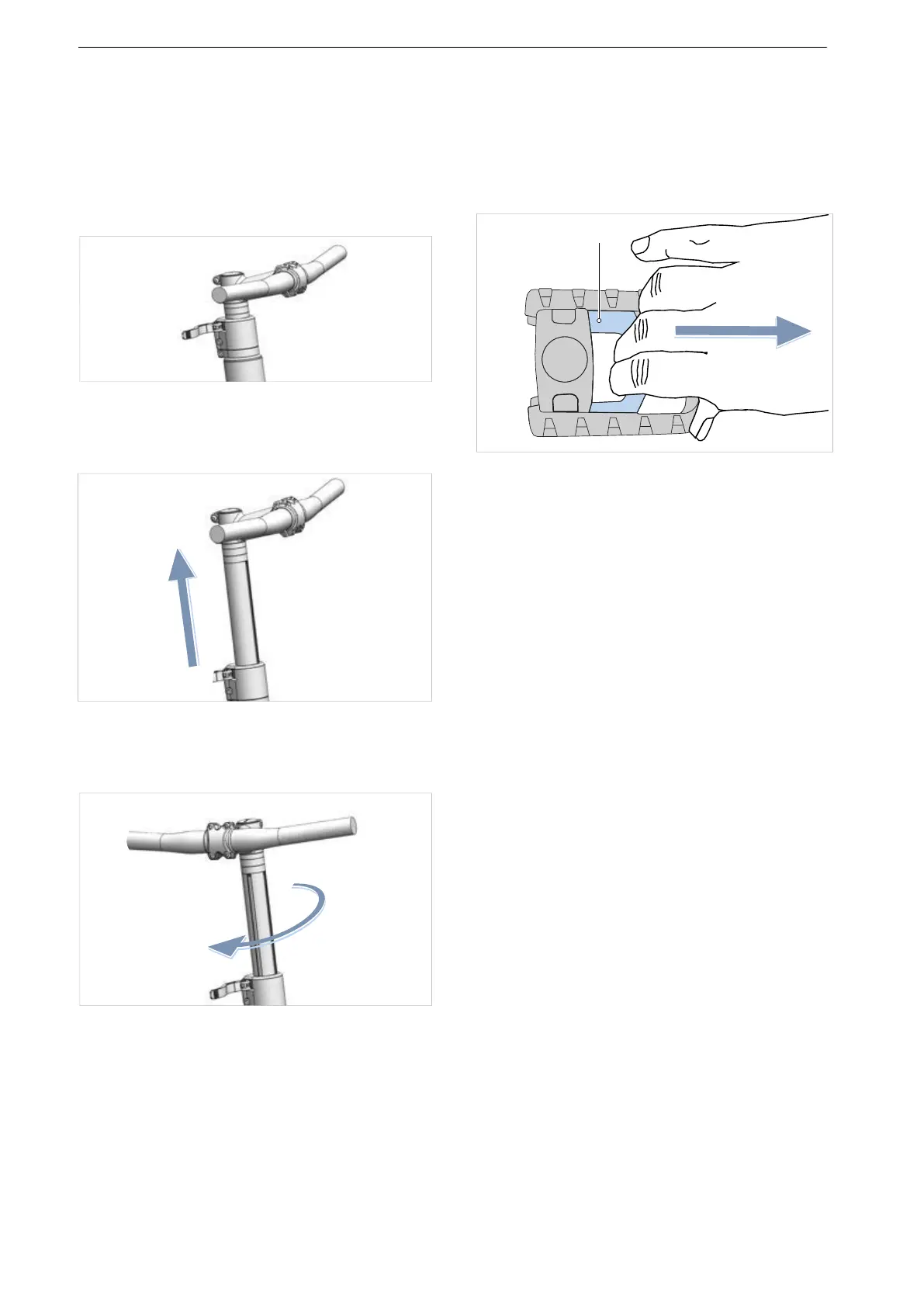

Figure 186: Example of All Up with open stem clamping
lever
2 Pull handlebars into highest possible position.
Figure 187: Example of All Up pulled into highest possible
position
3 Turn handlebars 90° in a clockwise direction.
Figure 188: Example of All Up screwed in
4 Place handlebars at required height.
5 Close stem clamping lever.
6.22.2 Folding up the pedal

Clean the pedal (see Section 7.2.4).
1 Use two fingers to pull the pedal folding latch (1)
downwards and hold in position.
 The folding system is unlocked.
Figure 189: Pulling the pedal folding latch (1) downwards
2 Fold the pedal upwards.
3 Release your grip to carefully allow the pedal
folding latch to return to its original position.
 The pedal is folded away.
