NurseCall Main Unit Installation | en 17
Bosch Security Systems User Manual F.01U.252.699 | V1.1 | 2012.01

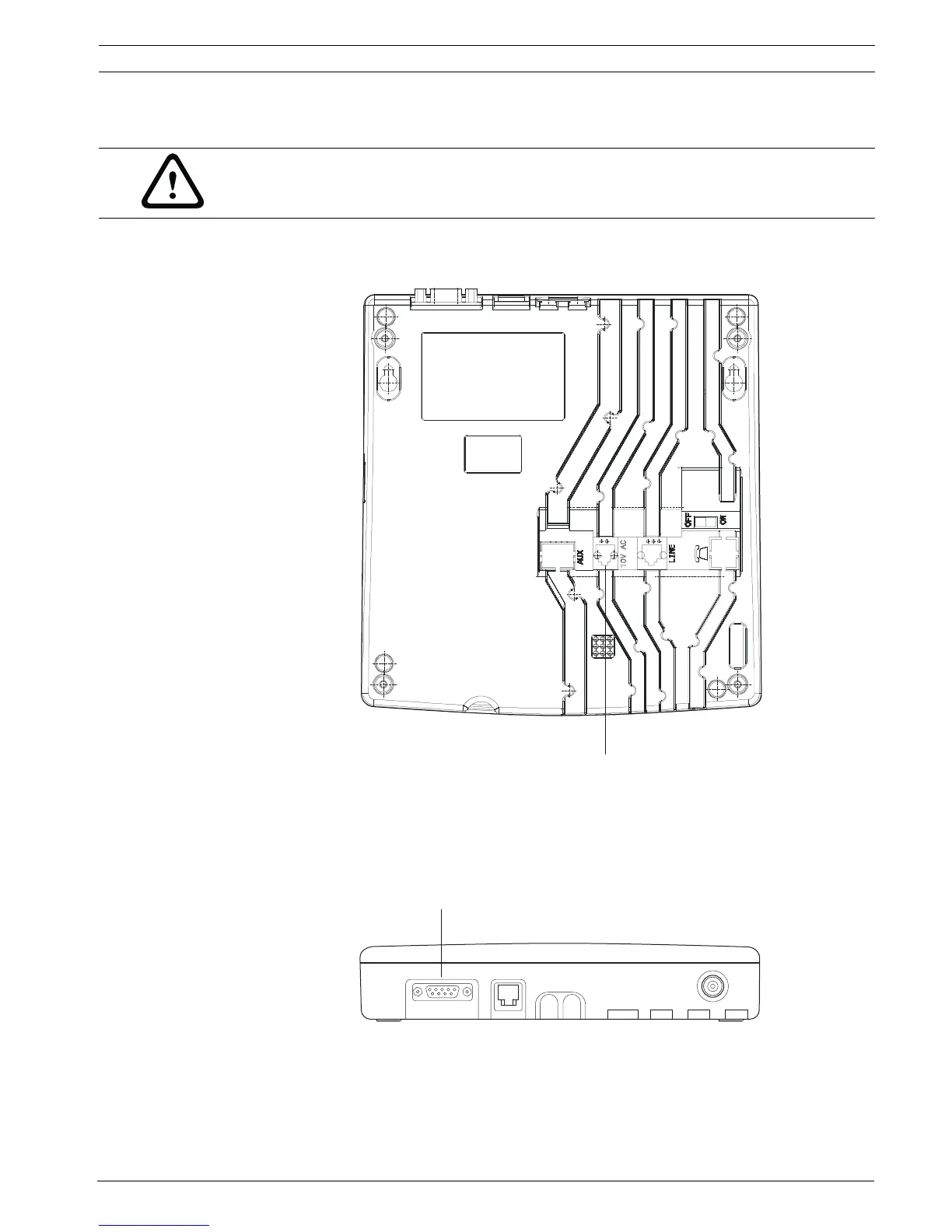

3.2.5 Connecting to the mains
The NurseCall Main Unit is powered by an adaptor (230/10 VAC or 115/10 VAC).
1. Plug the power adaptor into a power outlet placed near the unit. It should be easily
accessible at any time.
2. Connect the cable to the socket labeled 10V AC (1), under the unit.
For connector wiring, see Section A.7.2 Power socket (unit bottom), page 59.
3.2.6 Connecting the RS-232
Connect the device to the 9-pole SUB-D connector (1) at the rear part of the housing.
For connector wiring, see Section A.7.3 RS-232 socket (unit rear), page 59.
CAUTION!
In case of a different supply, the equipment must fulfill isolation requirements according to
EN60950 standard (last edition).
