2 Description
2.1 General description
2.1.1 Top view

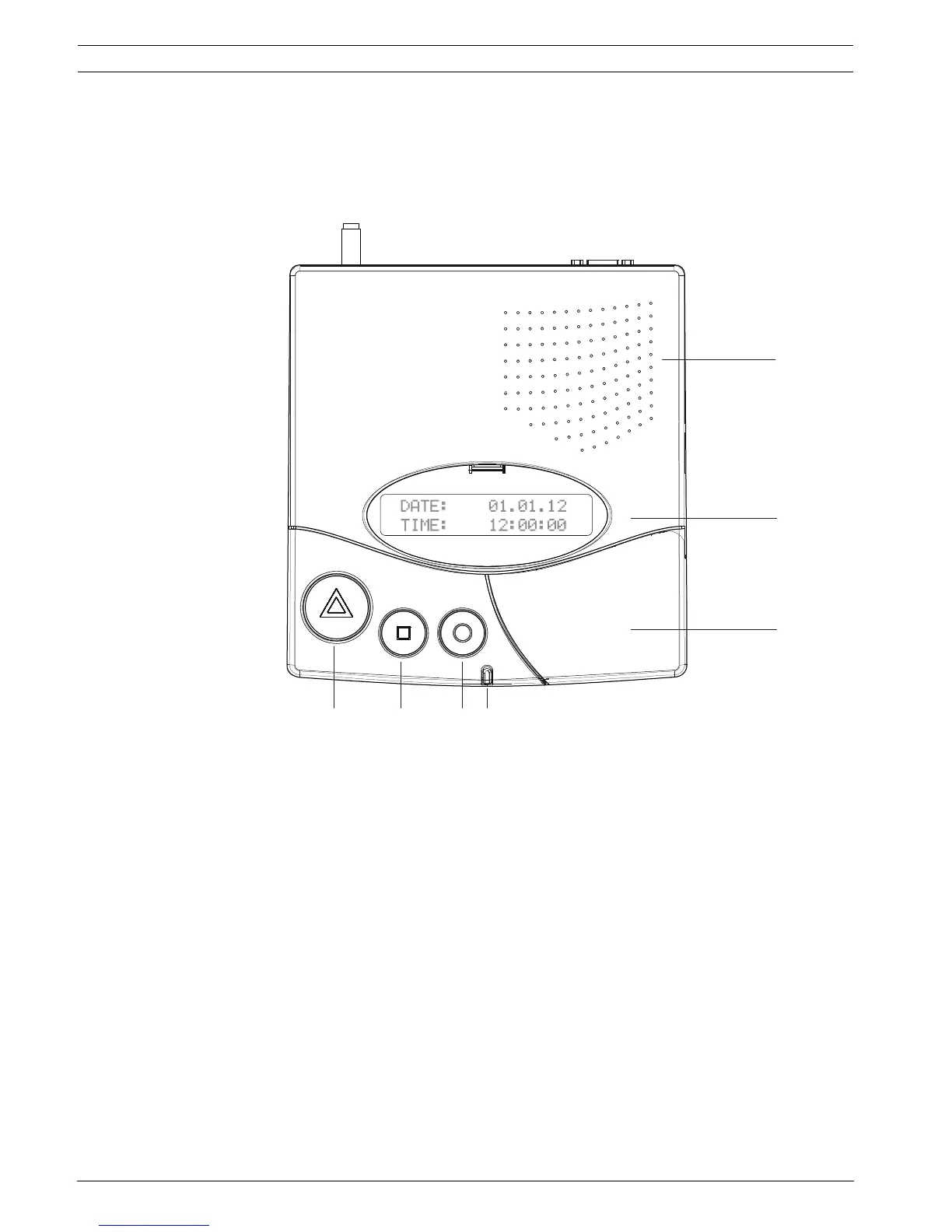

1. Loudspeaker.
See Section 2.2.1 Loudspeaker, page 11.
2. Display.
See Section 2.2.2 Display, page 11.
3. Keyboard, under the cover.
See Section 2.2.3 Keyboard, page 11.
4. LED Indicator
5. Yellow button
Used to view more details about the event or alarm currently displayed (date and time,
position, etc...).
6. Green button
Used to acknowledge an alarm locally, see Section 5.2.3 Local acknowledgement, page 45.
7. Red button with light
This button is not used. Pressing the button does not activate a function.
The light blinks red during an alarm.
2
1
3
7654
