Bosch NurseCall Main Unit - Bottom View

NurseCall Main Unit Description | en 9
Bosch Security Systems User Manual F.01U.252.699 | V1.1 | 2012.01

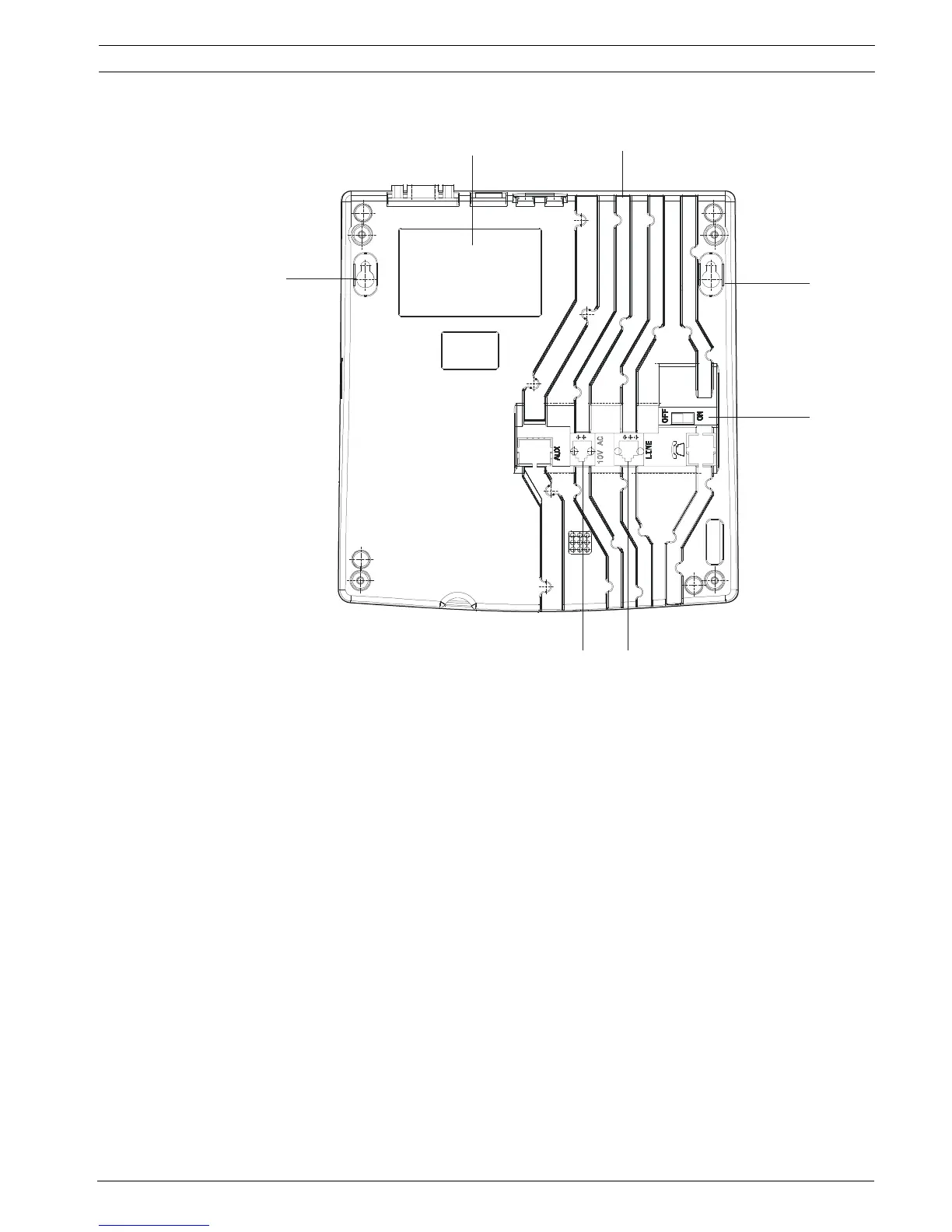

2.1.2 Bottom view
1. Identification label.
2. Cable channels.
3. Wall mounting holes (distance between holes, 157 mm).
See Section 3.2.3 Wall installation, page 16 for a detailed description.
4. ON/OFF switch.
5. LINE socket, used for firmware update.
See Section A.7.1 LINE socket (unit bottom), page 59 for wiring.
6. 10V AC socket.
See Section A.7.2 Power socket (unit bottom), page 59 for wiring.
4
3
65
12
3
