Bosch NurseCall Main Unit - A.7 Connectors; A.7.1 LINE Socket (Unit Bottom); A.7.2 Power Socket (Unit Bottom); A.7.3 RS-232 Socket (Unit Rear)

NurseCall Main Unit | en 59
Bosch Security Systems User Manual F.01U.252.699 | V1.1 | 2012.01

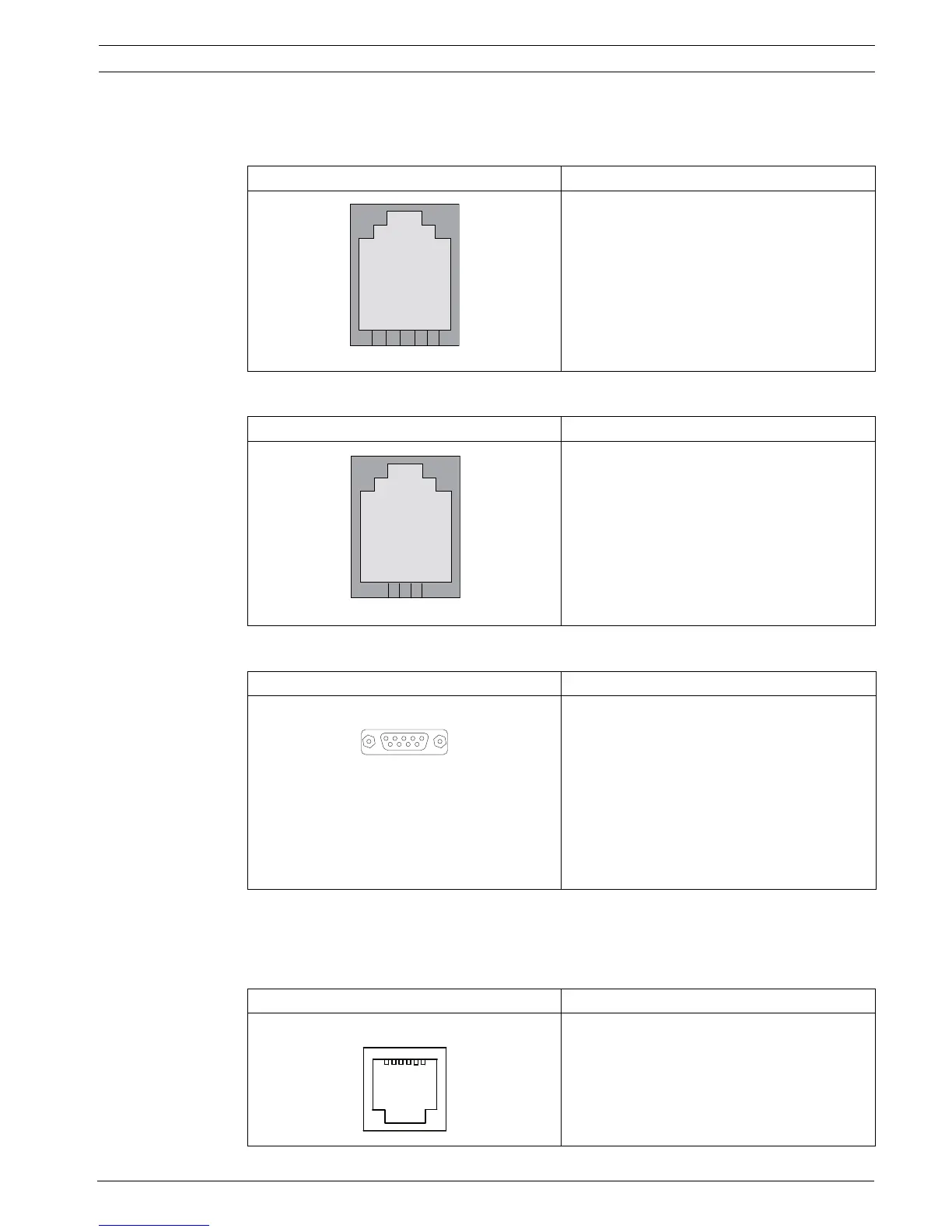

A.7 Connectors
A.7.1 LINE socket (unit bottom)
A.7.2 Power socket (unit bottom)
A.7.3 RS-232 socket (unit rear)
The values in brackets are for the jumper setting for Paging. See Section Setting the jumpers
for Paging systems (except Medicall 800) and printers:, Page 18.
A.7.4 RS-485 socket (unit rear)
LINE socket Wiring
1. Flash Data GND
2. Not used
3. Not used
4. Not used
5. Not used
6. Flash Data IN/OUT
1
23
4 5
6
10V AC socket Wiring
1. Not used
2. AC-1 10-12VAC
3. AC-2
4. GND
1
23
4
RS-232 socket Wiring
1. ---
2. TXD (RXD)
3. RXD (TXD)
4. ---
5. GND
6. ---
7. CTS
8. RTS
9. ---
123
4
5
6
879
RS-485 socket Wiring
1. Relay output (a)
2. RS485 (A)
3. Termination = RS485 (A)
4. RS485(A) when jumper end line is placed
5. RS485 (B)
6. Relay Output (b)
123456
