Bosch SMT 300 User Manual

1 689 989 261 2019-04-08| Robert Bosch GmbH
Product description | SMT 300 | 25 en
4. Product description
4.1 Intended use
The SMT 300 is a tester that uses smoke technology for
detection of
R leakage in all low-pressure systems
R Wind and water leaks in the body.
! Use for any purpose other than the intended use de-
scribed above is not allowed. Any other use as well
as modifications to the product, even during assem-
bly and installation, voids all warranty claims.
i The SMT 300 complies with the SAE recommenda-
tions (2007-01-1235 & 2008-01-0554) for increased
safety during fuel vapor tests (EVAP).
4.2 Prerequisites
R Compressed-air connection with 3.4bar – 12bar
(50psi – 175psi).
R Maintenance unit (upstream water and oil separator)
R Vehicle battery 12V.
R Gas bottle with non-flammable gas (nitrogen, argon
or CO
2
) and pressure regulator (7bar / 100psi)
(not included in the scope of delivery).
4.3 Accessories supplied
Designation Order number Fig.
1)
Case containing the following items: 1 685 438 659 -
R UltraTraceUV® smoke solution F 00E 900 348 -
R Connector cap kit 1 680 322 069 I1
R Adapter cone 1 681 334 039 I2
R Smoke diffuser 1 681 390 002 I3
R Multi-function lamp, incl. UV safety
goggles (OSHA-compliant) and
3 microbatteries
1 687 550 077 -
R EVAP service port connector,
standard size
1 683 457 130 I4
R Schrader removal/installation tool 1 687 012 181 I5
Operating instruction 1 689 989 261 -
Tab. 1: Scope of delivery
1) The illustrations for the included accessories described above can
be found on the second page of these operating instructions.
4.5 Product descriptionSMT 300
4.5.1 Front view
1
2
3
4
5
6
7

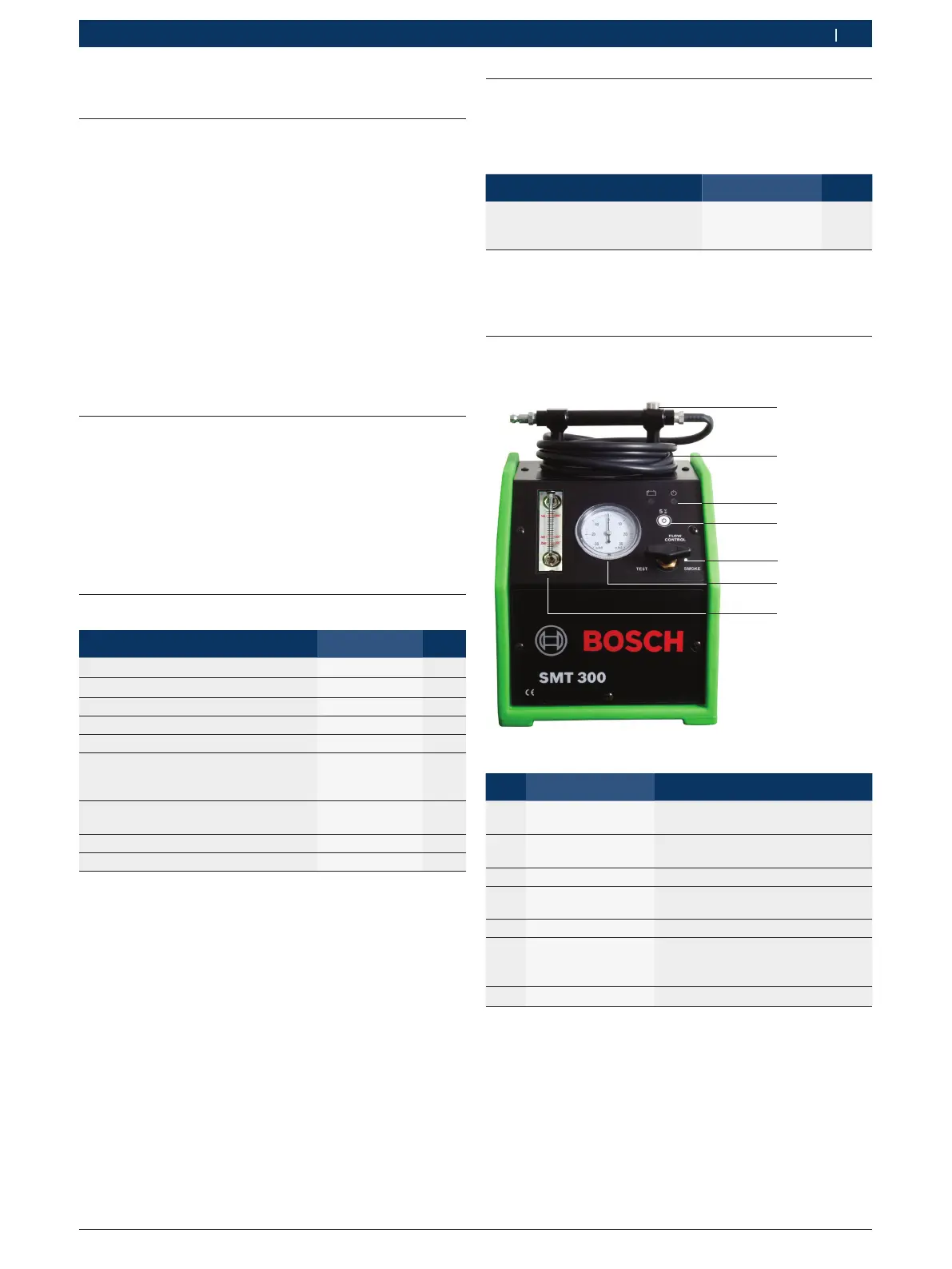

Fig. 1: Front view SMT 300
Item
Designation
Function
1
Smoke solution dip-
stick
For use when filling or checking
the correct fill level.
2
Smoke supply hose
with Delrin® nozzle
Material: Nitrile rubber
Length: 2.5m
3
Status indicators see sec.4.5.2
4
Power key For switching smoke generation on
and off.
5
Smoke flow control see sec.4.5.3
6
Pressure gauge
Pressure/
vacuum indicator
For checking whether there is leak-
age in the system.
7
Flow meter see sec.4.5.4
Tab. 3: Overview of components and functions (front view)
4.4 Special accessories
i The following components expand the functionality
of the SMT 300 and can be purchased additionally.
Designation Order number Fig.
1)
Fuel filler neck:
R Universal adapter
R BMW Mini adapter
1 681 335 125
1 681 335 126
O1
O2
Tab. 2: Special accessories
1) The illustrations for the special accessories described above can
be found on second page of these operating instructions.
