Bosch ZEMO SU-E FS 12 - Straighten Saddle; Positioning the Saddle with Eightpins Suspension Seat Post

MY22Z0a - 12_1.0_25.07.2022
111
Operation
6.5.4.1 Straighten saddle
 Position saddle in direction of travel. In doing
so, align the tip of the saddle with the top tube.

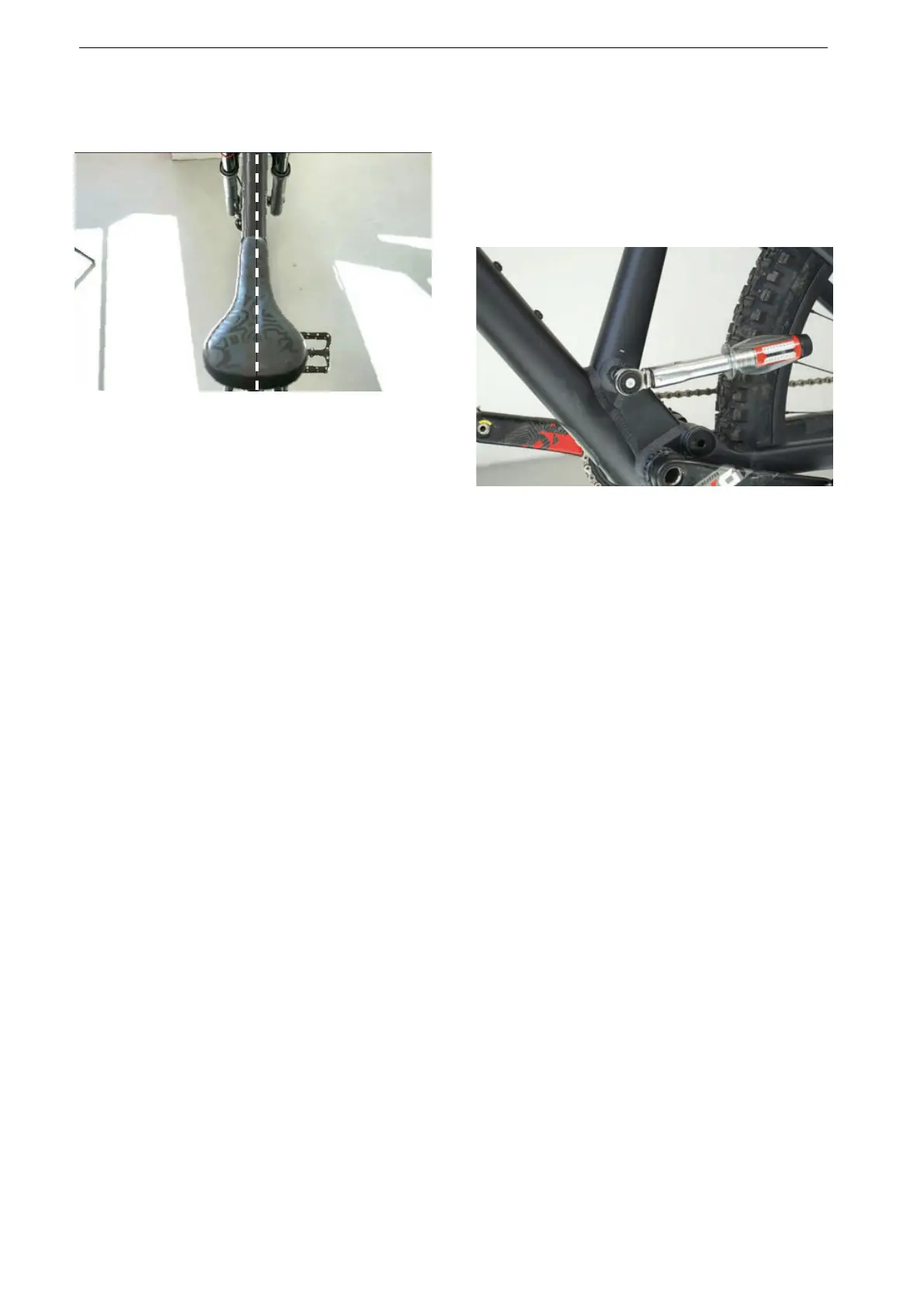

Figure 115: Positioning the saddle in direction of travel
6.5.4.2 Positioning the saddle with eightpins
suspension seat post
Only applies to pedelecs with this equipment
1 Position saddle in direction of travel. In doing
so, align the tip of the saddle with the top tube.
2 Use a torque wrench to tighten the seat post
axle with 8 Nm.
Figure 116: Tightening the seat post axle
