Assembly
5.3.1.1 Securing the PowerTube BS3 battery mount
Only applies to pedelecs with this equipment
The BOSCH PowerTube BS2 battery mount must
be secured by clamping a clip on its rear.
Since one locking nut is on the battery mount
rear, remove the motor to fasten the nuts.
1 Take out battery, (see Section 6.16).
2 Fasten pedelec into fitting stand.
Removing the belt or chain guard
3 Undo mount screw.
4 Remove belt or chain guard.

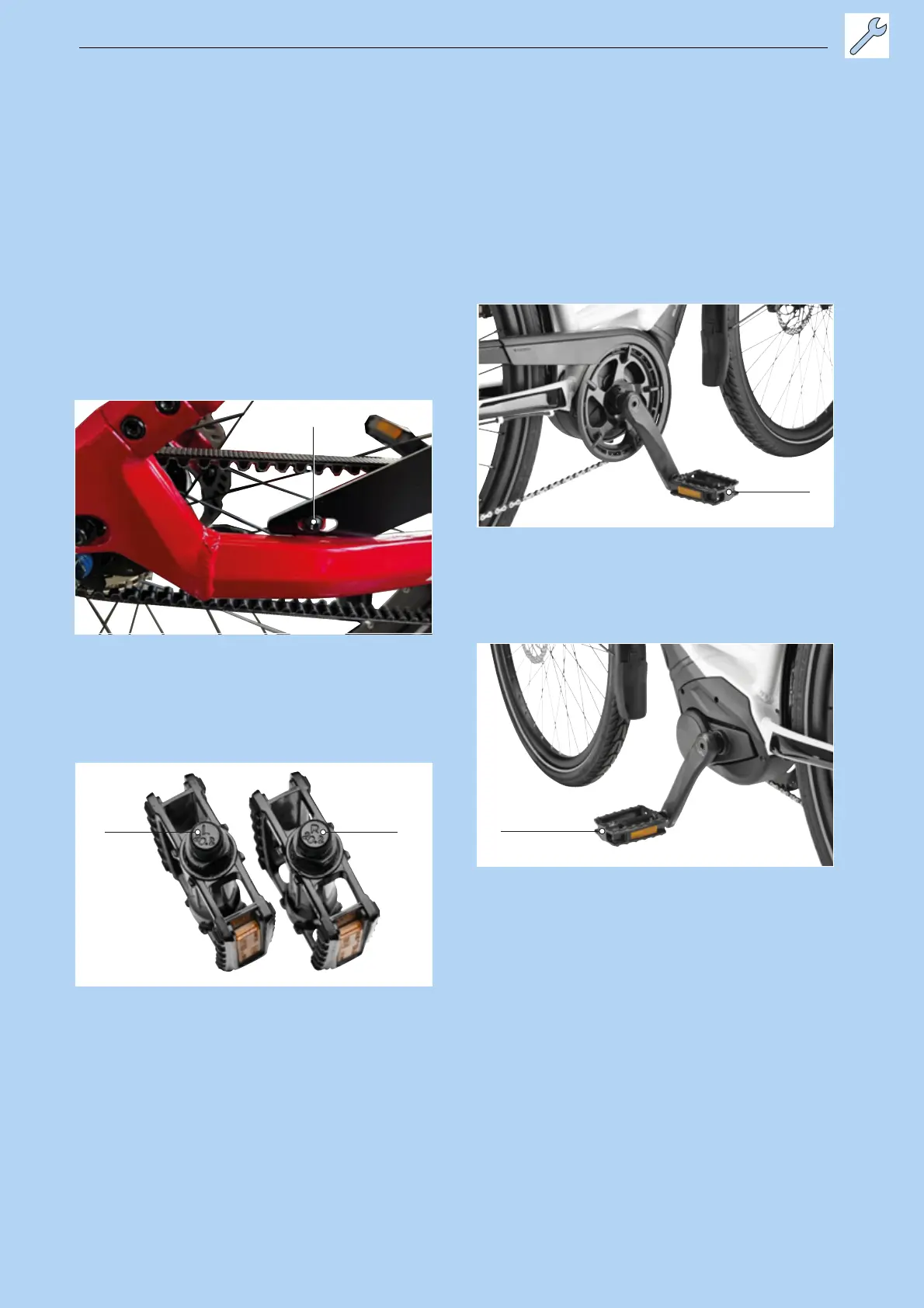

Figure 57: Position of mount screw
Removing the pedals
The mark is either on the top end, the axle or the
pedal body.
Figure 58: Example of mark on pedals
5 Use a 15 mm screw wrench to undo the left
pedal thread in a clockwise direction and the
right pedal thread in an anti-clockwise
direction.
6 Turn the pedal marked R anti-clockwise by
hand out of the crank arm on the right as seen
when facing the direction of travel.
Figure 59: R-pedal in the right-hand crank arm
7 Turn the pedal marked L clockwise by hand out
of the crank arm on the left as seen when
facing the direction of travel.
Figure 60: L-pedal in the left-hand crank arm
