Bosch ZEMO SU-E FS 12 - Adjusting the SR SUNTOUR Compression Adjuster

MY22Z0a - 12_1.0_25.07.2022
172
Operation
6.21.1 Adjusting the SR SUNTOUR compression adjuster

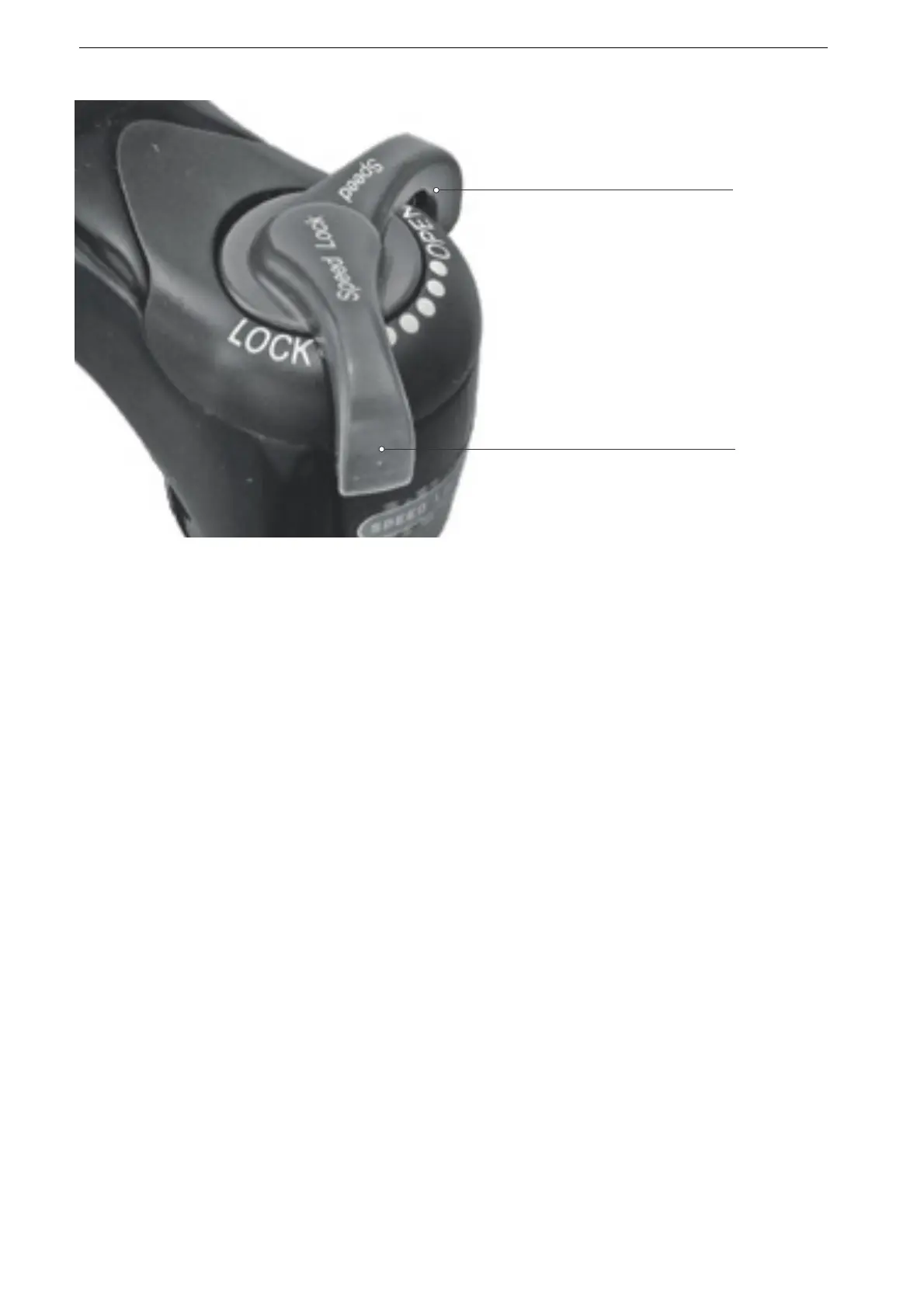

Figure 193: SR SUNTOUR compression adjuster in open (1) and closed (2) position
 Place compression adjuster in the OPEN
position.
 The compression adjuster is open.
 Place compression adjuster in the LOCK
position.
 The compression adjuster is locked.
 Position compression adjuster between
OPEN and LOCK.
 This position allows you to fine-tune the
compression adjuster.
We recommend setting the compression adjuster
to the OPEN position first.
