Cleaning, servicing and inspection
7.5.5.2 Check
There is a different wear gauge for each chain,
depending on the manufacturer:

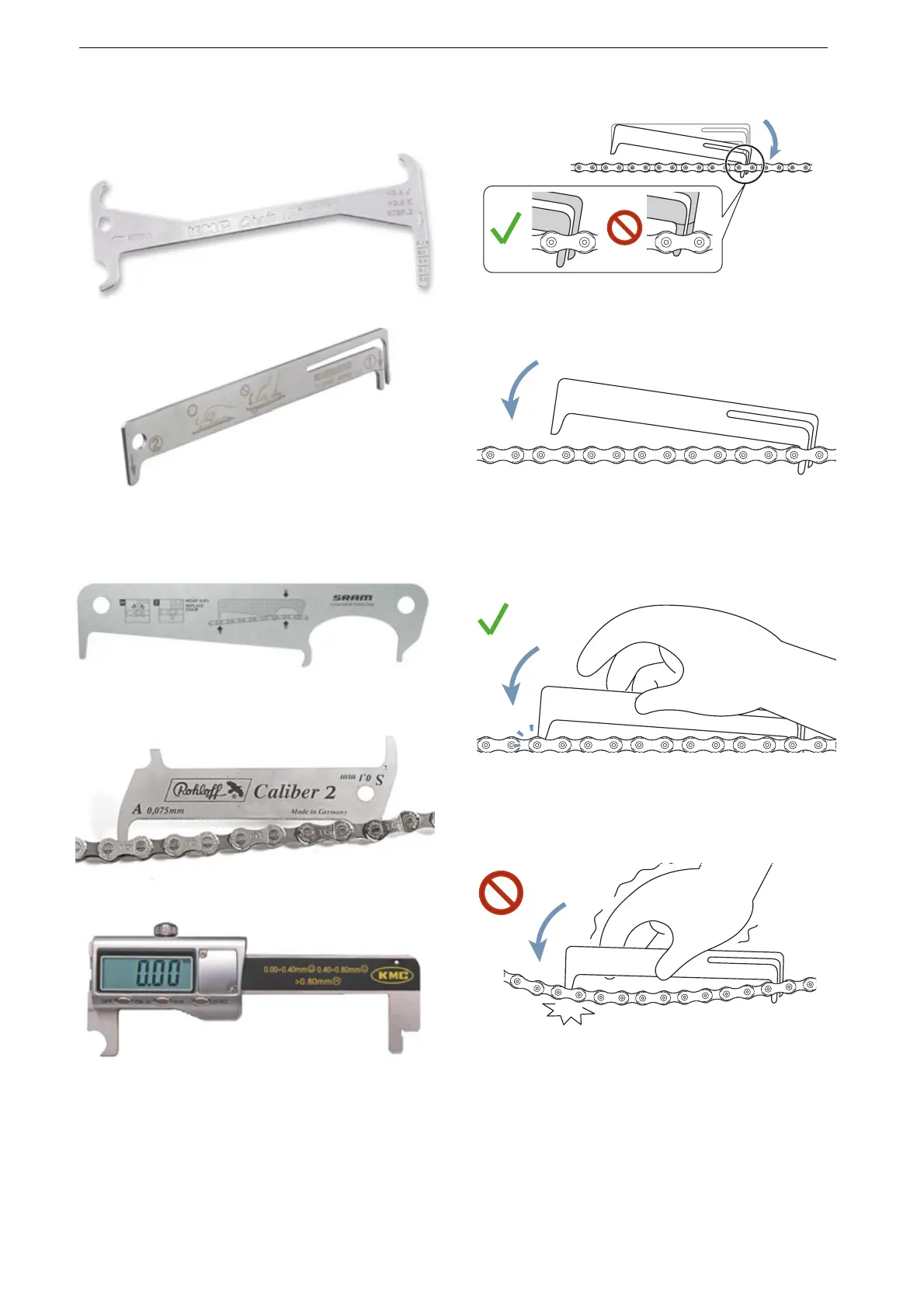

Figure 208: Example of a KMC gauge
Figure 209: Example of a SHIMANO gauge
Figure 210: Example of a SRAM gauge
Figure 211: Example of a ROHLOFF gauge
Figure 212: Example of a KMC digital gauge
1 Insert gauge between two chain links on the
right-hand side.
Figure 213: Gauge is inserted
2 Lower gauge down to the left-hand side.
Figure 214: Lower gauge to the left
If the gauge does not fit between the links, the
chain is not worn yet.
Figure 215: Gauge does not fit
If the gauge does not fit between the links, the
chain is worn and must be replaced. Contact
specialist dealer.
Figure 216: Gauge fits
