Inspection and maintenance
8.5.9.2 Inspecting and greasing BY.SCHULZ
suspension seat post
Only applies to pedelecs with this equipment
1 Remove seat post from the frame.
2 Remove safety and protective cover.
3 Clean seat post on the inside and outside.
4 Examine seat post rack for scratches, cracks
and breaks.
Replaced damaged seat post as specified in
the parts list.
5 Lubricate screws in the parallel suspension.
6 Reinsert seat post as per height specifications
in the pedelec pass. Check screws for correct
tightening torques.
7 Put on safety and protective cover.
8.5.9.3 Inspecting and greasing RS SUNTOUR
suspension seat post
Only applies to pedelecs with this equipment
1 Remove seat post from the frame.
2 Remove safety and protective cover.
3 Examine seat post rack for scratches, cracks
and breaks.
Replaced damaged seat post as specified in
the parts list.
If the paint protection film protecting a child
seat is missing or has worn away, affix a new
paint protection film.
4 Undo pre-tensioning adjuster and take out
steel spring.
5 Clean seat post on inside and outside.
6 Grease seat post on inside with SR SUNTOUR
grease no. 9170-001.
7 Lubricate pressure roller with bicycle chain oil.
Lubricate articulated joints in parallel
suspension with bike chain oil.

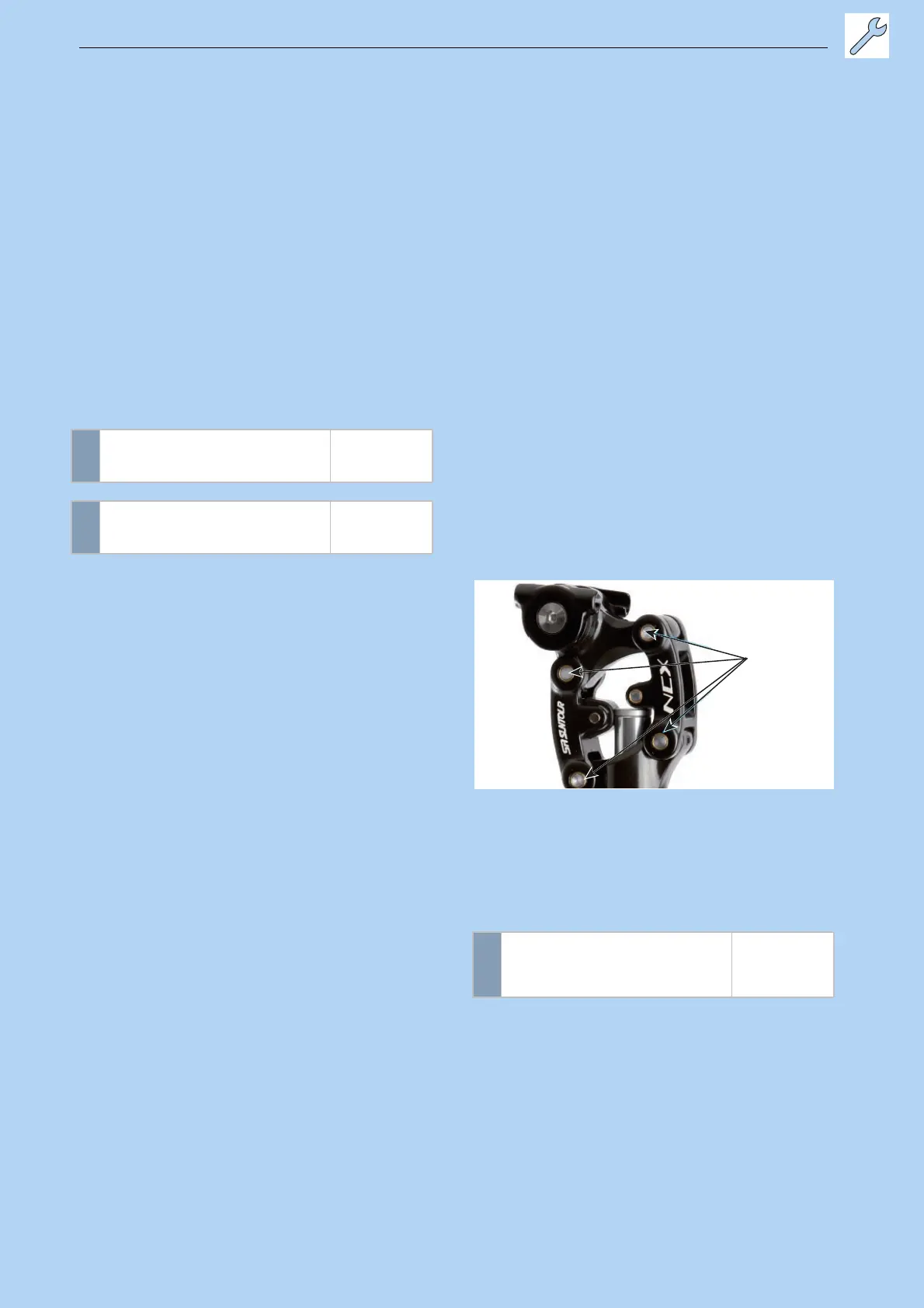

Figure 236: SR SUNTOUR suspension seat post
lubrication points
8 Reinsert seat post as per height specifications
in the pedelec pass.
9 Check screws for correct tightening torques.
10 Put on safety and protective cover.
Torques G1
M8 seat clamp screw
M5 fixing grub screws
20 … 24 Nm
3Nm
Torque G2
M6 seat clamp screw
M5 fixing grub screws
12 … 14 Nm
3Nm
SR SUNTOUR suspension seat post
torques
Seat clamp screw
M5 fixing grub screws
15–18 Nm
3Nm
