Description
Steel suspension fork structure
The stem and the handlebars are fastened to the
fork steerer. The wheel is fastened to the axle.

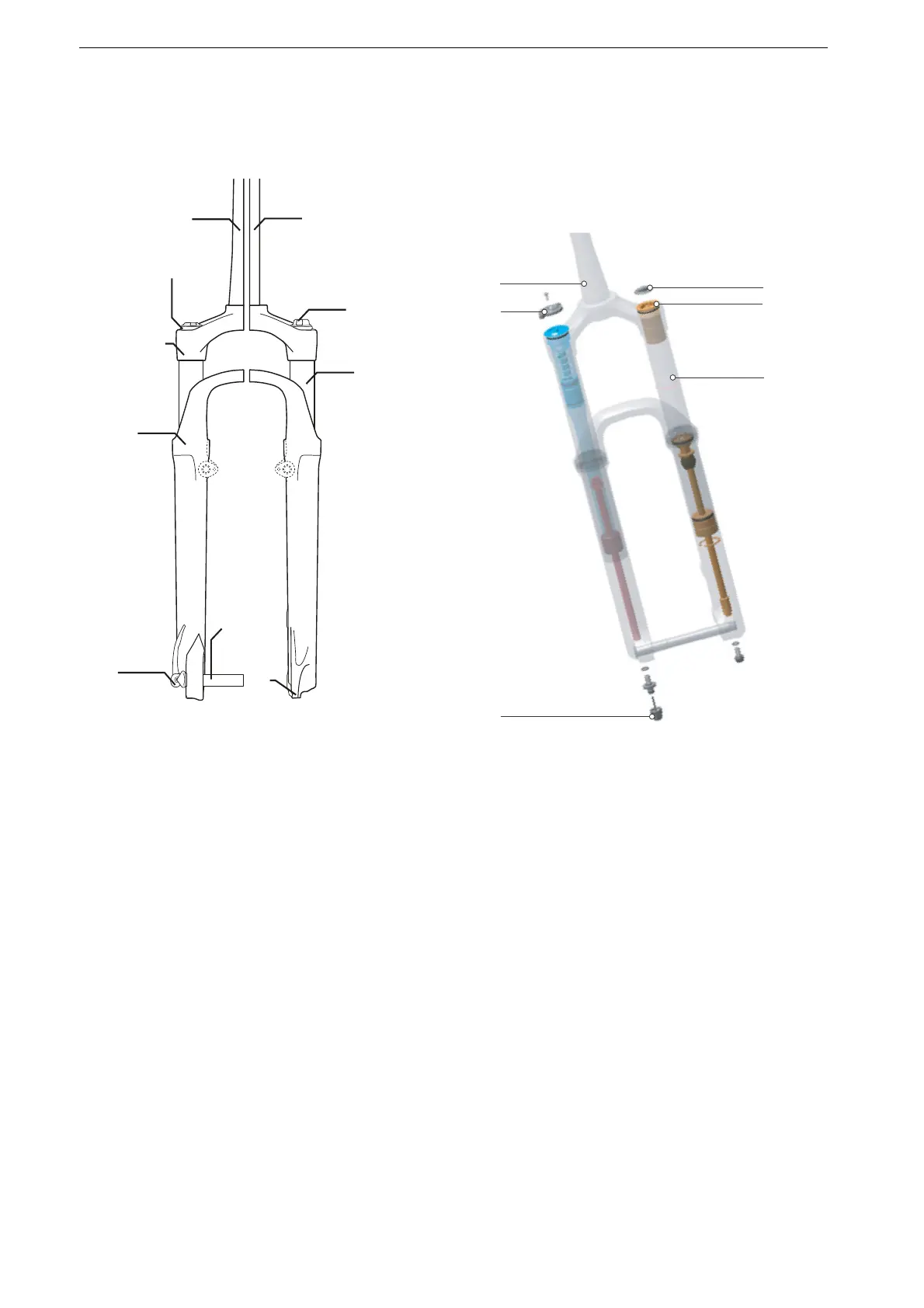

Figure 23: SR SUNTOUR steel suspension fork as an
example
1 Fork steerer
2 Sag setting wheel
3Crown
4 Dust seal
5Q-Loc
6Axle
7 Fork end
8 Stanchion
9 Compression damper
Air suspension fork structure
The air suspension fork comprises up to three
assembly groups:
• Air suspension assembly (orange)
• Compression damper assembly (blue)
• At times, a rebound damper assembly (red)
.
Figure 24: Internal structure of air suspension fork
1 Air valve
2 Air valve cap
3 Fork steerer
4 Sag setting wheel
5 Rebound adjuster,
6 Stanchion
1
1
2
3
4
5
6
8
9
7
1
2
3
4
5
6
