MY22Z0a - 12_1.0_25.07.2022
86
Assembly

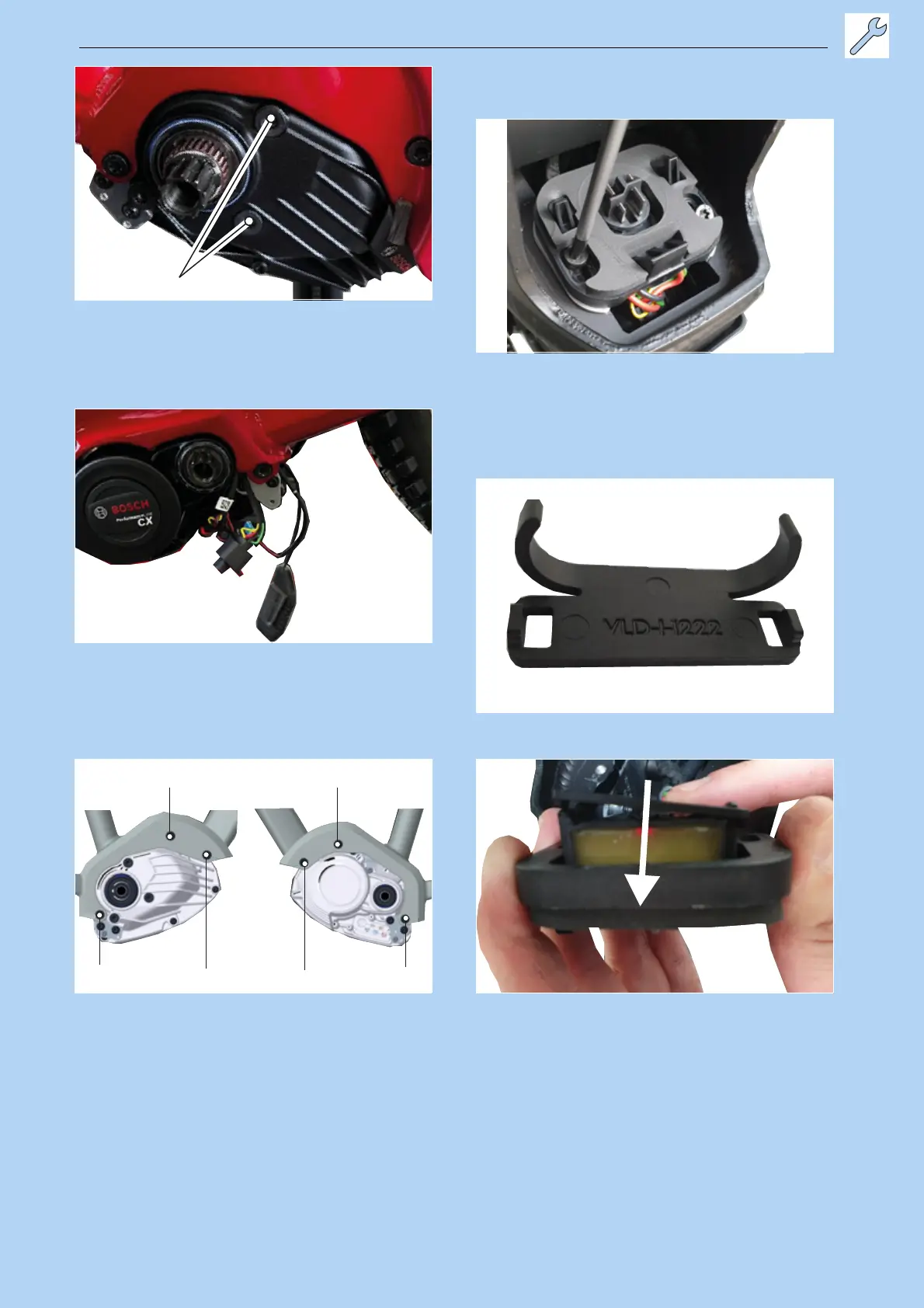

Figure 65: Position of attachment screws (1)
20 Remove motor cover.
21 Remove cabling.
Figure 66: Motor without cover
22 Have second person hold motor. Unfasten
motor screws with Torx Plus® IP40 in the
specified order: 1 - 2 - 3 - 4 - 5 - 6.
Figure 67: Position of motor screw 1 to 6
23 Remove the motor.
The BOSCH PowerTube BS3 battery mount must
be secured by clamping a clip on its rear.
24 Use a TORX® T25 wrench to undo the screws
in the battery mount.
Figure 68: Undoing screws on battery mount
25 Remove battery mount and turn over.
26 Clamp the clip (VLD-I-1222) onto the battery
mount on the rear.
Figure 69: Clip (VLD-I-12122)
Figure 70: Clamping the clip
27 Turn battery mount over and place on the
aluminium brace in the frame.
28 Use a TORX® T25 wrench to fasten the screws
into the battery mount. Hold onto the counter
nut through the frame.
