MY22Z0a - 12_1.0_25.07.2022
88
Assembly
Fitting the crank set
35 Grease the toothing on the crankshafts.
Grease belt sprocket or chain wheel. Place belt
sprocket or chain wheel on the crankshaft.
36 Position crank on top. Use the BOSCH tool and
a ratchet to fasten the crank to the left.
37 Fasten the crank screw with the specified
torque (Section 3.5.10.20
and 3.5.10.21).
38 Use a hex bit to fasten the retaining screws on
the left and right.

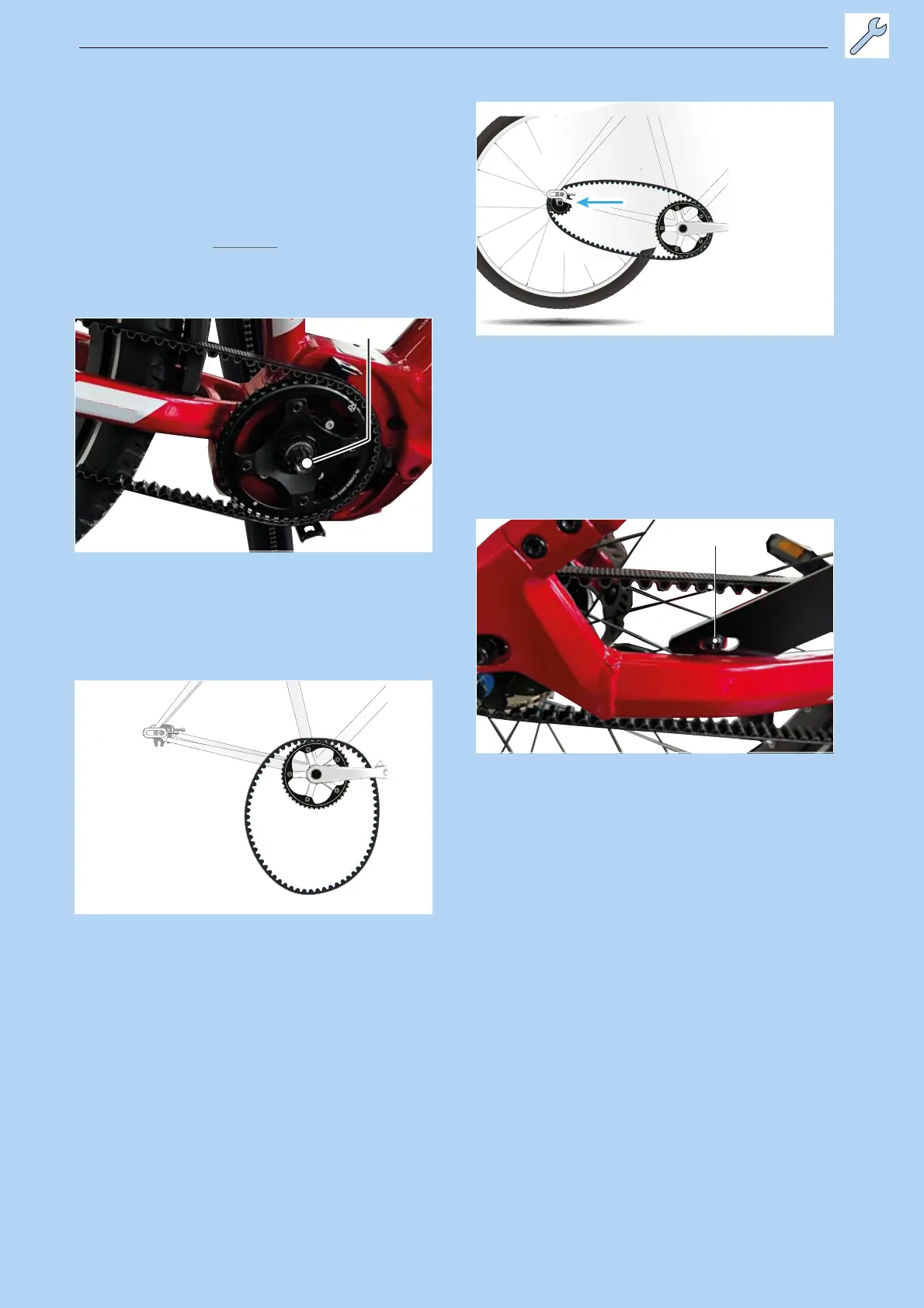

Figure 75: Fastening the belt sprocket (example)
Fitting the belt
39 Pull belt or chain over the belt sprocket or the
chain wheel.
Figure 76: Fitting the belt
40 Push the rear wheel backwards to tension the
belt or chain.
Figure 77: Pushing the rear wheel backwards
41 Check and adjust belt or chain tension (see
Section 7.5.9 or 7.5.4).
42 Fit the pedal (see Section 5.3.4).
43 Remove belt or chain guard. Fasten retaining
screw.
Figure 78: Position of mount screw
44 Insert battery (see Section 6.16).
