Brady BradyPrinter i7100 - Connections

11
User Manual
23
24
27
25
26
29
28
30
31
23 Powerswitch
24 Powerconnectionjack
25 Slot for SD card
26 2USBmasterportsforkeyboard,
scanner,USBmemorystick,Bluetooth
adapterorservicekey
27 USBfull-speedslaveport
28 Ethernet10/100Base-T
29 Serial RS-232 port
30 I/Ointerface(Option)
31 USBmasterportforkeyboard,
scanner,USBmemorystick,Bluetooth
adapterorservicekey

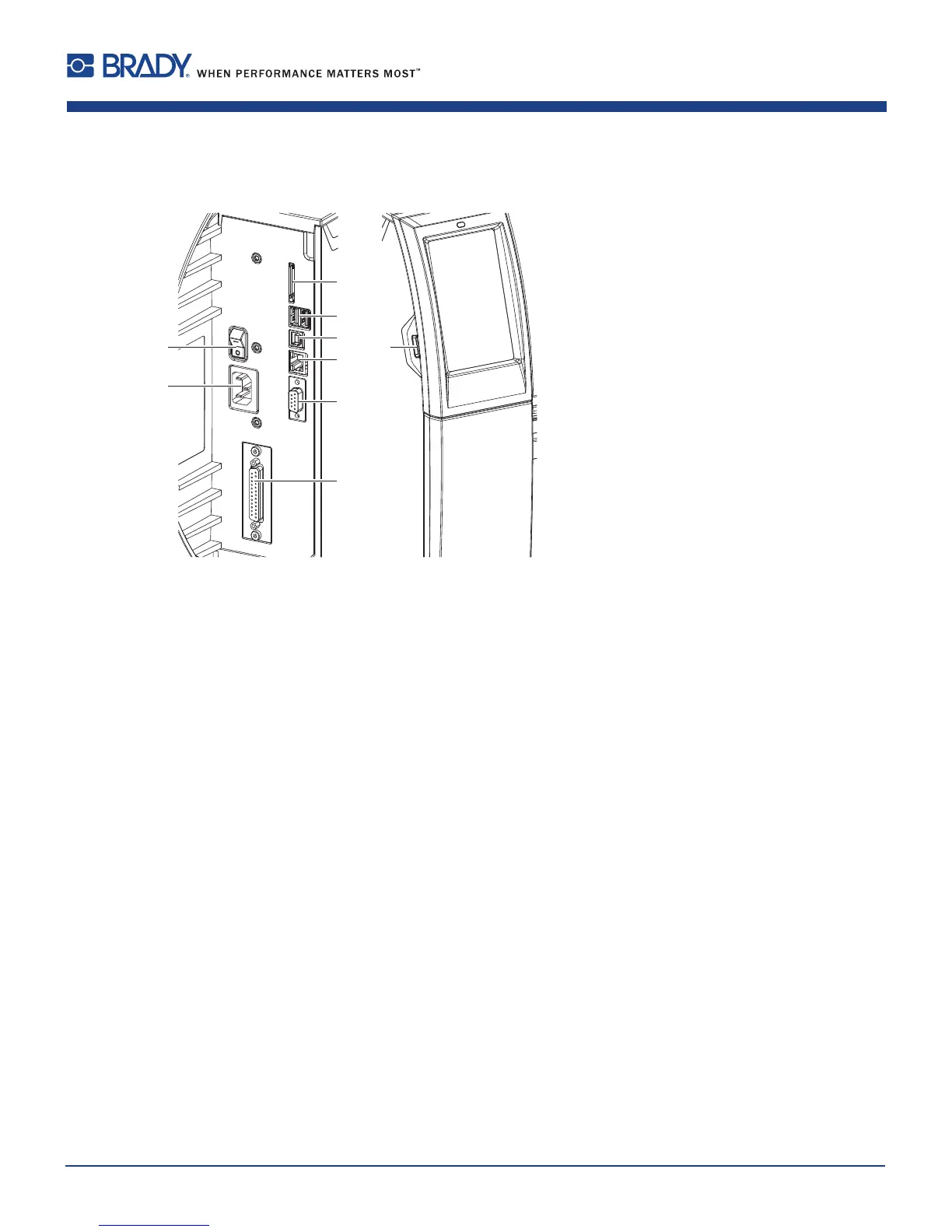

Figure3 Connections
5 Installation
