Braun Infusomat Space Service Manual

Disassembly / Assembly
3
3 - 54 Infusomat® Space 6.0 EN
3.15 Pole Clamp SP Adapter Kit
Designation Order No.
Retrofit kit Pole Clamp
*
. . . . . . . . . . . . . . . . . . . . . . . . . 3477 4390
contains:
Grid right reworked (10 pieces)
Grid left reworked (10 pieces)
VDO compression spring (40 pieces)
Straight pin 2x10 A2 (20 pieces)
Service kit Pole Clamp SP spindle with handle
†
. . . . . 3477 4383
contains:
Spindle (10 pieces)
Handle of spindle (10 pieces)
Rivet plate (10 pieces)
Note
Observe the industrial safety regulations.
Note
The service technician bears the responsibility for correct execu-
tion of the repair work.
Note
After successful installation carry out a function test.

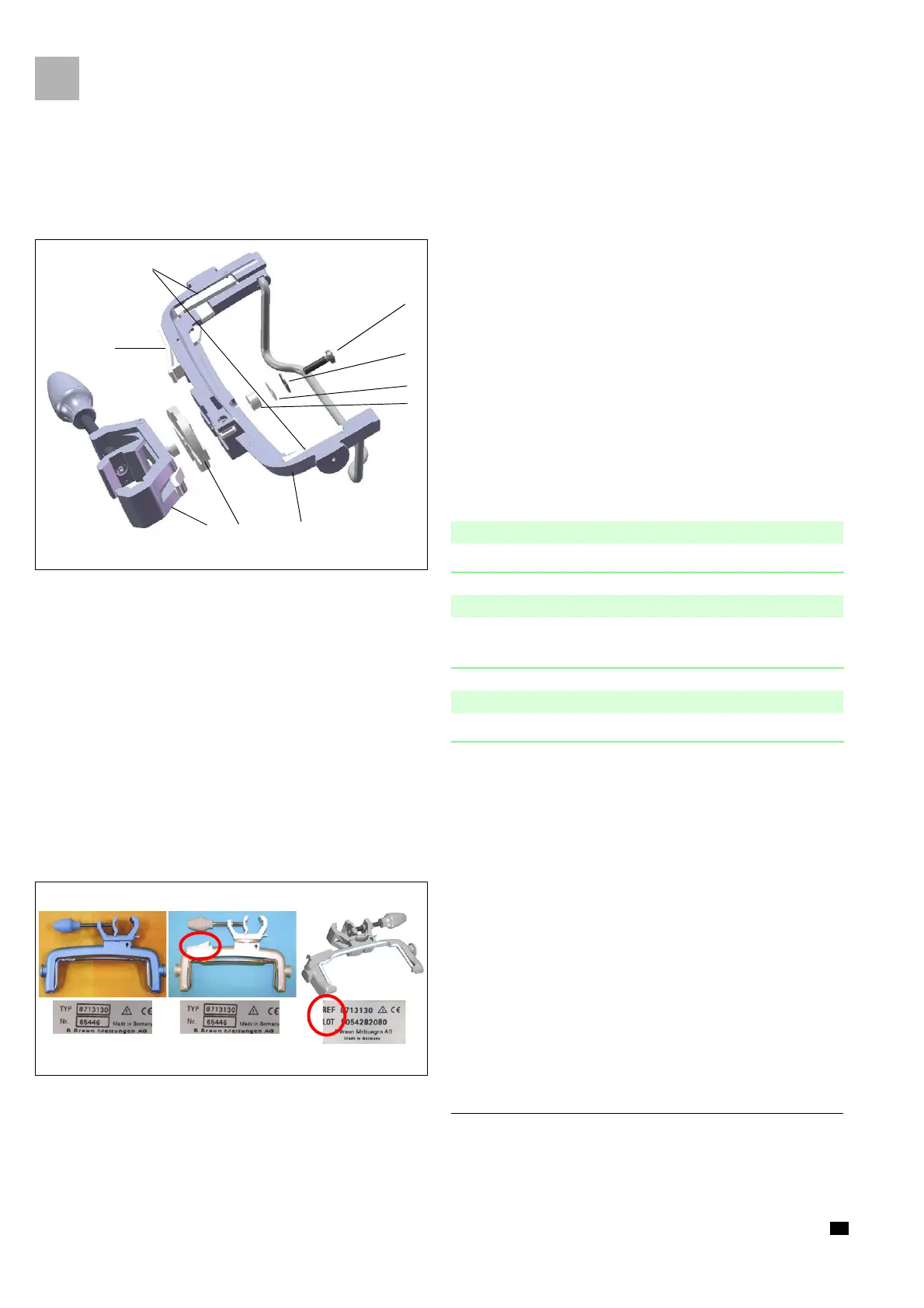

Fig.: 3 - 65
Legend of fig. 3 - 65:
Item Designation
1 Oval head screw
2 Washer (steel)
3 Washer (white)
4Sleeve
5 Guide frame
6 Flange adapter
7 Rotary profile
8 Blocking cap (PU with 1 piece, in Service Kit Pole Clamp SP)
9 Grid (PU with 5 pieces, in service kit Pole Clamp SP)
1
2
3
4
5
6
7
8
9
*
For Pole Clamp versions 1 and 2
†
For Pole Clamp versions 1 to 3 (serial number 3000 and higher)
Fig.: 3 - 66 Pole Clamp versions
Version 1 Version 2 Version 3
