Replacing a switch fabric module (FSX 800 and FSX 1600 only)
6

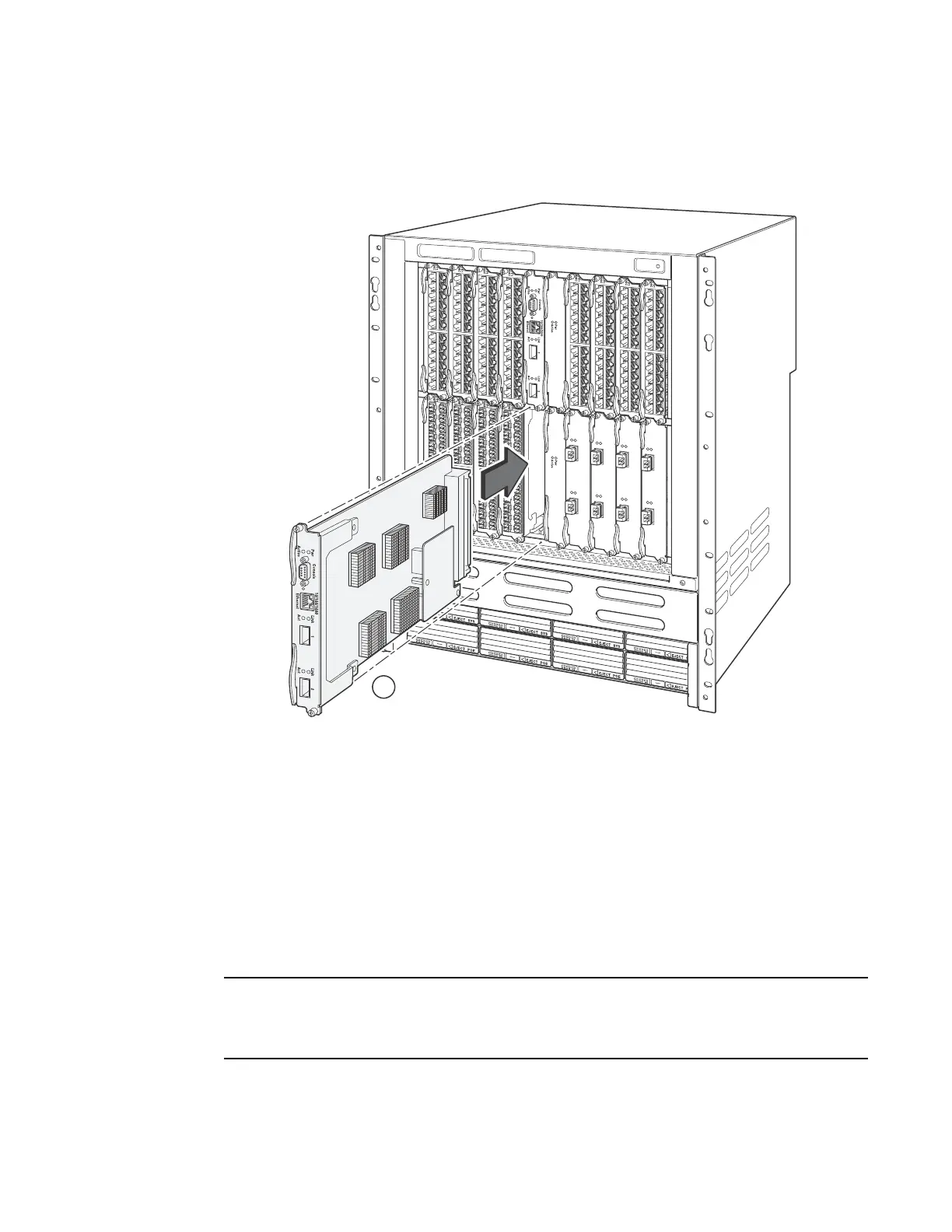

FIGURE 42 Installing a management module in the FSX 1600 chassis
Replacing a switch fabric module ( FSX 800 and FSX 1600 only)
This section provides information about the following tasks:
• Removing a switch fabric module
• Installing a new switch fabric module
NOTE
The switch fabric module is dedicated, which means that you must install it in the FSX 800 or FSX
1600 chassis only. If you attempt to install the switch fabric module in the FSX or another Brocade
chassis, the chassis and module will not function properly.
1 Management module
1
