Installing or replacing a power supply
6
6. Carefully remove the power supply from the chassis.
7. Install a new power supply in the slot. For information about performing this task, refer to
“Installing a new power supply” on page 141.
Installing a new power supply
You can order a new power supply from Brocade.
The procedures for installing a power supply differ depending on the power supply type
(replacement or original). Be sure to refer to the appropriate procedures in this section. For the
differences between replacement and original power supplies, refer to “About replacement power
supplies” on page 34.
Before beginning the installation, refer to the precautions in “Power precautions and warnings”
on page 44.
Installing a replacement power supply
For an overview of replacement power supplies (part numbers 32014-xxx and 32016-xxx), refer to
“About replacement power supplies” on page 34.
To install a replacement power supply, you need a Phillips-head or flathead screwdriver.

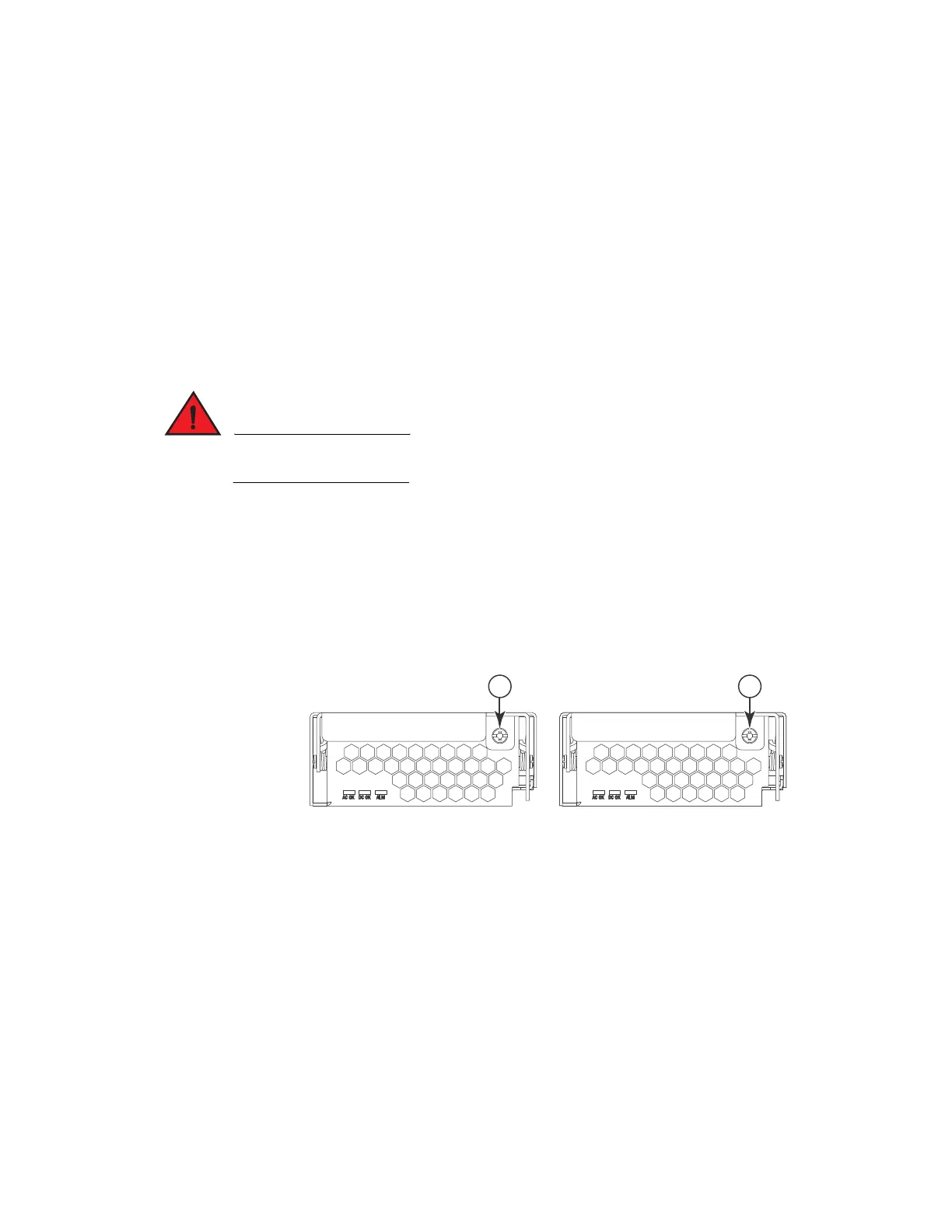

The following illustration shows the replacement power supplies.
To install a replacement power supply, perform the following tasks.
1 Latch retaining screw
2 Latch retaining screw
