Brocade FastIron X Series Chassis Hardware Installation Guide 155
53-1001723-02
Replacing the FSX 1600-ANR fan assemblies
6
3. Remove the fan from the chassis by inserting your fingers underneath the fan enclosure and
pulling the enclosure toward you as shown in Figure 56. Pulling the enclosure unseats the fan
connector from a chassis connector.
Be careful not to accidentally insert your fingers into the fan while removing it from the chassis.
The fan may still be spinning at a high speed.

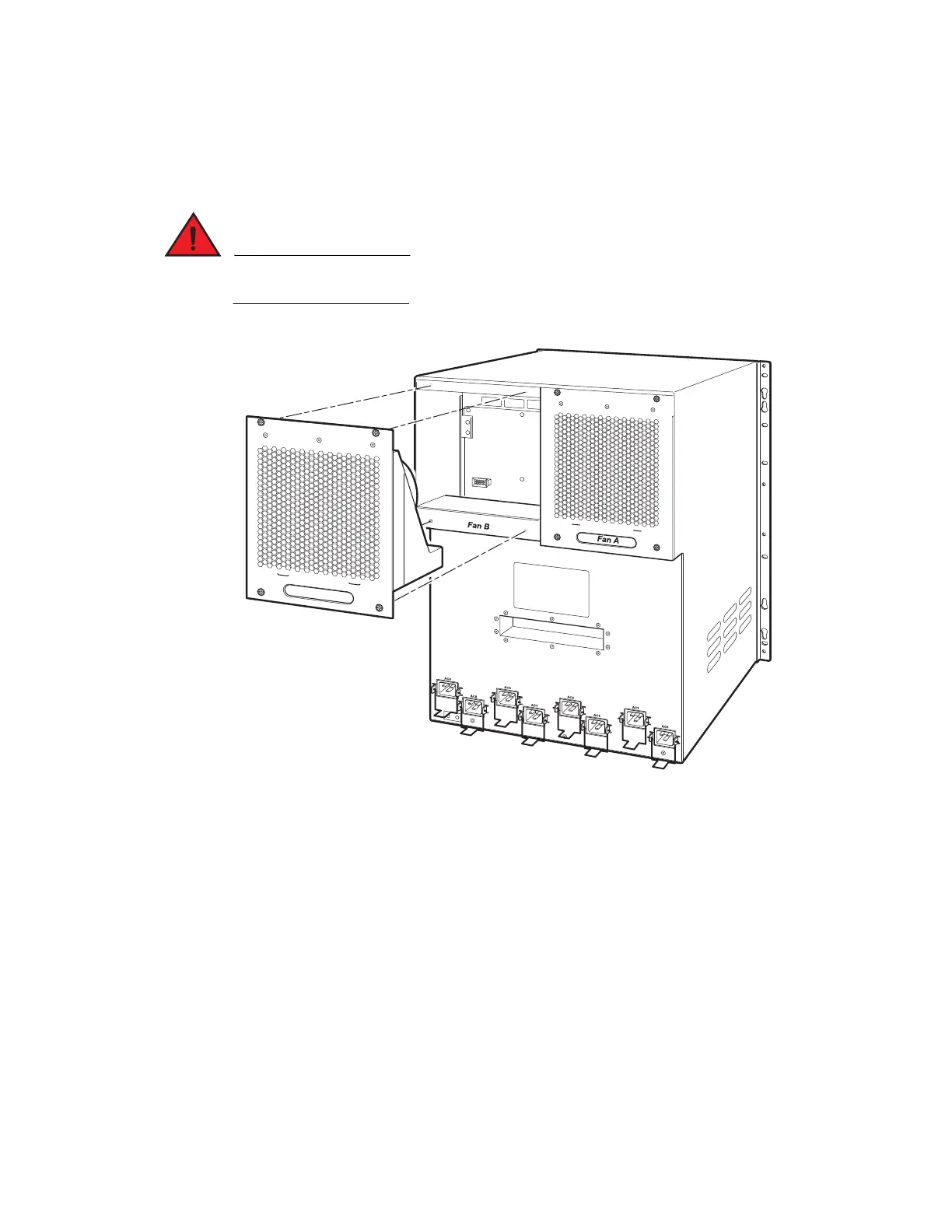

FIGURE 56 Removing a fan assembly from the FSX 1600 chassis
4. Insert the new fan assembly into the fan slot and push the enclosure in until the face plate is
flush with the chassis. Pushing the enclosure in seats the fan connector with the chassis
connector.
5. Secure the fan to the chassis by tightening the four captive screws.
6. Access the CLI, and enter the show chassis command to verify that both fans are operating
normally.
Replacing the
FSX 1600
-ANR fan assemblies
The FSX 1600-ANR chassis has two fan assemblies, both accessible from the rear. Each assembly
has a fan which pulls warm air out of the chassis.
You can remove and replace a fan assembly while the FSX 1600-ANR chassis is powered on and
running.
