156 Brocade FastIron X Series Chassis Hardware Installation Guide
53-1001723-02
Replacing the FSX 1600-ANR fan assemblies
6
To replace the fan tray, you need the following:
• A new fan assembly, which you can order from Brocade
• An ESD strap (provided with the fan assembly kit) or an ESD wrist strap with a plug for
connection to the ESD connector on the chassis
• In addition to the above, you might also need a #2 Phillips-head screwdriver
For safety reasons, the ESD wrist strap should contain a series 1 meg ohm resistor.
To replace a fan assembly, perform the following tasks.
1. Put on the ESD wrist strap and ground yourself by inserting the plug into the ESD connector
located in the top right corner of the chassis front.
2. Using the flathead screwdriver, loosen the two captive screws that secure the fan (marked
“Fan A” or “Fan B”) to the chassis rear.
3. Remove the fan from the chassis by pulling the enclosure toward you as shown in Figure 57.
Pulling the enclosure unseats the fan connector from a chassis connector.
Be careful not to accidentally insert your fingers into the fan while removing it from the chassis.
The fan may still be spinning at a high speed.

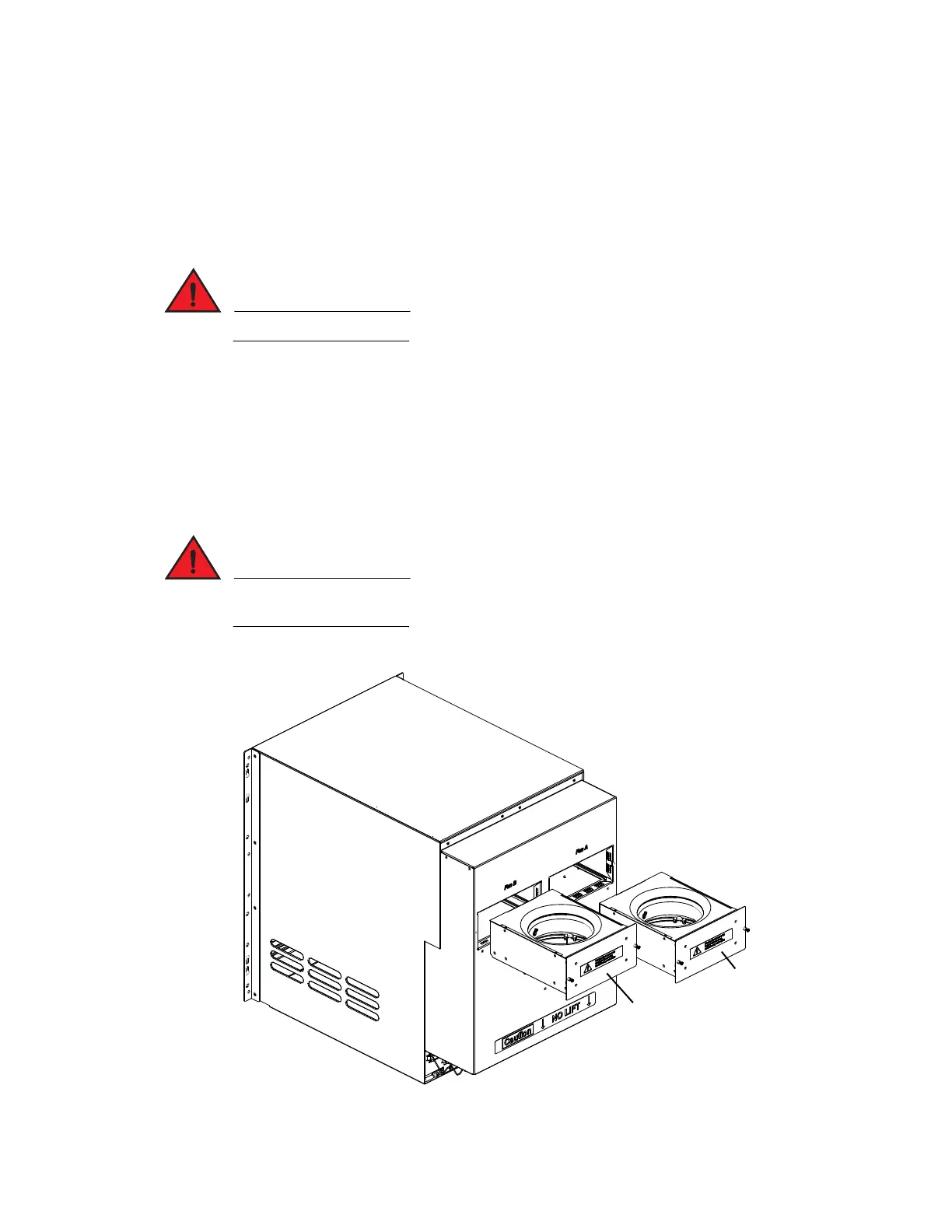

FIGURE 57 Removing a fan assembly from the FSX 1600-ANR chassis
Fan A
Fan B
