Hardware features
1
FSX 1600 chassis
There are two versions of the FSX 1600 chassis:
• FSX 1600 – Part numbers for chassis and bundles begin with FI-SX-1600-xxx.
• FSX 1600 Acoustic Noise-Reduced (ANR) – An enhanced version of the FSX 1600 chassis, part
numbers for chassis and bundles begin with FI-SX-1600-ANR-xxx.
This section describes the similarities between these models. For details about how these models
differ, refer to “FSX 1600-ANR chassis” on page 12.
Except where explicitly noted throughout this manual, the FSX 1600 and FSX 1600-ANR chassis are
collectively referred to as the FSX 1600 chassis.
The FSX 1600 and FSX 1600-ANR chassis are 14 rack units in height and consist of the following:
• Two half slots for the management modules
• Two half slots for the switch fabric modules
• Sixteen half slots for the interface modules
• Eight slots for power supplies along the bottom of the card shelf
Figure 5 shows the front of the FSX 1600 chassis. The front of the FSX 1600-ANR chassis is
identical to the front of the FSX 1600 chassis.

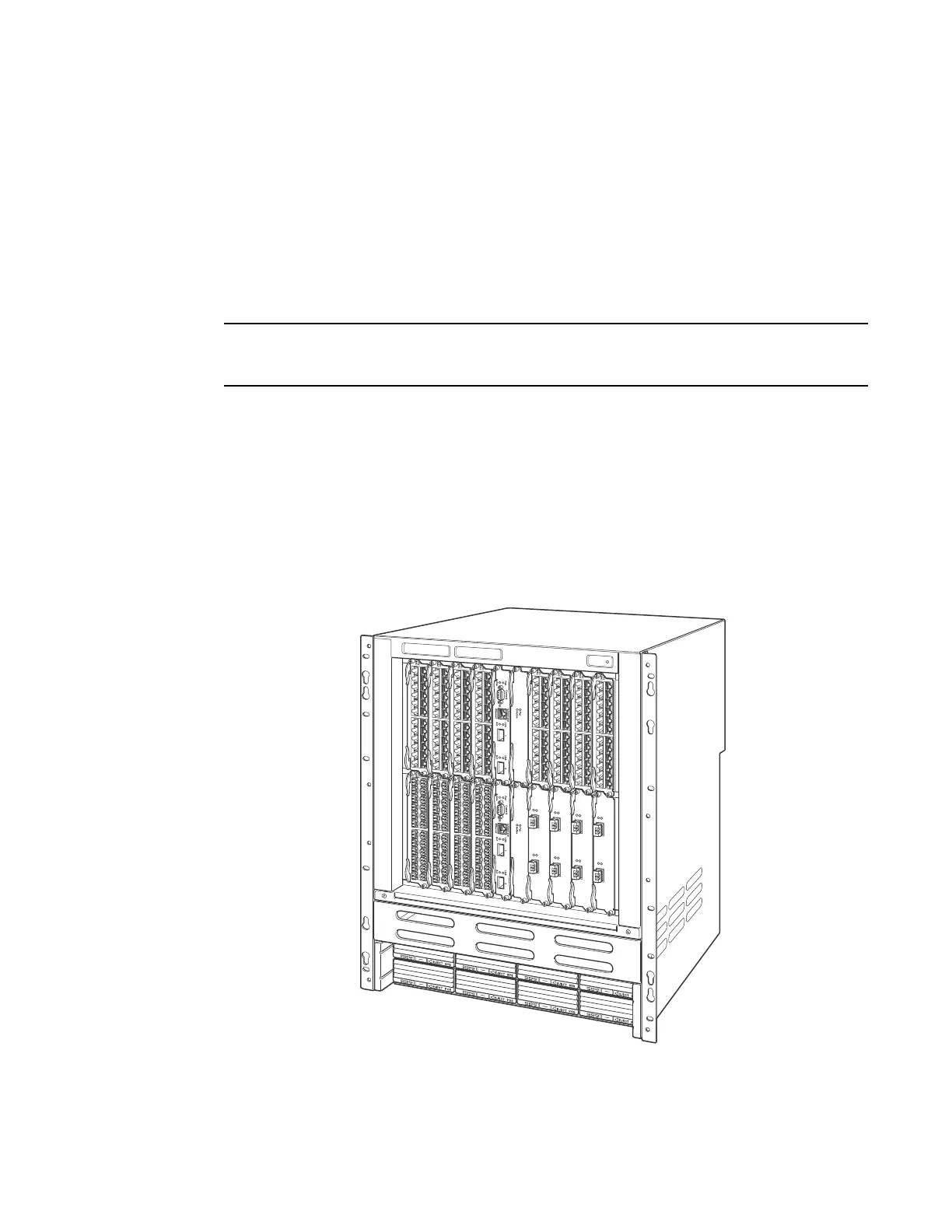

FIGURE 5 FSX 1600 chassis front
Upon shipment from the factory, the following components are installed in the chassis:
