Brocade Communications Systems FastIron X Series Hardware Installation Guide

Brocade FastIron X Series Chassis Hardware Installation Guide 77
53-1001723-02
Connecting network devices
3
NOTE
The 802.3ab standard (automatic MDI or MDIX detection) calls for automatic negotiation of the
connection between two 1000Base-T ports. Therefore, a crossover cable may not be required; a
straight-through cable may work as well. For more information about this feature, refer to the
FastIron Configuration Guide.

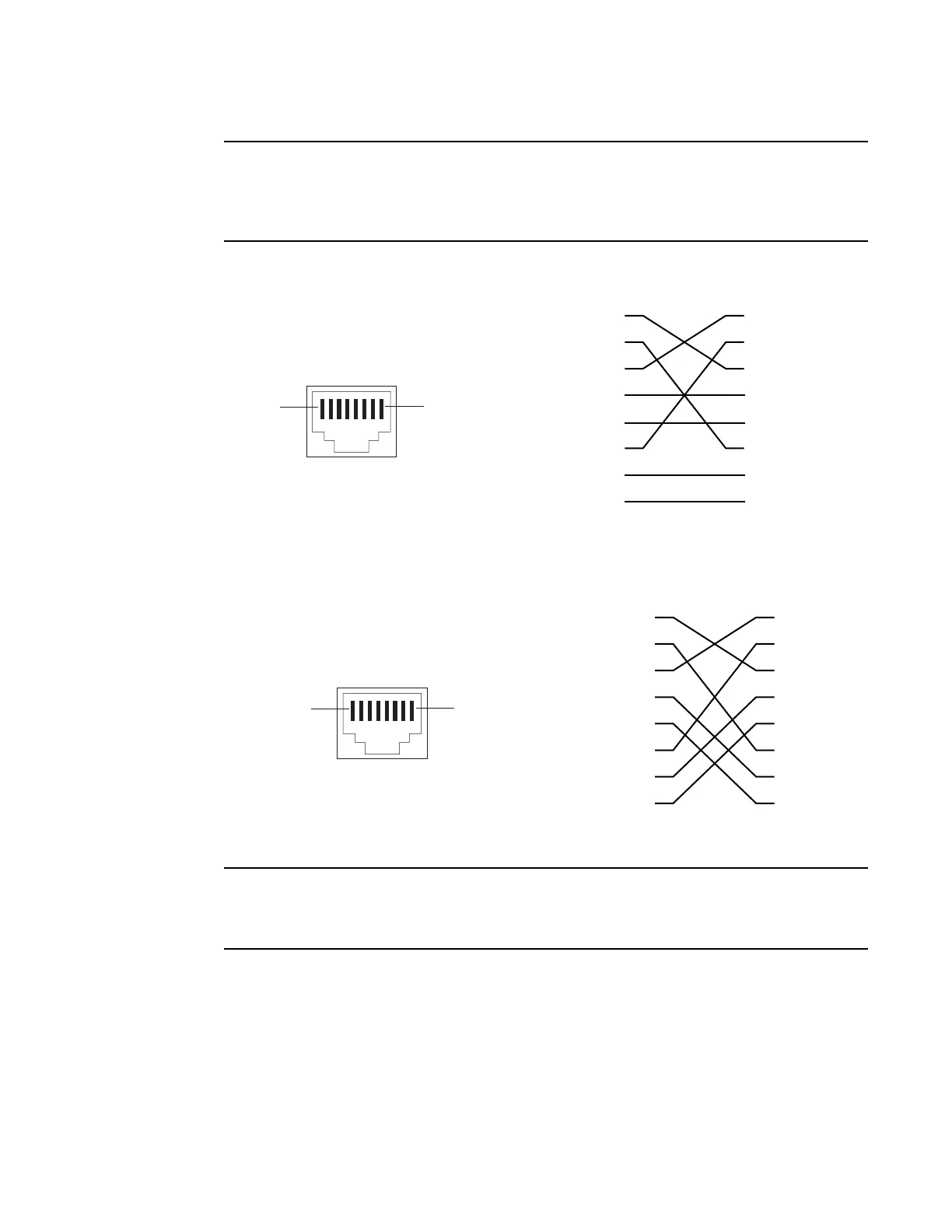

FIGURE 36 UTP crossover cable
FIGURE 37 Cat-5 crossover cable for 1000Base-T
NOTE
The 802.3ab standard calls for automatic negotiation of the connection between two 1000Base-T
ports. Consequently, a crossover cable may not be required; a straight-through cable may work as
well.
11
22
33
66
4
5
7
11
22
33
6
8
44
5
7
8
1
8
UTP Crossover Cable 10/100BaseTX
- Unused
Unused - - Unused
Unused -
Unused -
Unused -
- Unused
- Unused
11
22
33
66
88
44
5
7
5
7
1
8
Cat-5 Crossover Cable 1000BaseT
