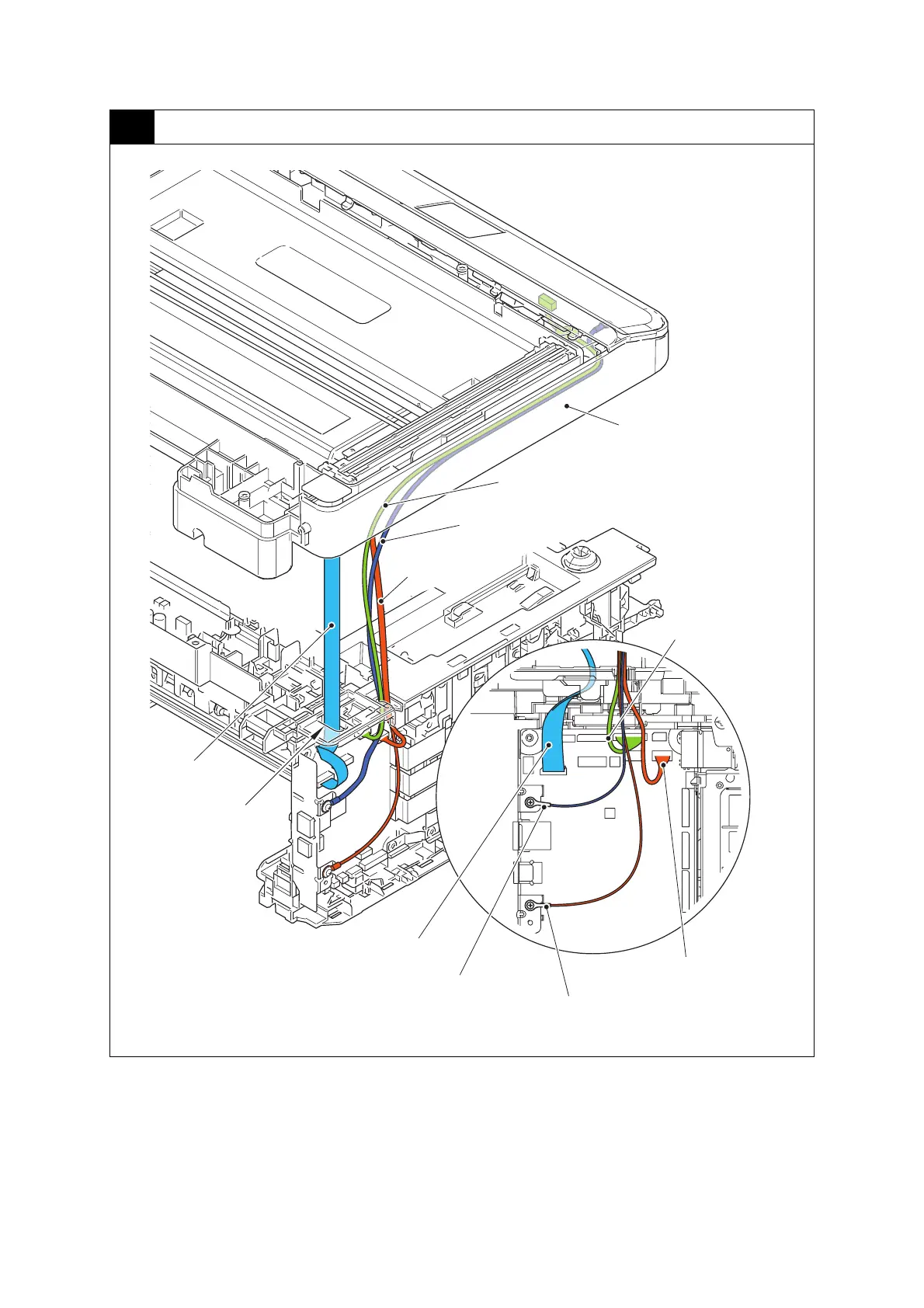

13 Document scanner unit - Main PCB ASSY

Harness colors are subject to change for some reason.

First side CIS flat cable

Document scanner unit

Panel harness (WH)

Hole

Panel FG harness (GN)

Document scanner FG harness (BK)

Document scanner

motor harness (WH)

Panel FG harness (GN)

First side CIS flat cable

Panel harness (WH)

FB harness

unit (WH)
