Brother DCP-L5600DN Service Manual

2-120
Confidential

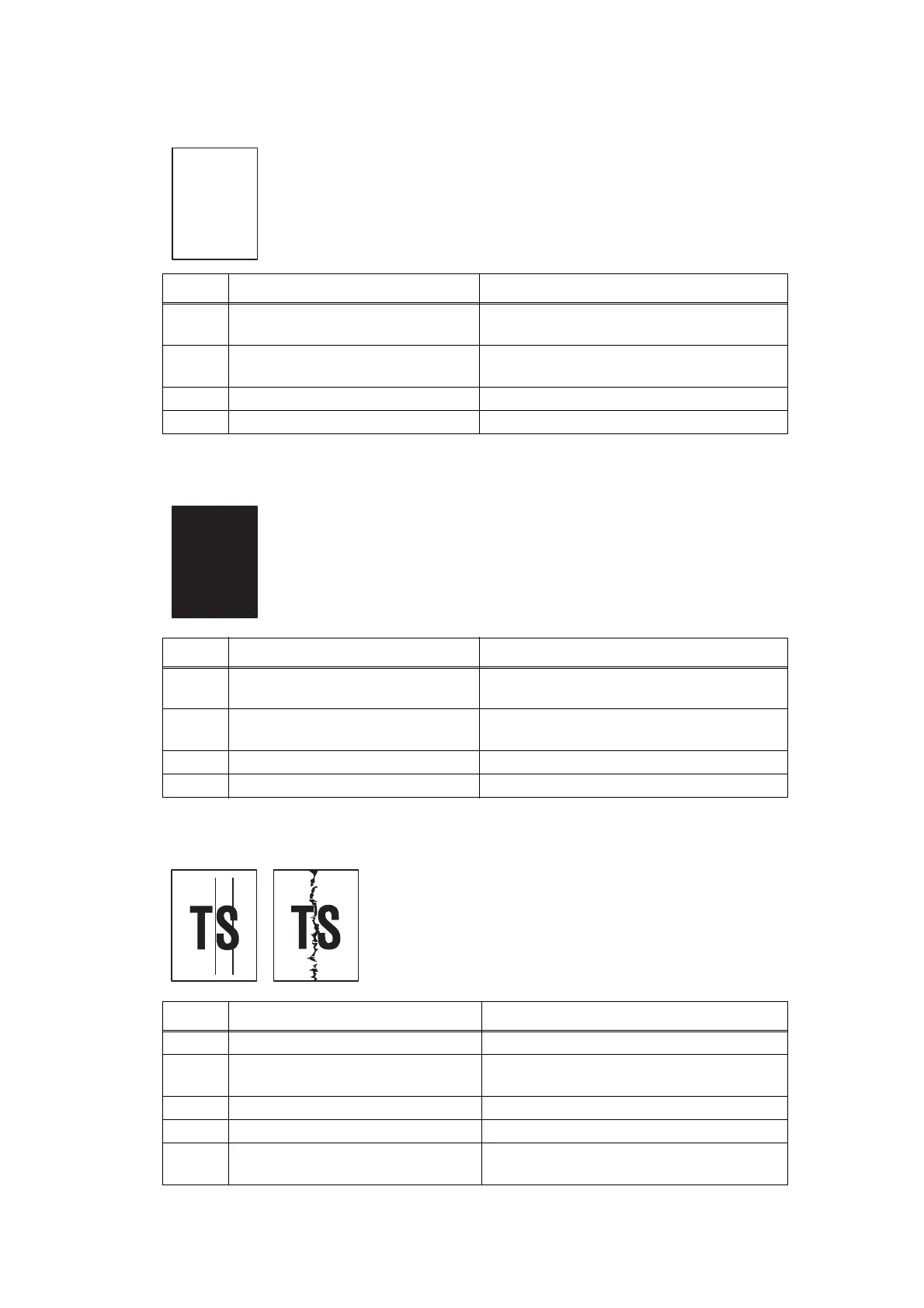

 Completely blank
 All black
 Vertical streaks
<User Check>
• Check that the document is not reversed.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2
First or second side CIS flat cable
failure
Replace the first or second side CIS flat
cable.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Main PCB failure Replace the main PCB ASSY.
<User Check>
• Install all the latest firmwares.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2
First or second side CIS flat cable
failure
Replace the first or second side CIS flat
cable.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Main PCB failure Replace the main PCB ASSY.
<User Check>
• Clean the scanner glass or first side/second side
scanner glass strip.
• Clean the document hold.
Step Cause Remedy
1 Dirt inside of scanner glass Clean the inside of the scanner glass.
2
Dirt inside of first side/second side
scanner glass strip
Clean the inside of the first side/second side
scanner glass strip.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Scratch on scanner glass Replace the document scanner unit.
5
Scratch on second side scanner
glass strip
Replace the ADF unit.

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
