Brother DCP-L5600DN Service Manual

3-80
Confidential
9.20 Laser unit
(1) Remove the two taptite bind B M4x12 screws, and remove the top bar. (Models with
520-sheet T1 only)
(2) Disconnect the laser unit flat cable from the laser unit, and release it from the securing
fixtures.
(3) Remove the four taptite cup S M3x8 SR screws, and remove the laser unit.

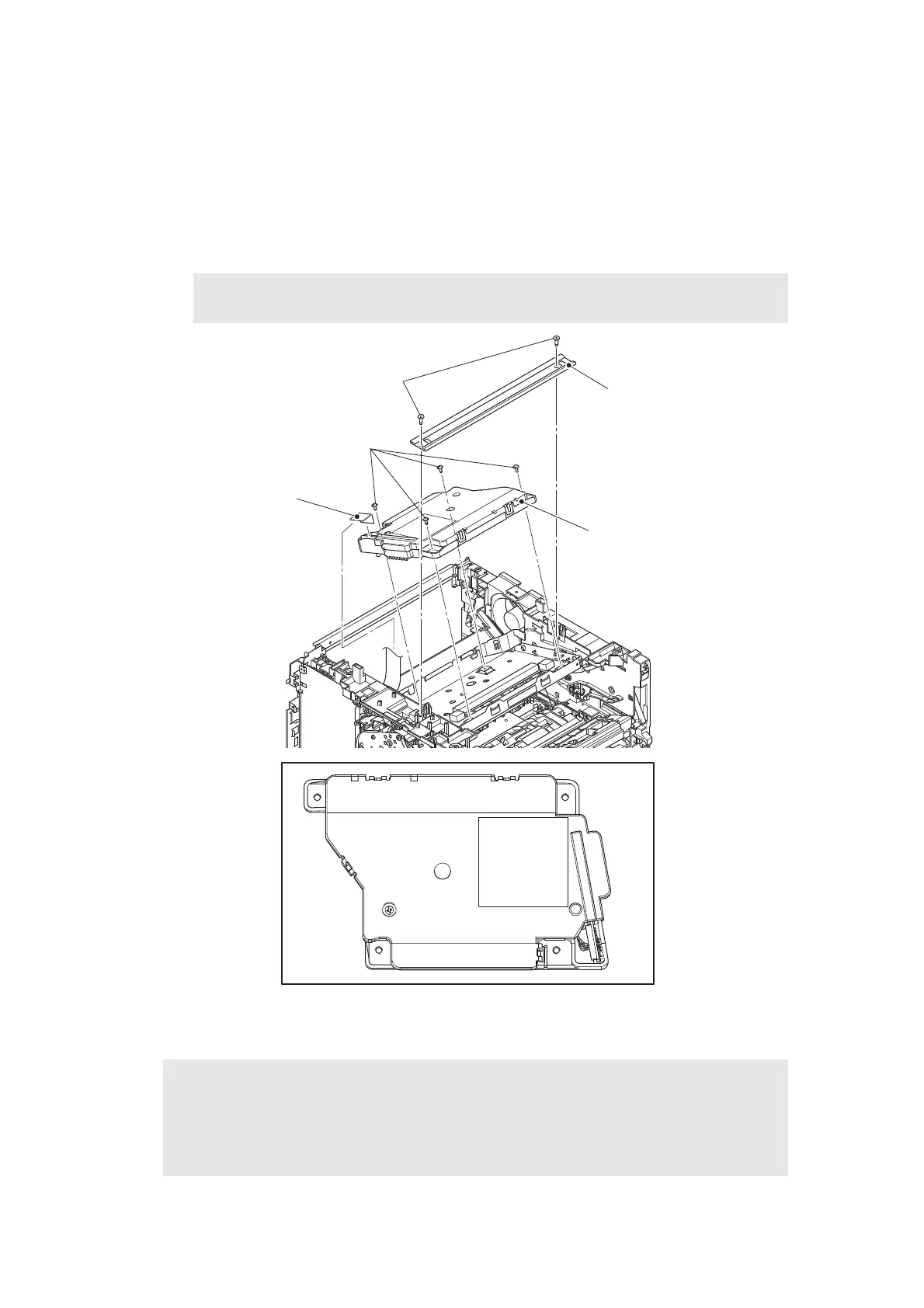

Fig. 3-78
Harness routing: Refer to “10. Left side of the machine”, “11. Rear side of the machine”.
Note:
• Be careful not to touch the lens of the laser unit.
Assembling Note:
• When attaching the laser unit, tighten the screws in the following order: upper right,
lower right, lower left and upper left.
• When connecting flat cables, do not insert them at an angle. After insertion, check that
the cable is not at an angle.
Laser unit flat cable
Laser unit
1
2
3
4
Top bar
(Models with 520-sheet T1 only)
Taptite bind B M4x12
Taptite cup S M3x8 SR

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
