Brother DCP-L5600DN Service Manual

3-103
Confidential
9.35 Fuser drive gear 39

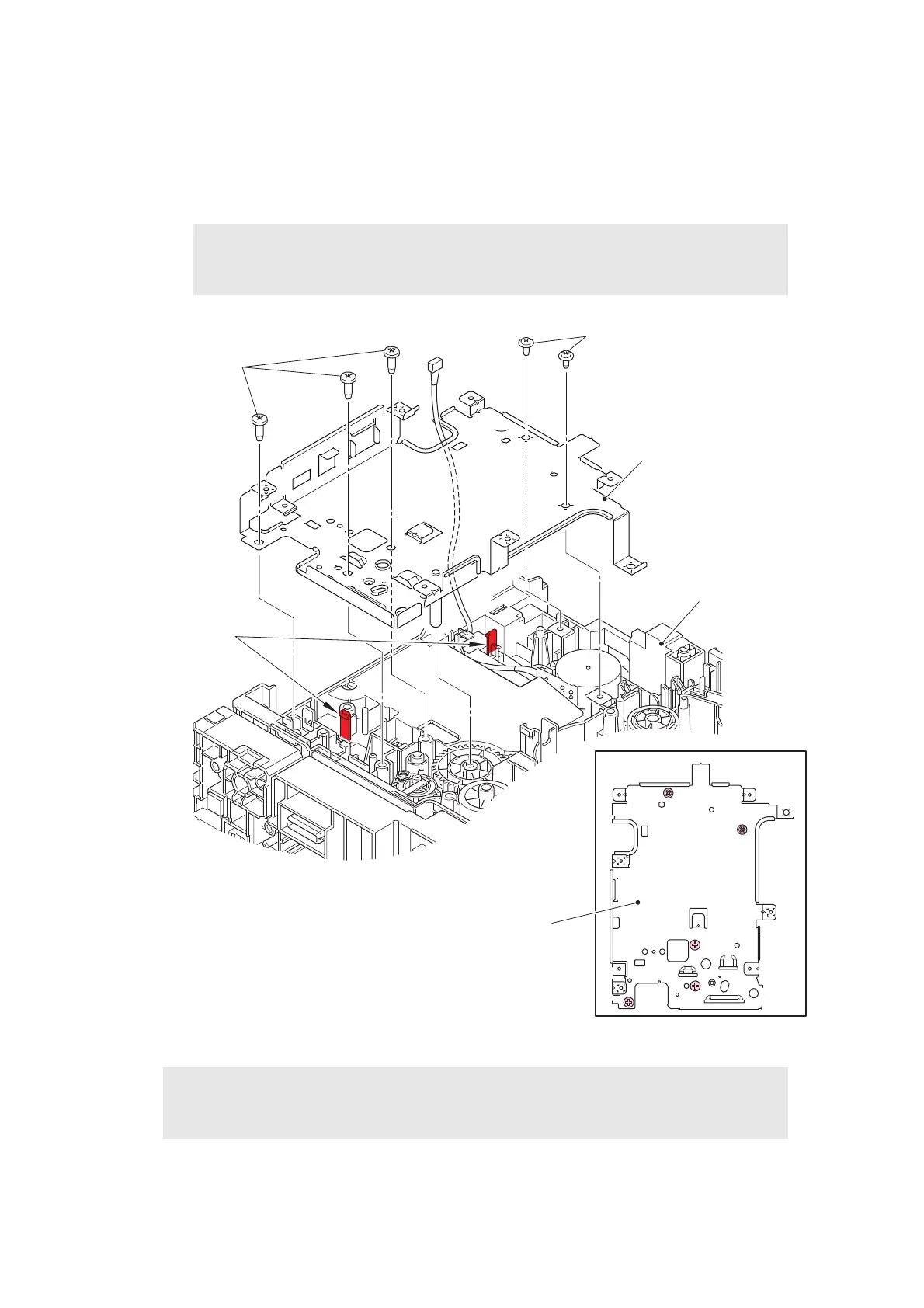

(1) Remove the three taptite bind B M4x12 screws and two taptite cup S M3x8 SR screws.
Release the two hooks to remove the main PCB shield calking ASSY from the main
frame L ASSY.
Fig. 3-103
Note:
• Do not allow the metallic gear shaft of the main PCB shield calking ASSY to face
down. Failure to observe this may cause the steel plate to bend.
Assembling Note:
• When securing the main PCB shield calking ASSY with screws, tighten the screws in
the sequence of the numbers engraved on the main PCB shield calking ASSY.
Taptite cup S M3x8 SR
Taptite bind B
M4x12
Main PCB shield calking ASSY
Main frame L ASSY
Hooks
2
4
1
3
Main PCB shield calking ASSY
5

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
