Brother DCP-L5600DN Service Manual

3-56
Confidential
9.12 Panel unit
9.12.1Panel unit
(1) Remove the four taptite cup B M3x10 screws.
(2) Release the three hooks to remove the panel unit. Disconnect the panel flat cable from
the panel PCB ASSY.
(3) Release the panel flat cable from the securing fixtures.

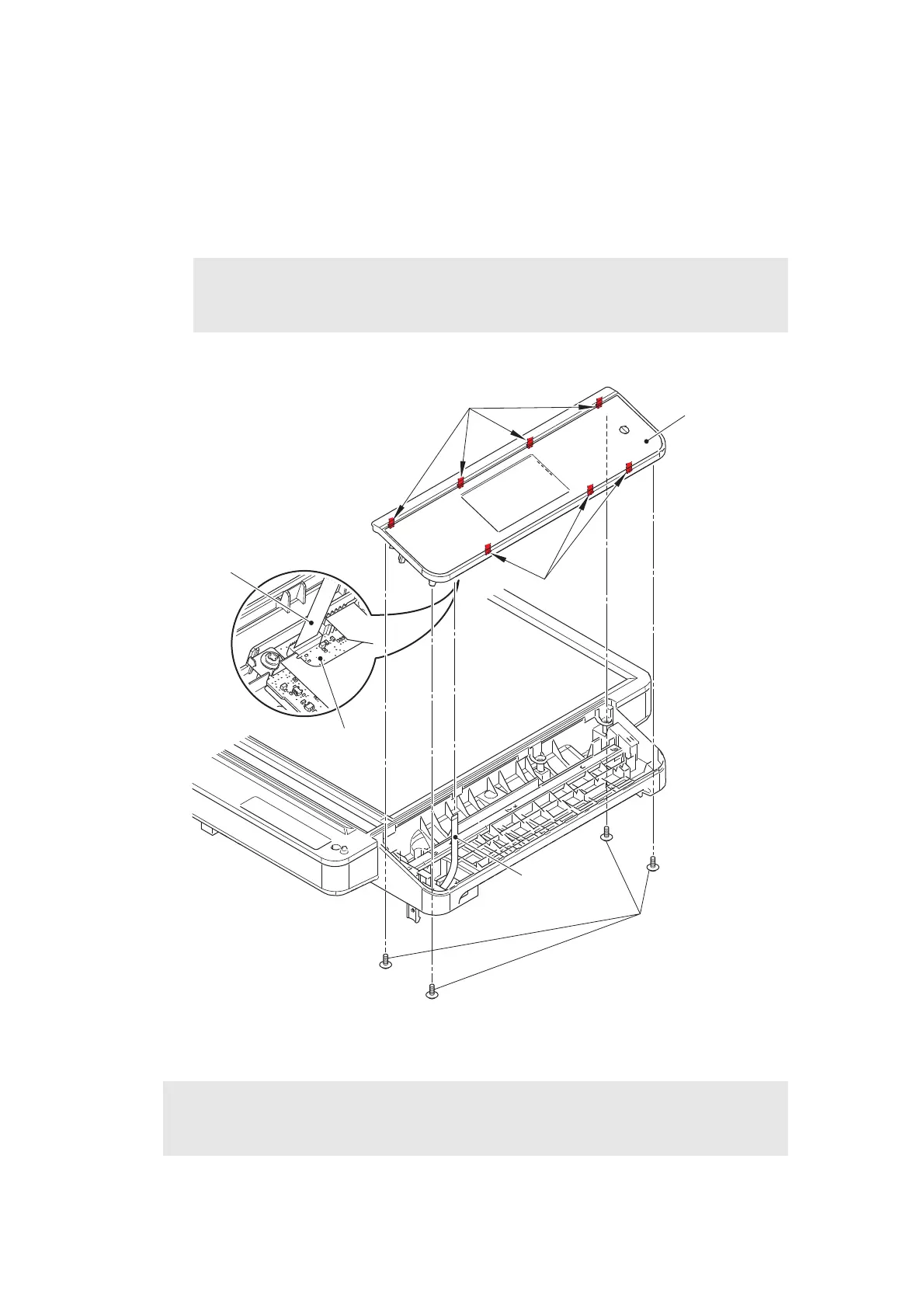

Fig. 3-50
Harness routing: Refer to “5. Document scanner unit”, “6. Panel unit (4.85 inch model)”.
Note:
• Flat cable is connected to the panel unit. Do not pull the panel unit too hard when
removing it.
Assembling Note:
• If you replaced the panel unit, refer to “4. IF YOU REPLACE THE LCD PANEL ASSY
OR PANEL PCB” in chapter 4 and configure the setting.
Panel unit
Hooks
Hooks
Taptite cup B M3x10
Panel PCB ASSY
Panel flat cable
Panel flat cable

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
