Brother DCP-L5600DN Service Manual

3-112
Confidential
9.41 MP roller holder ASSY / MP separation pad ASSY /
MP separation pad spring
(1) Open the MP roller cover. Release the hook on the MP holder bushing, and slide the MP
holder bushing in the direction of the arrow 1.
(2) Slide the MP roller holder ASSY in the direction of the arrow 2a to remove it from the MP
separation roller shaft. Then push the MP lift arm in the direction of the arrow 2b to
remove the MP roller holder ASSY.
(3) Push the MP lift arm in the direction of the arrow 2b. Raise the MP separation pad ASSY
to the 50-degree position, and remove it in the direction of the arrow 3.
(4) Remove the MP separation pad spring.

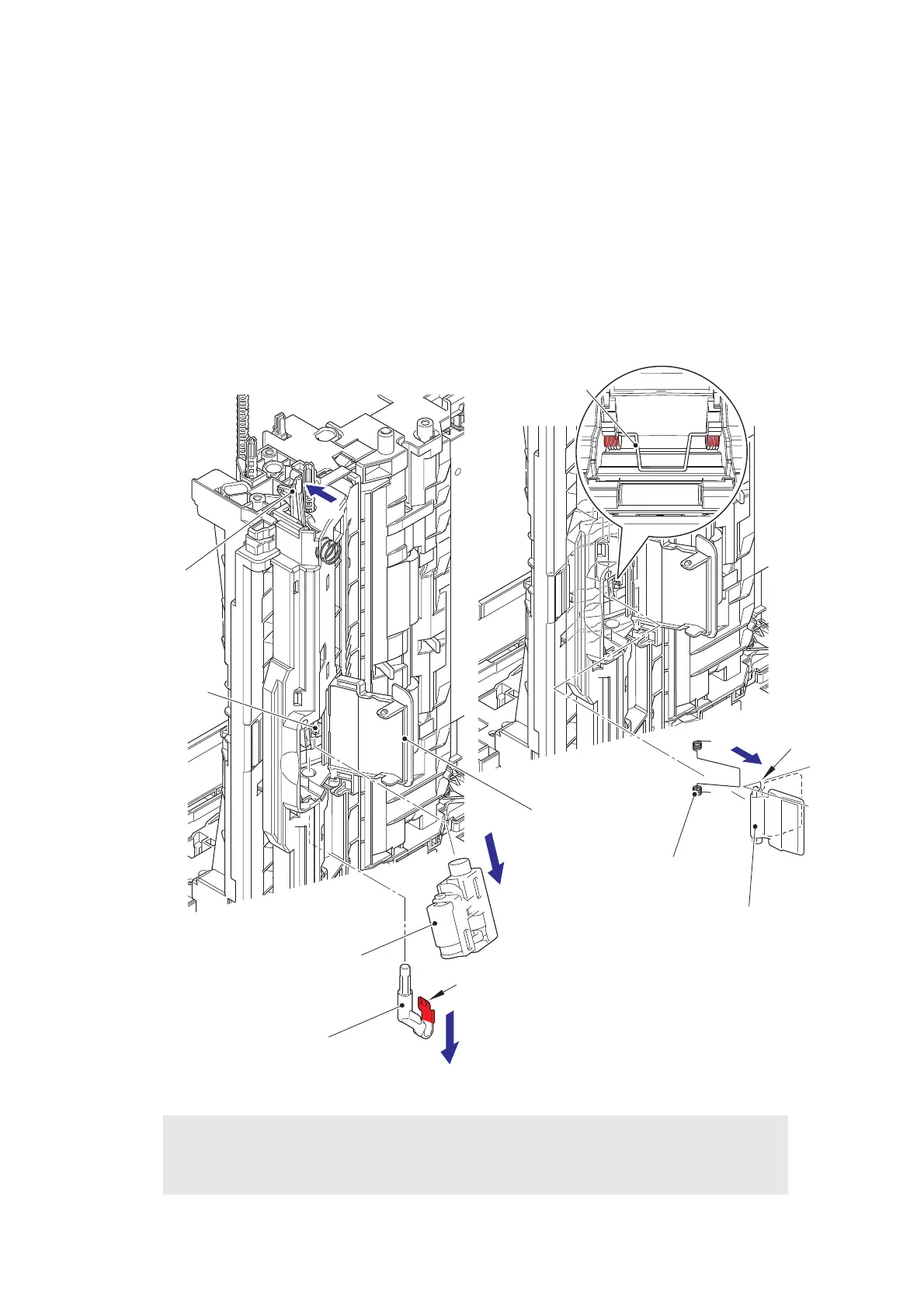

Fig. 3-113
Assembling Note:
• Attach the MP roller holder ASSY while pushing the MP separation pad ASSY.
• Attach the MP separation pad spring as described in the figure above.
MP separation pad ASSY
Hook
MP separation pad spring
MP holder bushing
MP roller holder ASSY
MP lift arm
MP roller cover
1
2b
2a
MP separation
roller shaft
3
50°
MP separation pad spring

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
