Brother DCP-L5600DN Service Manual

3-77
Confidential
9.18 Main PCB ASSY /
Wireless LAN PCB (Wireless LAN models only)

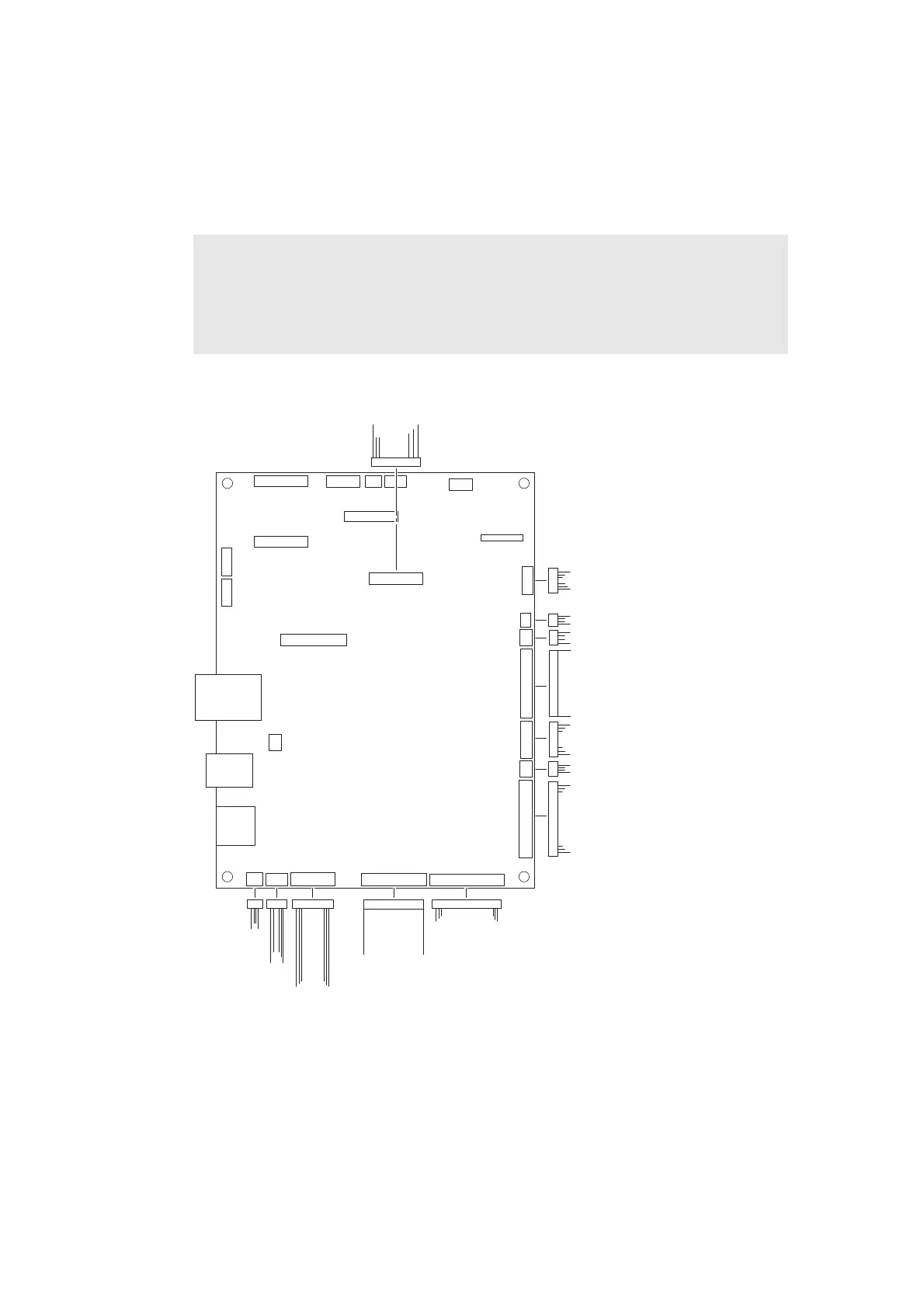

(1) Disconnect all harnesses and flat cables from the main PCB ASSY.
Release each harness and flat cable securing fixture from veil cover lower.
Fig. 3-75
Harness routing: Refer to “10. Left side of the machine”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
shortcircuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cable is not at an angle.
Relay front harness
Paper feed motor harness
HVPS flat cable
LT/TT connector harness
External temperature/humidity
sensor harness
Back cover/duplex
tray sensor harness
Toner amount detection sensor
PCB harness (light emission)
Internal temperature sensor harness
Paper empty sensor harness*
Laser unit flat cable
Low-voltage power supply harness
Erase lamp harness*
Eject sensor harness
* Models with 520-sheet T1 only

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
