Brother DCP-L5600DN Service Manual

3-35
Confidential
9.6 MP cover ASSY

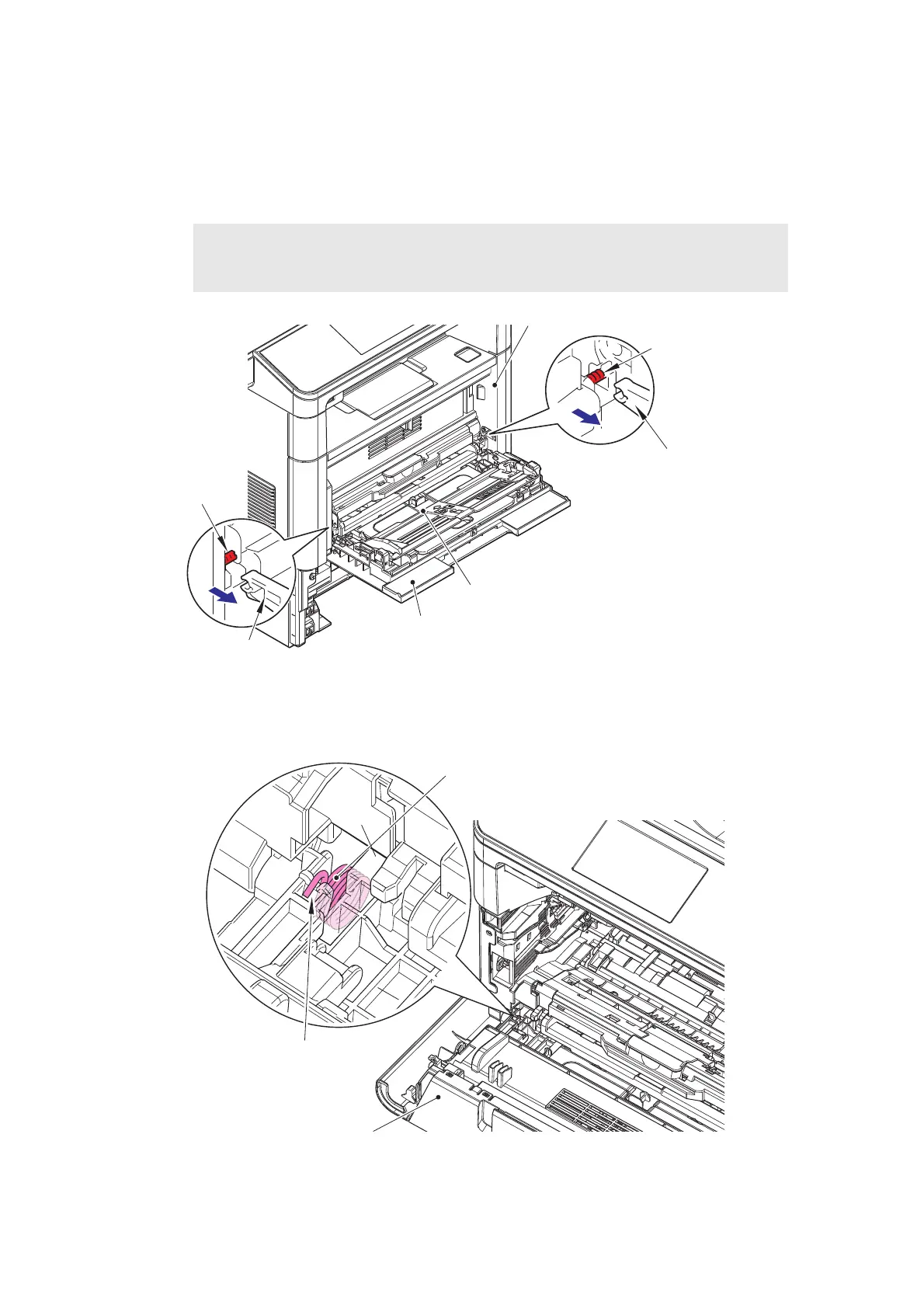

(1) Open the MP cover ASSY.
(2) Remove the two hooks on the MP paper guide ASSY from the two bosses on the front
cover ASSY.
Fig. 3-22
(3) Open the front cover ASSY, and release the hook on the MP damper spring from the
front cover ASSY.
Fig. 3-23
Note:
• When removing the MP paper guide ASSY from the bosses on the front cover
ASSY, pull it out strongly in the direction of the arrows.
Front cover ASSY
Boss
MP paper guide ASSY
MP cover ASSY
Hook
(MP paper
guide ASSY)
Boss
Hook
(MP paper guide ASSY)
MP damper spring
Front cover ASSY
Hook

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
