Brother DCP-L5600DN Service Manual

3-43
Confidential
9.11 ADF unit
9.11.1ADF unit
(1) Remove the taptite bind B M4x12 screw (black) from the hinge L ASSY.
(2) Open the ADF unit. Lift the ADF unit and release each hook to remove the flat cable
holder from the document scanner unit.
(3) Lift the ADF unit to remove the ADF unit from the document scanner unit while pressing
the hinge R hook. Pull out each harness from the hole.
(4) Release the ADF sensor harness and second side CIS flat cable* from the flat cable
holder.

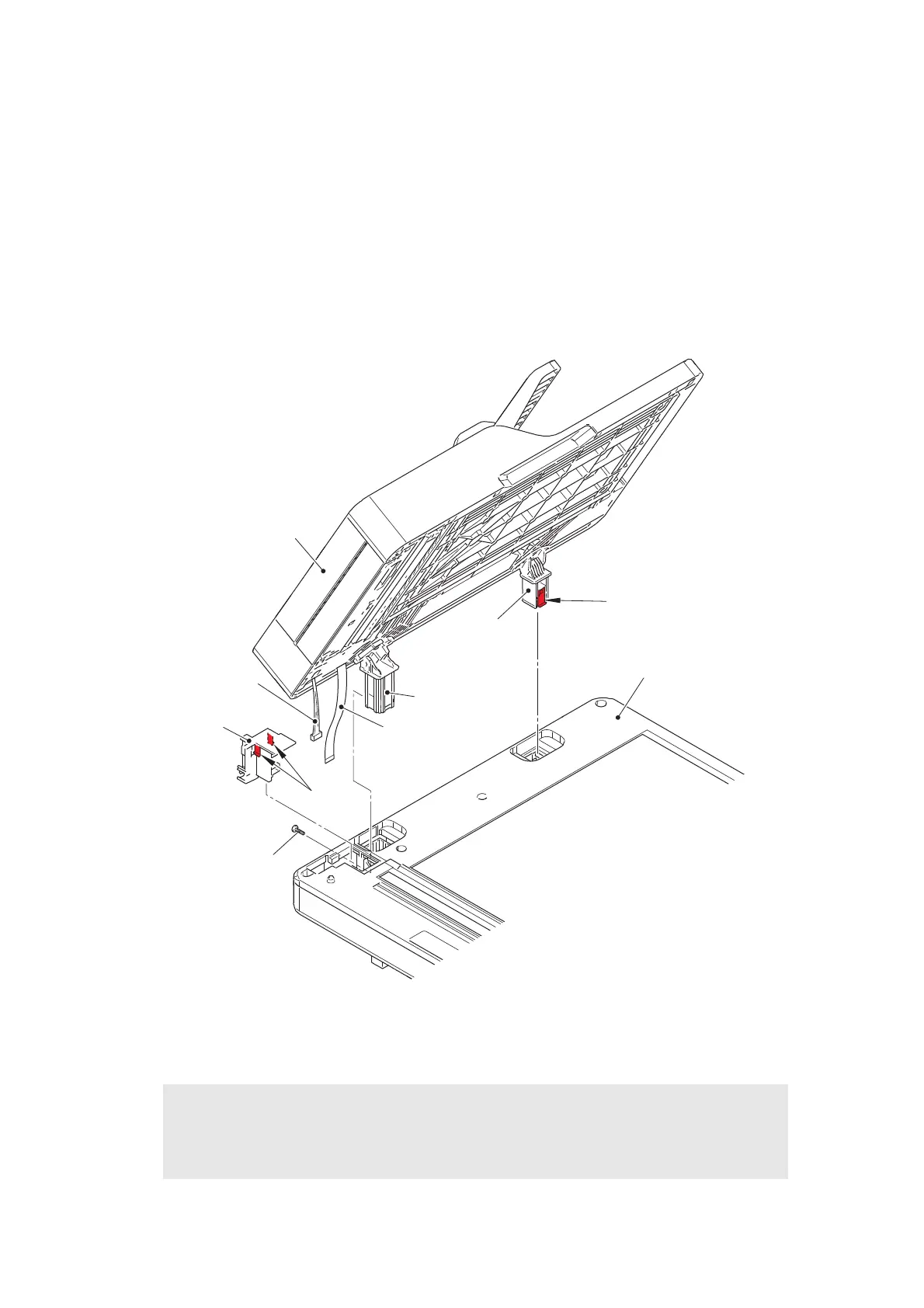

Fig. 3-33
Harness routing: Refer to “1. ADF unit - Main PCB ASSY”.
Assembling Note:
• If you replaced the ADF unit, refer to “5. IF YOU REPLACE THE ADF UNIT, FIRST
SIDE CIS UNIT, SECOND SIDE CIS UNIT OR DOCUMENT SCANNER UNIT” in
chapter 4 and configure the setting.
Hook
Document scanner unit
Hinge L ASSY
Hinge R
ADF unit
Flat cable holder
Taptite bind B
M4x12 (black)
Hooks
ADF sensor harness
Second side
CIS flat cable*
* Models with duplex scanning only

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
