Brother DCP-L5600DN Service Manual

2-5
Confidential
2.1.2 Scanner part
 Common to Legal / A4 models

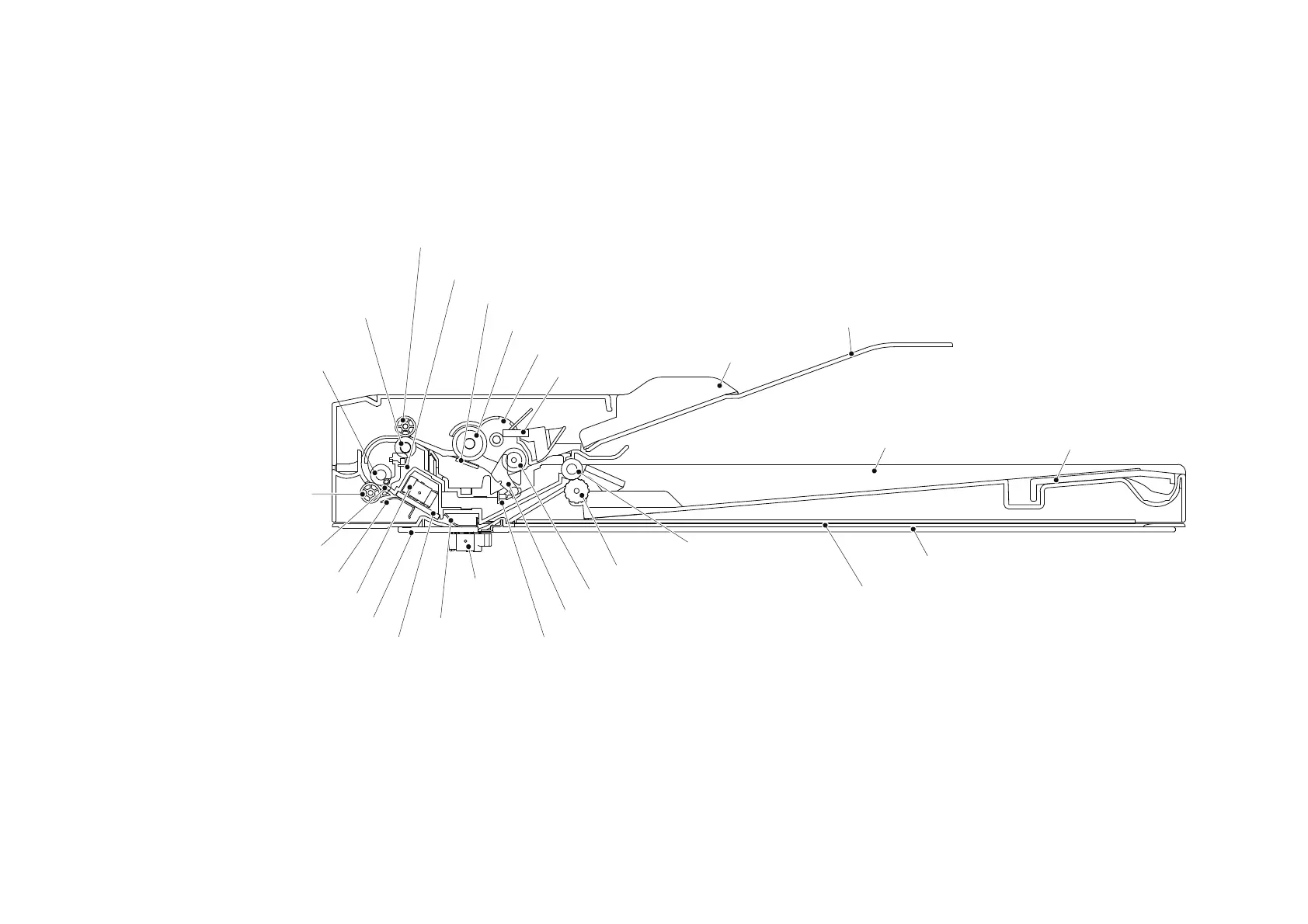

Fig. 2-3
Document feed roller 1
Document pinch roller 1
Document separation pad
Document feed roller 2
Document pinch roller 2
Document scanning position actuator
Document scanning position sensor PCB
Second side document hold
Second side CIS unit
Scanner glass strip (First side CIS glass)
Scanner glass strip (Second side CIS glass)
Document separate roller
Document separate roller ASSY
ADF cover sensor
Document guide
Document tray
Document cover
Document stopper
Scanner glass
Document eject roller
Document pinch roller
First side
document hold
First side
CIS unit
Document detection sensor PCB
Document detection actuator
Document pick-up roller
Document sponge
