2. OVERVIEW

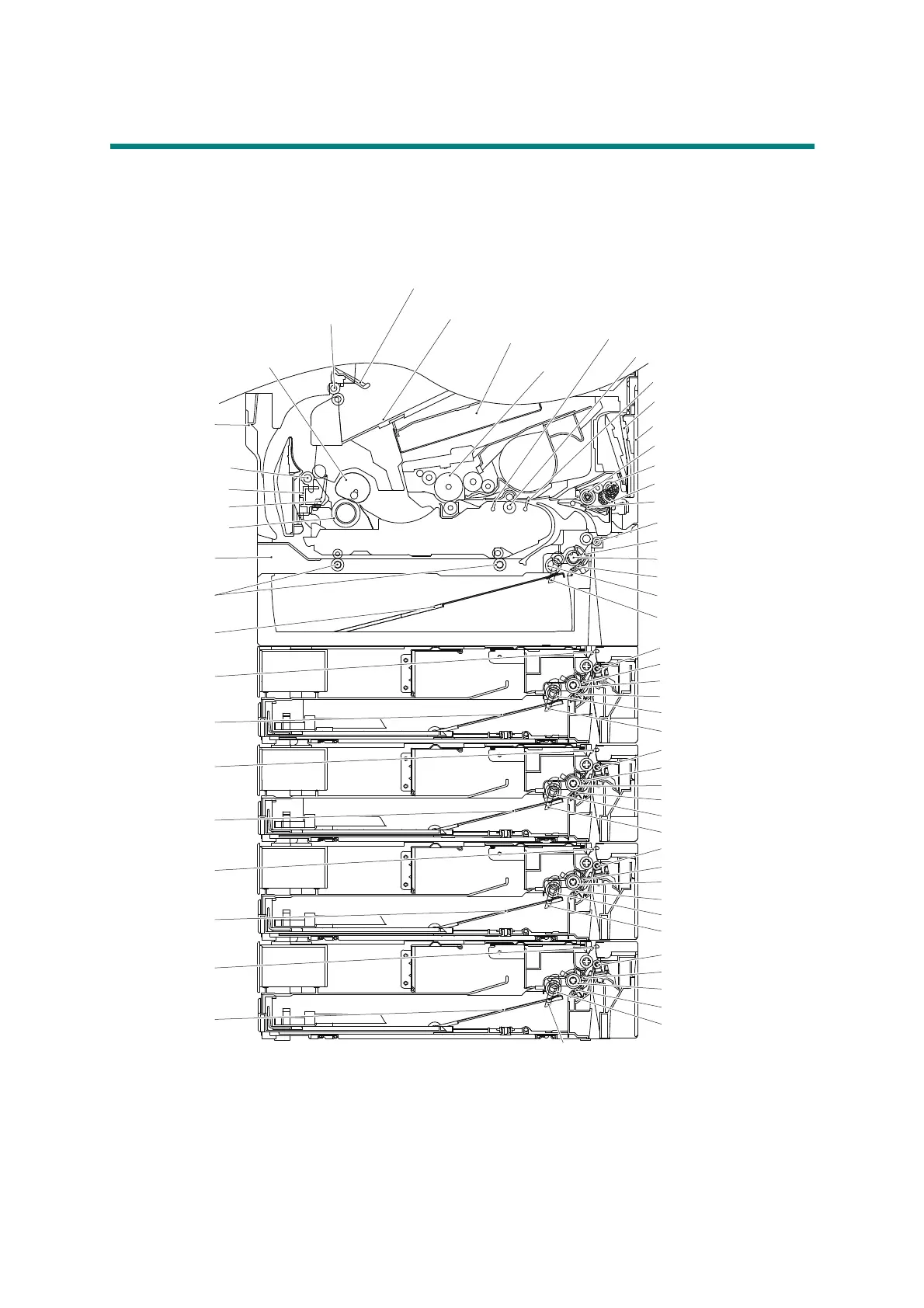

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-2
Eject stack actuator
Exposure
drum
Eject roller2
Back cover
Heat film
Eject roller 1
Fuser cover
Eject actuator
Pressure roller
Duplex tray
Duplex paper
feed roller
T2TT jam
actuator
(TT only)
T5TT paper empty actuator
<Back side>
<Front side>
T1 plate
T3TT jam
actuator
(TT only)
T2 plate
T3 plate
T4TT jam
actuator
(TT only)
T4 plate
T5TT jam
actuator
(TT only)
T5 plate
T5TT paper dust cleaning roller
T5TT paper feed actuator
T5TT separation roller
T5TT separation pad
T5TT paper pick up roller
T4(LT or TT) paper dust cleaning roller
T4(LT or TT) paper feed actuator
T4(LT or TT) separation roller
T4(LT or TT) separation pad
T4(LT or TT) paper pick up roller
T4(LT or TT) paper empty actuator
T3(LT or TT) paper dust cleaning roller
T3(LT or TT) paper feed actuator
T3(LT or TT) separation roller
T3(LT or TT) separation pad
T3(LT or TT) paper pick up roller
T3(LT or TT) paper empty actuator
T2(LT or TT) paper dust cleaning roller
T2(LT or TT) paper feed actuator
T2(LT or TT) separation roller
T2(LT or TT) separation pad
T2(LT or TT) paper pick up roller
T2(LT or TT) paper empty actuator
T1 paper dust cleaning roller
T1 paper feed actuator
T1 separation roller
T1 separation pad
T1 paper pick up roller
T1 paper empty actuator
(Models with USB host on the
rear side only)
MP separation pad
MP paper empty actuator
MP paper pick up roller
MP separation roller
Front cover
MP tray
Registration front actuator
Registration roller
Registration rear actuator
Laser unit
Machine output tray
