Brother DCP-L5600DN Service Manual

3-53
Confidential
(5) Lift the hook and slide the second side scanner glass strip in the direction of the arrow
5a. Lift the right end of the second side scanner glass strip to remove it in the direction of
the arrow 5b.

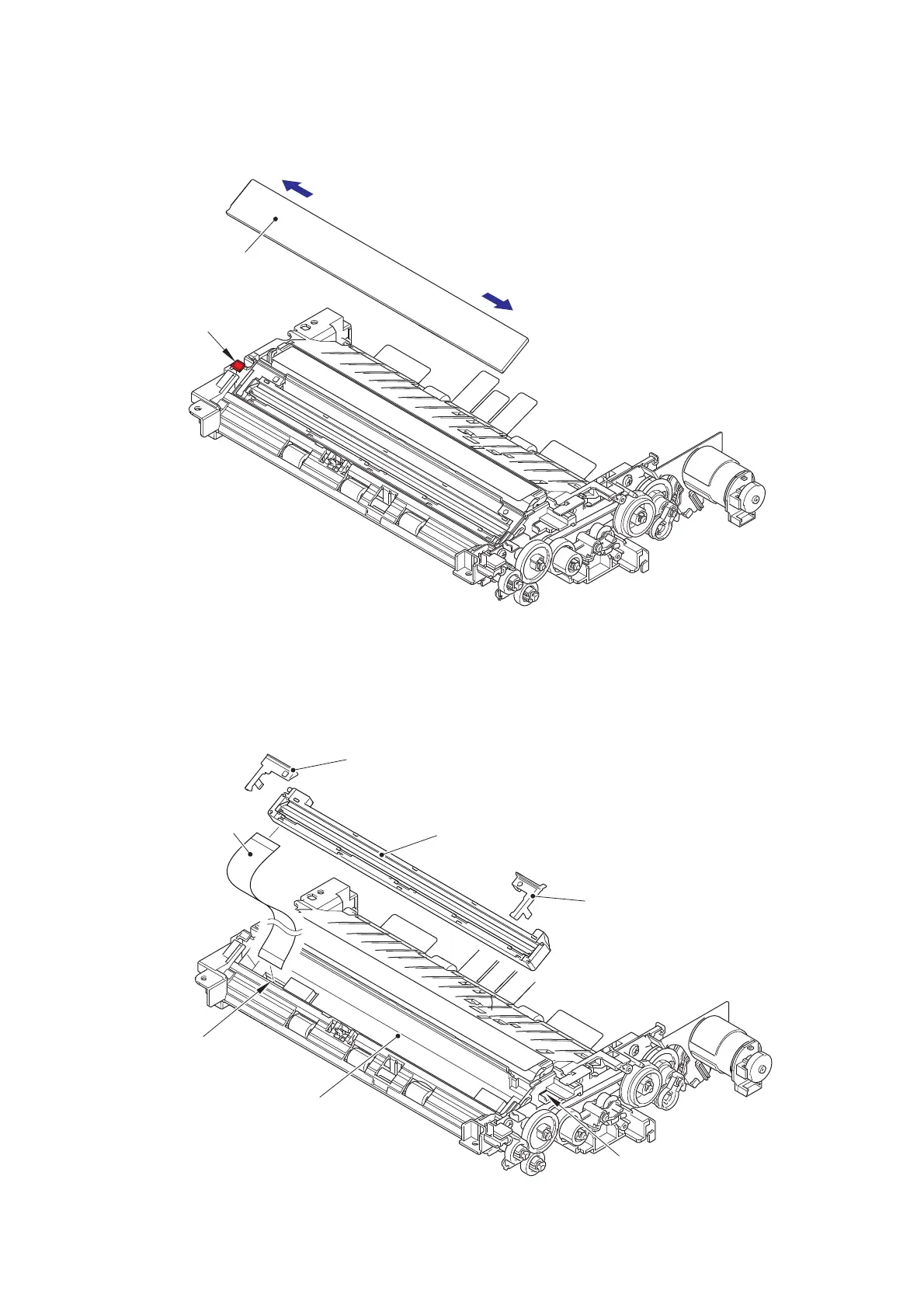

Fig. 3-44
(6) Remove the CIS spacer R and CIS spacer F from the second side CIS unit.
(7) Remove the second side CIS unit from the lower document chute, and pull out the
second side CIS flat cable from the two holes of the lower document chute.
(8) Disconnect the second side CIS flat cable from the second side CIS unit.
Fig. 3-45
Second side scanner
glass strip
Hook
5a
5b
Lower document chute
CIS spacer F
CIS spacer R
Second side CIS unit
Hole
Hole
Second side
CIS flat cable
