Brother DCP-L5600DN Service Manual

3-95
Confidential
 Common to all models
(11) Remove the four taptite cup S M3x8 SR screws and four taptite bind B M4x12 screws.
Remove the main frame L ASSY, and pull out the erase lamp harness*, paper empty
sensor harness*, low-voltage power supply harness, eject sensor harness, and HVPS
flat cable from the hole of the main frame L ASSY.

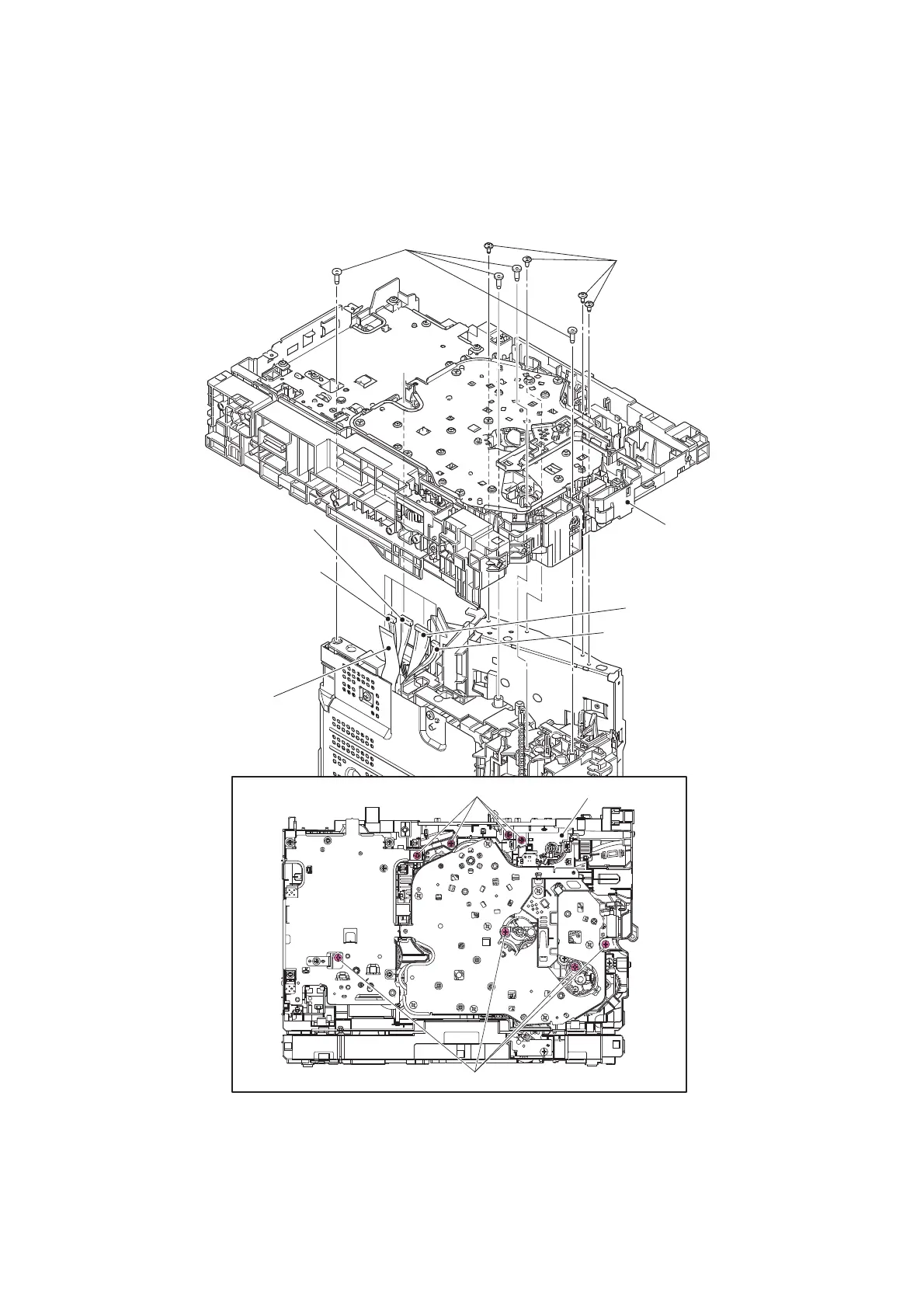

Fig. 3-95
Taptite cup S M3x8 SR
Taptite bind B M4x12
Main frame L ASSY
Low-voltage power
supply harness
Eject sensor harness
HVPS flat cable
Taptite cup S M3x8 SR
Taptite bind B M4x12
Main frame L ASSY
Erase lamp harness*
Paper empty sensor harness*
* Models with 520-sheet T1 only

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
