Brother DCP-L5600DN Service Manual

3-97
Confidential
(2) Remove the four taptite cup S M3x8 SR screws, and remove the paper feed motor plate
from the drive sub ASSY.
(3) Remove the fuser gear 35/83R and the DRM gear 32/83R from the paper feed motor
plate.
(4) Remove the three screw bind M3x4 screws, and remove the paper feed motor from the
paper feed motor plate.
(5) Disconnect the paper feed motor harness from the paper feed motor.

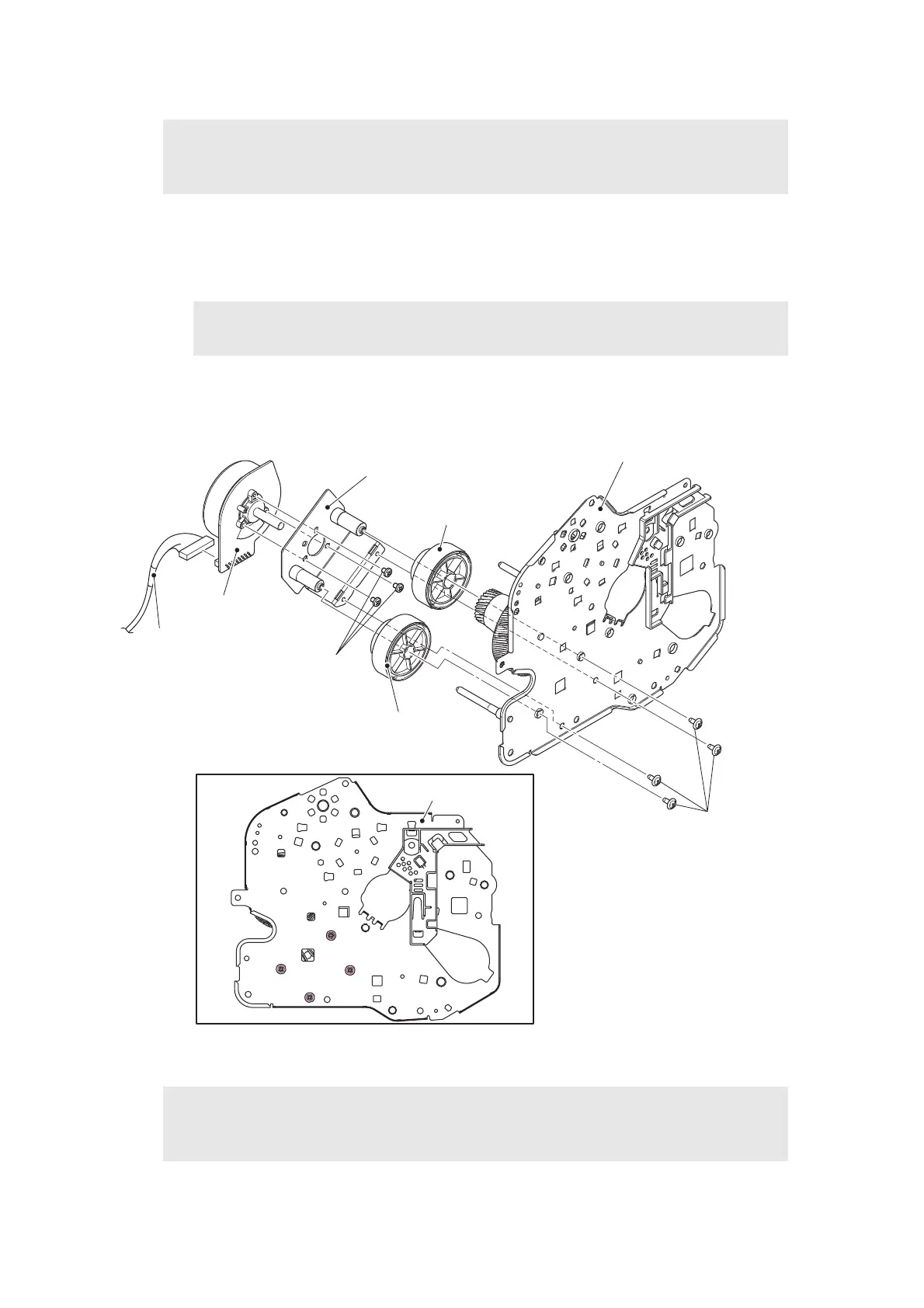

Fig. 3-97
Note:
• Do not allow the metallic gear shaft of the paper feed motor and drive sub ASSY to face
down. Failure to observe this may cause the steel plate to bend.
Note:
• Be careful not to damage the gear teeth.
Assembling Note:
• When securing the paper feed motor on the drive sub ASSY with screws, tighten the
screws in the sequence of the alphabets engraved on the drive sub ASSY.
Drive sub ASSY
Paper feed
motor harness
Fuser gear 35/83R
Paper feed motor plate
DRM gear 32/83R
Taptite cup S M3x8 SR
Drive sub ASSY
a
b
d
c
Paper feed motor
Screw bind M3x4

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
