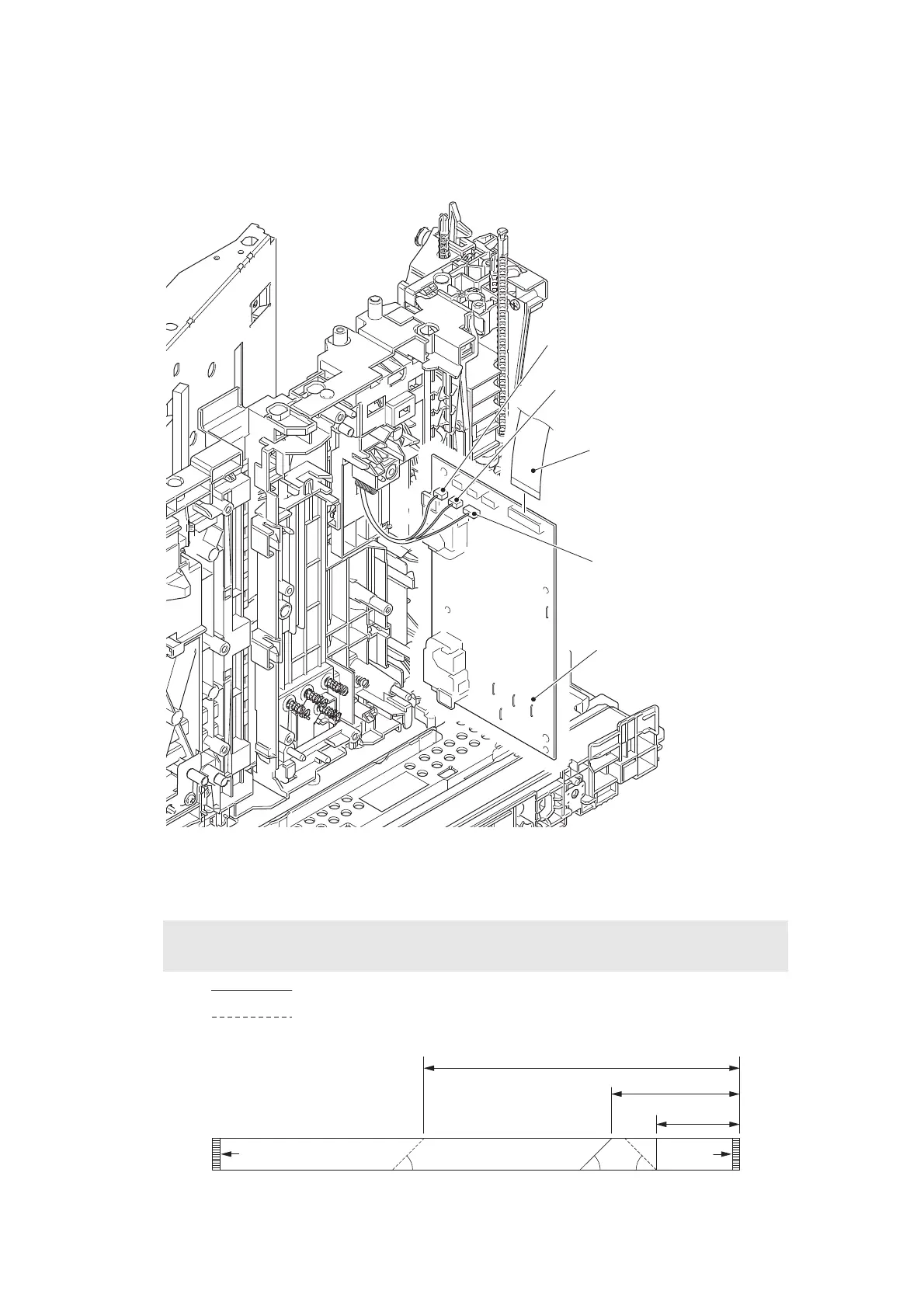

(5) Disconnect the registration front/rear sensor harness, T1 paper feed sensor harness and
the MP paper empty sensor harness from the high-voltage power supply PCB ASSY to
remove the high-voltage power supply PCB ASSY.
(6) Disconnect the HVPS flat cable from the high-voltage power supply PCB ASSY.
Fig. 3-110
Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB
ASSY)”.
Fig. 3-111
Assembling Note:
• Fold the HVPS flat cable at the positions shown in the figure below.
HVPS flat cable
High-voltage power
supply PCB ASSY
Registration front/rear sensor
harness
T1 paper feed sensor harness
MP paper empty sensor harness
Mountain fold
Valley fold
221±1
90±1
58±1
Main PCB
side
HVPS
side
45° 45°
Conductor
Conductor

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
