Brother DCP-L5600DN Service Manual

3-114
Confidential
(4) Turn the T1 paper feed actuator in the direction of the arrow 4a, and push the hook on
the T1 paper feed actuator holder to slide the T1 paper feed actuator in the direction of
the arrow 4b to remove it from the T1 paper feed actuator holder.
(5) Remove the T1 paper feed actuator spring from the T1 paper feed actuator.
(6) Remove the securing fixtures of the T1 paper feed sensor harness from the T1 paper
feed actuator holder. Release the hook, and remove the T1 paper feed sensor PCB
ASSY from the T1 paper feed actuator holder.

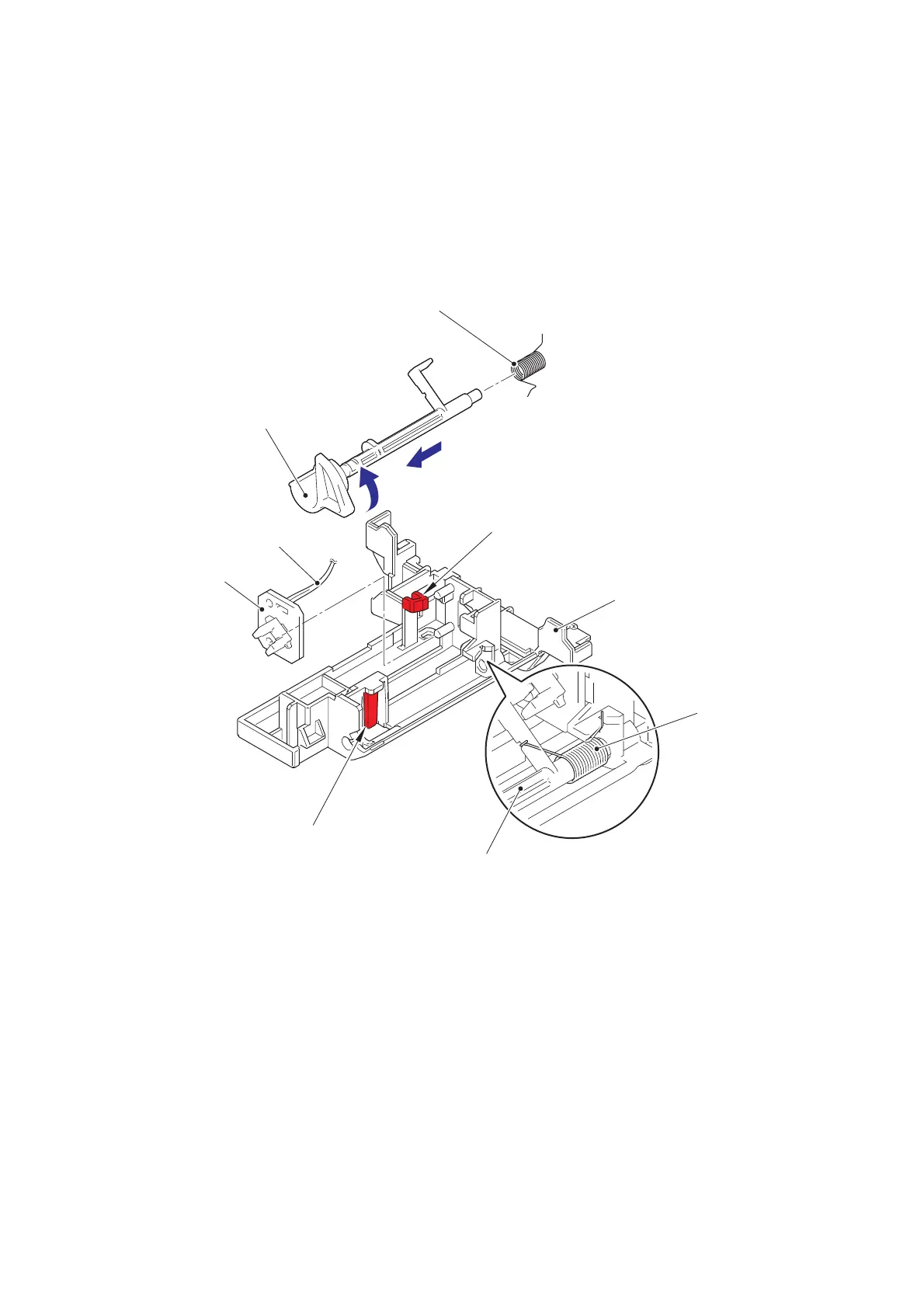

Fig. 3-115
Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB
ASSY)”.
T1 paper feed actuator
T1 paper feed
actuator holder
T1 paper feed actuator spring
T1 paper feed sensor harness
Hook
T1 paper feed sensor
PCB ASSY
4a
4b
Hook
T1 paper feed actuator
T1 paper feed
actuator spring

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
