Brother DCP-L5600DN Service Manual

3-117
Confidential

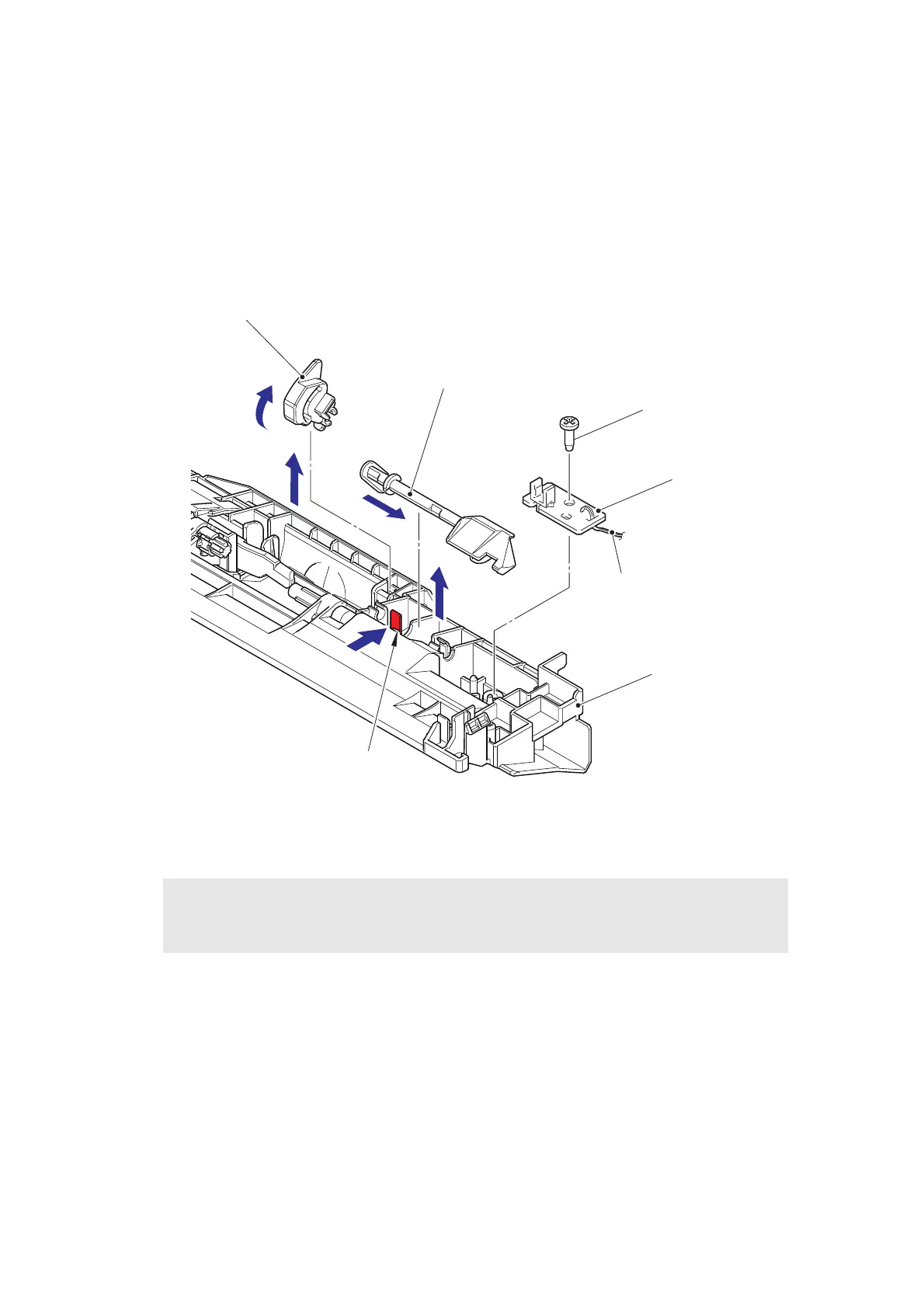

(5) Turn MP paper empty actuator 2 in the direction of the arrow 5a, and push the hook in
the direction of the arrow 5b to slide MP paper empty actuator 1 in the direction of the
arrow 5c to remove it from the MP feed frame in the direction of the arrow 5d.
(6) Turn MP paper empty actuator 2 in the direction of the arrow 5a, and remove it from the
MP feed frame in the direction of the arrow 6.
(7) Remove the taptite bind B M3x10 screw. Remove the MP paper empty sensor PCB
ASSY from the MP feed frame, and pull out the MP paper empty sensor harness from
the hole.
Fig. 3-118
Assembling Note:
• Insert the end of MP paper empty actuator 1 into the groove on the MP paper empty
actuator 2.
Taptite bind B M3x10
MP paper empty sensor
PCB ASSY
MP feed frame
Hook
MP paper empty actuator 2
MP paper empty actuator 1
6
5c
5d
5a
5b
MP paper empty sensor harness

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
