Brother DCP-L5600DN Service Manual

3-136
Confidential
(6) Turn the LT paper feed actuator in the direction of the arrow A, and push the hook on the
LT paper feed actuator holder ASSY to slide the LT paper feed actuator in the direction
of the arrow B to remove it from the LT paper feed actuator holder ASSY.
(7) Remove the LT paper feed actuator spring from the LT paper feed actuator.
(8) Disconnect the securing fixtures of the LT paper feed sensor harness from the LT paper
feed actuator holder ASSY, and then release the hook to remove the LT paper feed
sensor PCB ASSY from the LT paper feed actuator holder ASSY.

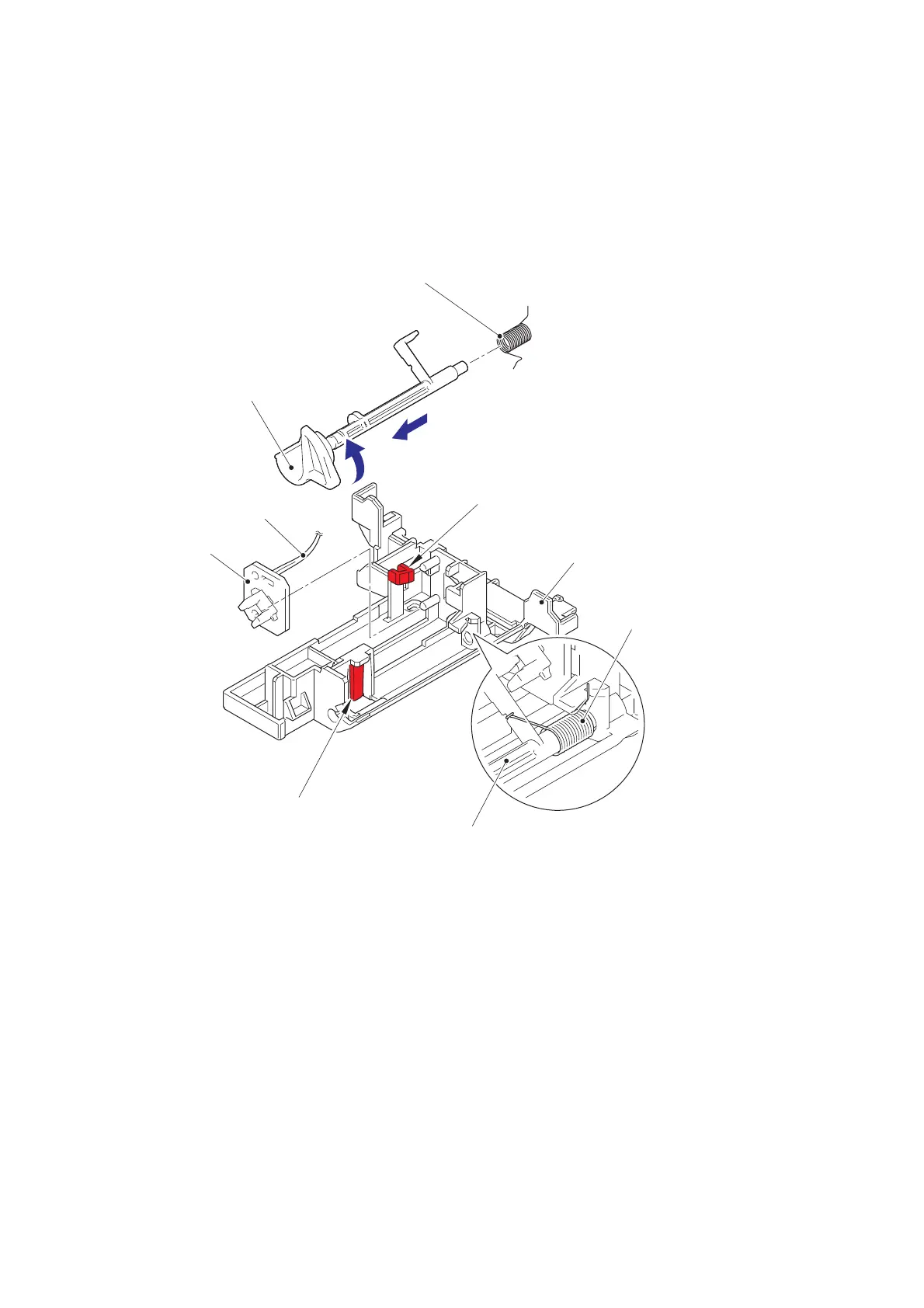

Fig. 3-139
LT paper feed actuator
LT paper feed actuator holder ASSY
LT paper feed actuator spring
LT paper feed
sensor harness
Hook
LT paper feed
sensor PCB ASSY
A
B
Hook
LT paper feed actuator
LT paper feed actuator spring

Brother DCP-L5600DN Specifications

General

Type	all in one
Color	black/gray, multi
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	50
Output Tray Capacity	150 sheets
Automatic Document Feeder Capacity	70 sheets
Paper Size	ansi a, legal, executive, a4, a5, a6, folio
Paper Handling	letter, legal, executive, a4, a5, a6, envelopes, custom sizes (3.0-8.5" (w), 5.0-14" (l))
Paper Weight	60 grams per square meter
Printing Method	monochromatic
Color Print Speed	0 pages per minute
Mono Print Speed	42 pages per minute
First Page Print Time	7 seconds
Print Resolution Mono	up to 1200 x 1200
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 50, 000
Reduction and Enlargement	no
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 1200 x 1200
Duplex Scan	yes
Max Copies	99
Copier Resolution Mono	up to 1200 x 600
Fax Function	no
Cartridges	brother tn820, brother tn850
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired
Connectivity	usb 2.0, ethernet
Mobile Devices Connection	no

Weight and Dimensions

Depth	16.8 inches
Height	16.8 inches
Width	19.5 inches
Net Weight	37.7 pounds
