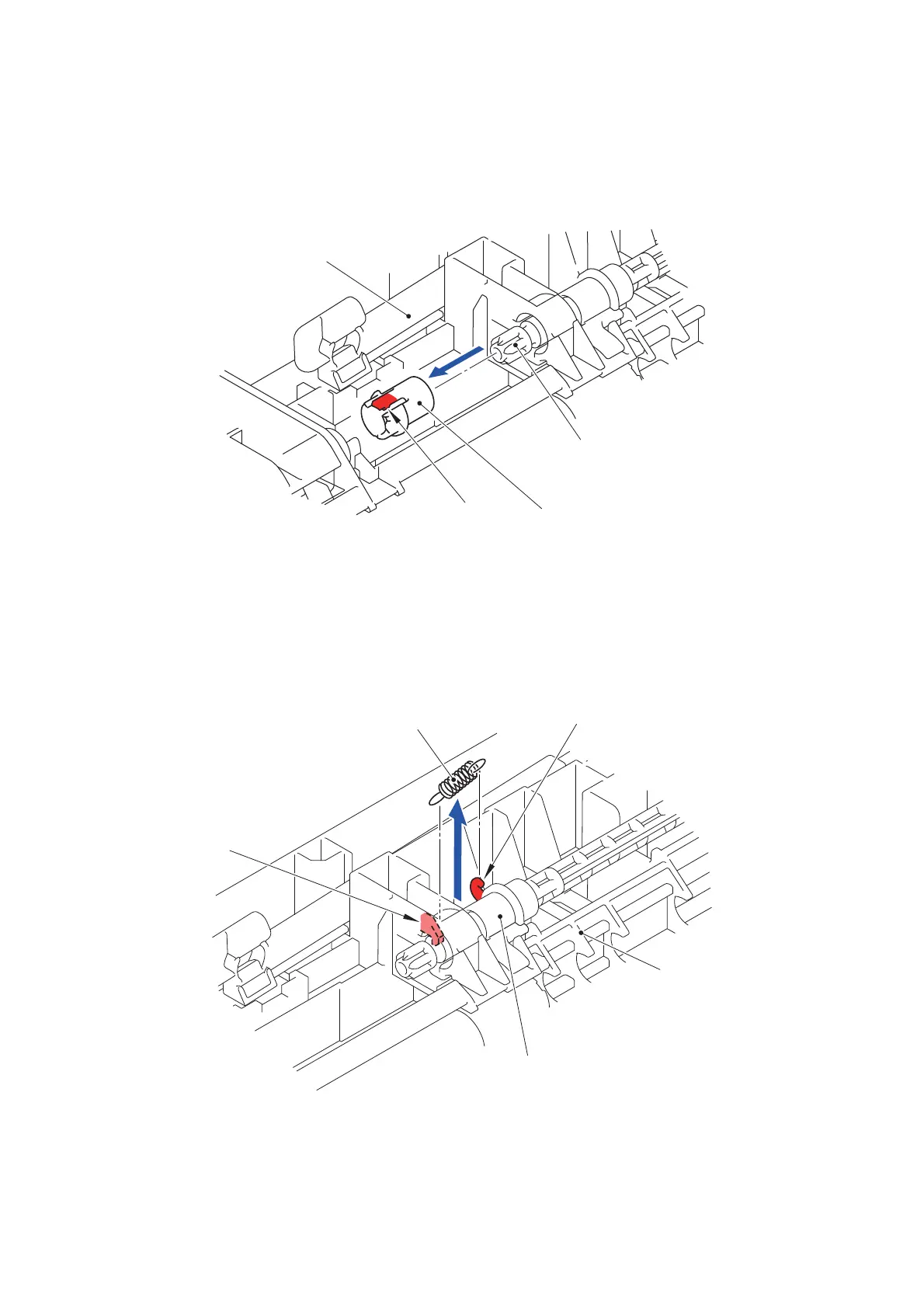

(3) Release the Hook and remove the Separation roller bushing from the T1 drive shaft gear

Z17M07.

Fig. 3-261

(4) Remove the Edge actuator spring from the Hook of the Paper feed unit and the Hook of

the Edge actuator.

Fig. 3-262

Hook

Paper feed unit

MP separation roller bushing

T1 drive shaft gear Z17M07

Hook

Paper feed unit

Edge actuator spring

Edge actuator
