3-181

Confidential

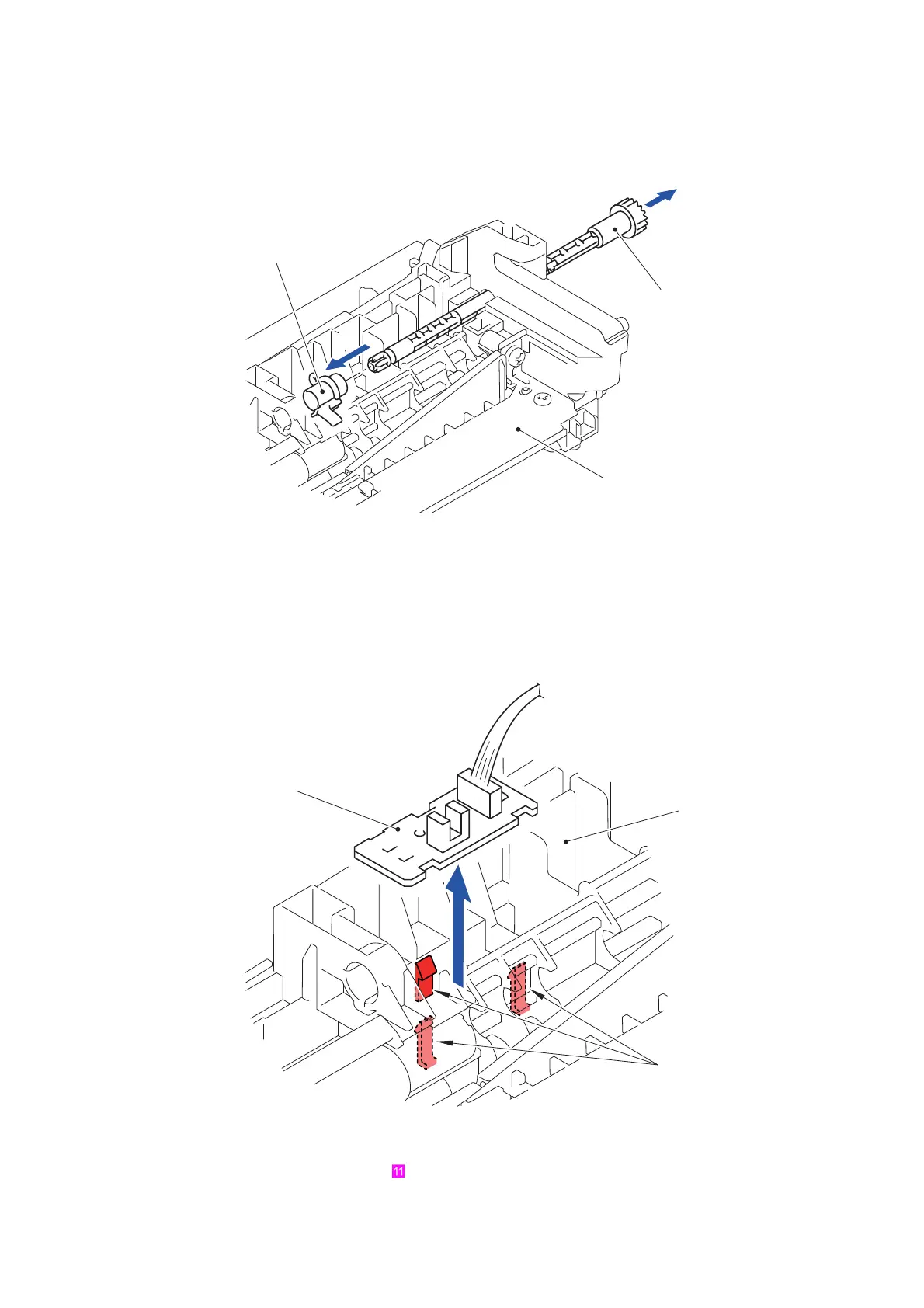

(5) Pull out the T1 drive shaft gear Z17M07 from the Paper feed unit and remove the Edge

actuator.

Fig. 3-263

(6) Release the wiring of the T1 paper feed sensor PCB ASSY.

(7) Release the three Hooks and remove the T1 paper feed sensor PCB ASSY from the

Paper feed unit.

Fig. 3-264

Harness routing: Refer to “ Paper Feed Unit”

Paper feed unit

T1 drive shaft gear Z17M07

Edge actuator

T1 paper feed sensor PCB ASSY

Hook

Paper feed unit
