7-40

Confidential

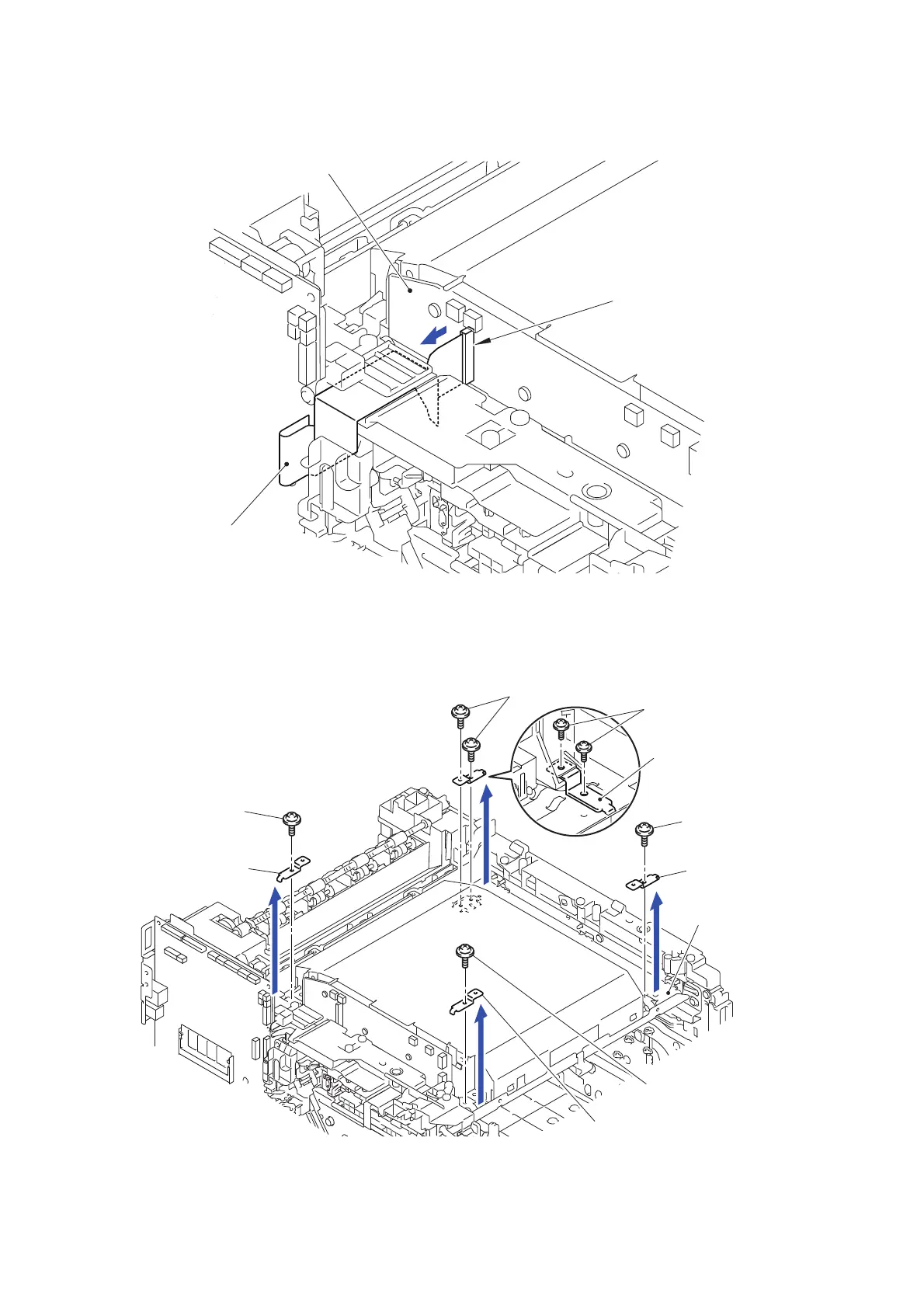

(42) Disconnect the Laser unit flat cable from the Laser unit.

Fig. 7-73

(43) Remove the five Taptite cup S M3x6 SR screws and remove the four Scanner holders

from the Scanner plate.

Fig. 7-74

Laser unit

Laser unit flat cable

CN1

Taptite cup S M3x6 SR

Scanner holder

Taptite cup S M3x6 SR

Scanner plate

Scanner holder
