2.1.3 PF kit 1

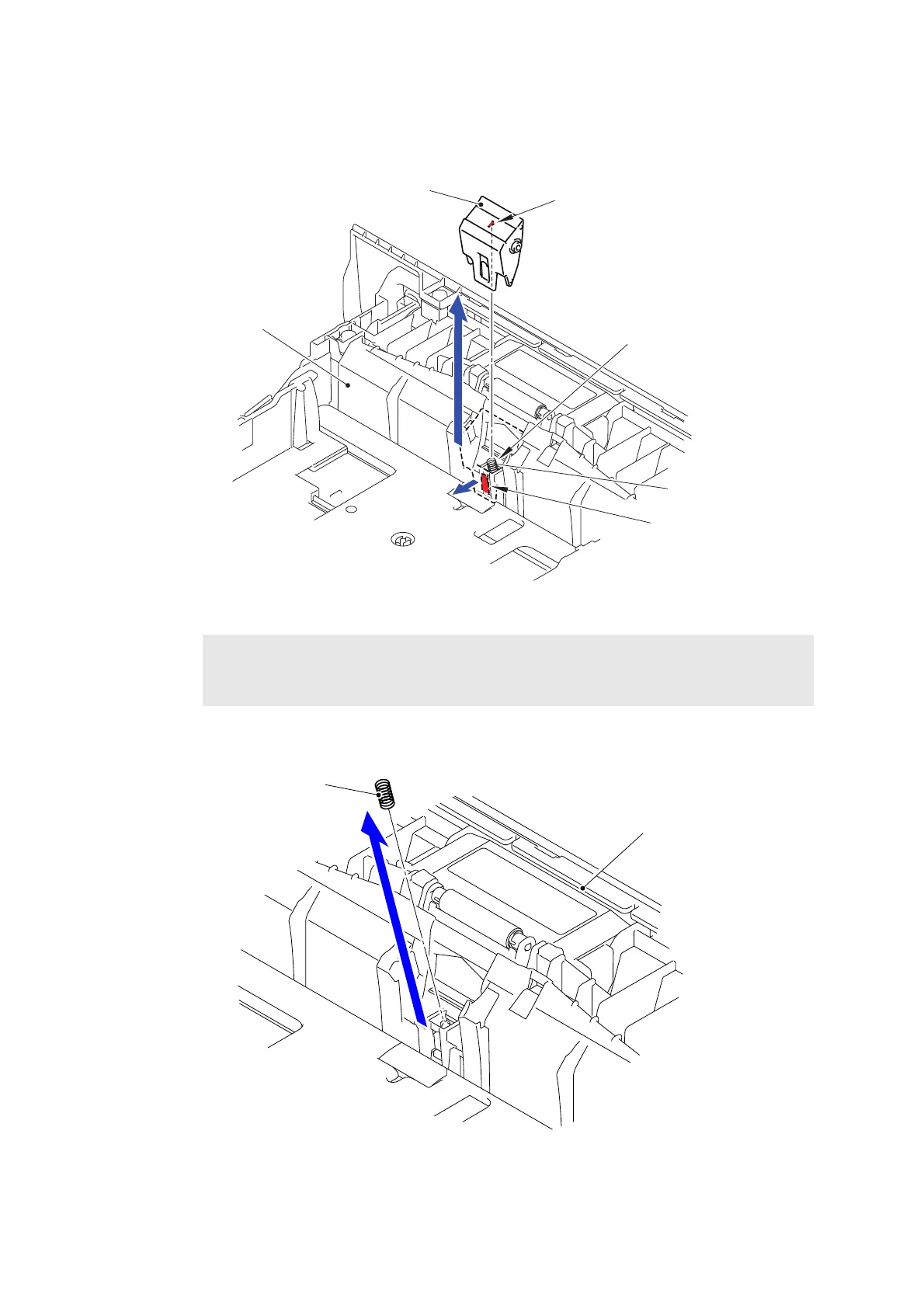

(1) Release the Hook and remove the Separation pad holder ASSY from the Paper tray 1.
Fig. 7-77
(2) Remove the Separation pad spring from the Paper tray 1.
Fig. 7-78
Assembling Note:
When assembling the Separation pad holder ASSY, be sure to assemble it in a way that
“A” of the Separation pad holder ASSY is inserted into “B” of the Separation pad spring.
1a
1b
Hook
“B”
Separation pad holder ASSY
“A”
Paper tray 1
Separation pad spring
Paper tray 1
Separation pad spring
