7-47

Confidential

(5) Release the Hook and remove the T2 paper pick-up roller ASSY from the T2 paper feed

drive shaft.

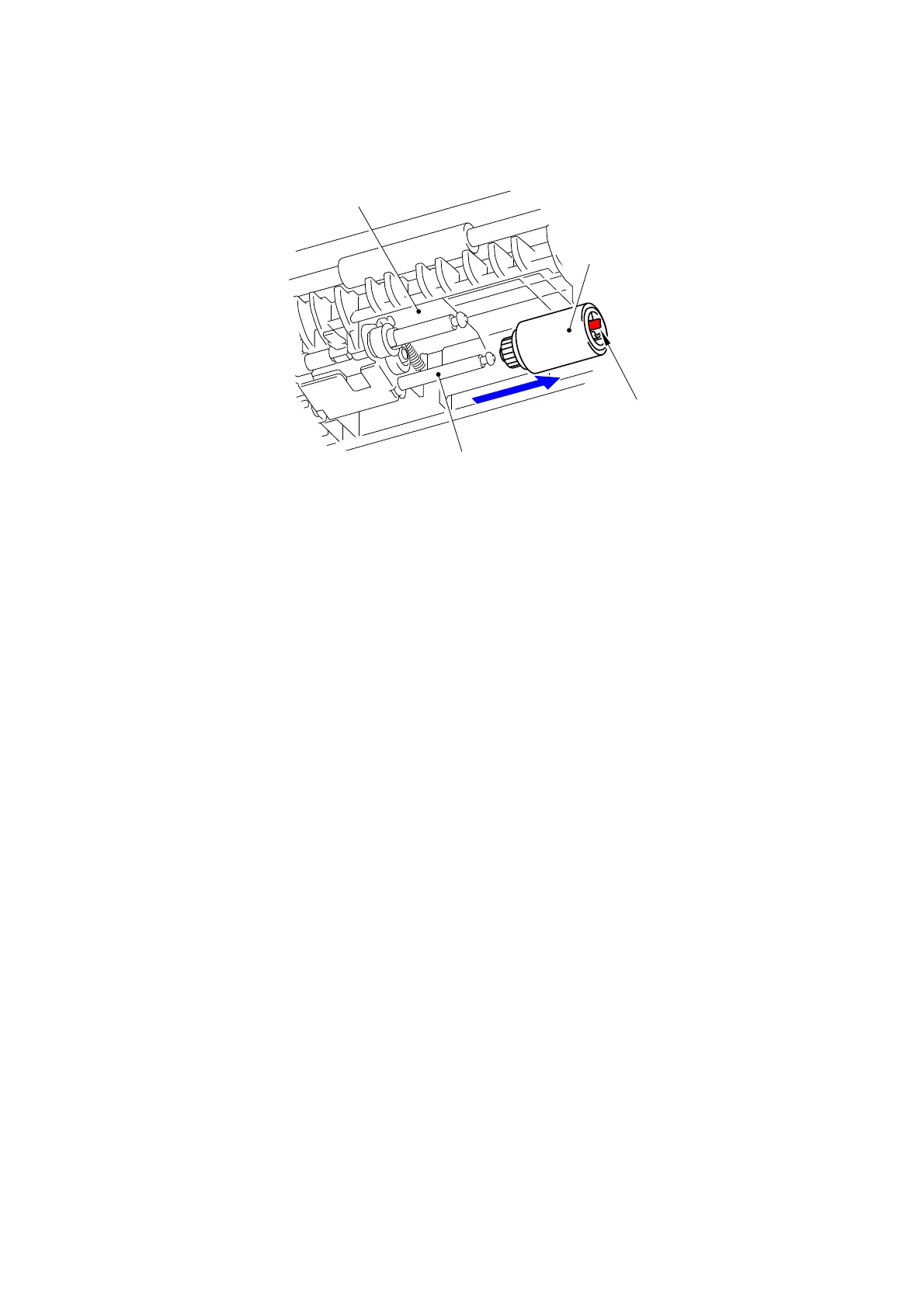

Fig. 7-86

(6) After replacing the PF kit 2, reset the counter. (Refer to “1.3.37 Reset counters for parts

(Function code 88)” in Chapter 5.)

Hook

T2 paper feed frame unit

T2 paper feed drive shaft

T2 paper pick-up roller ASSY

Default Chapter4
