Brother DCP-L8400DN Service Manual

7-46
Confidential

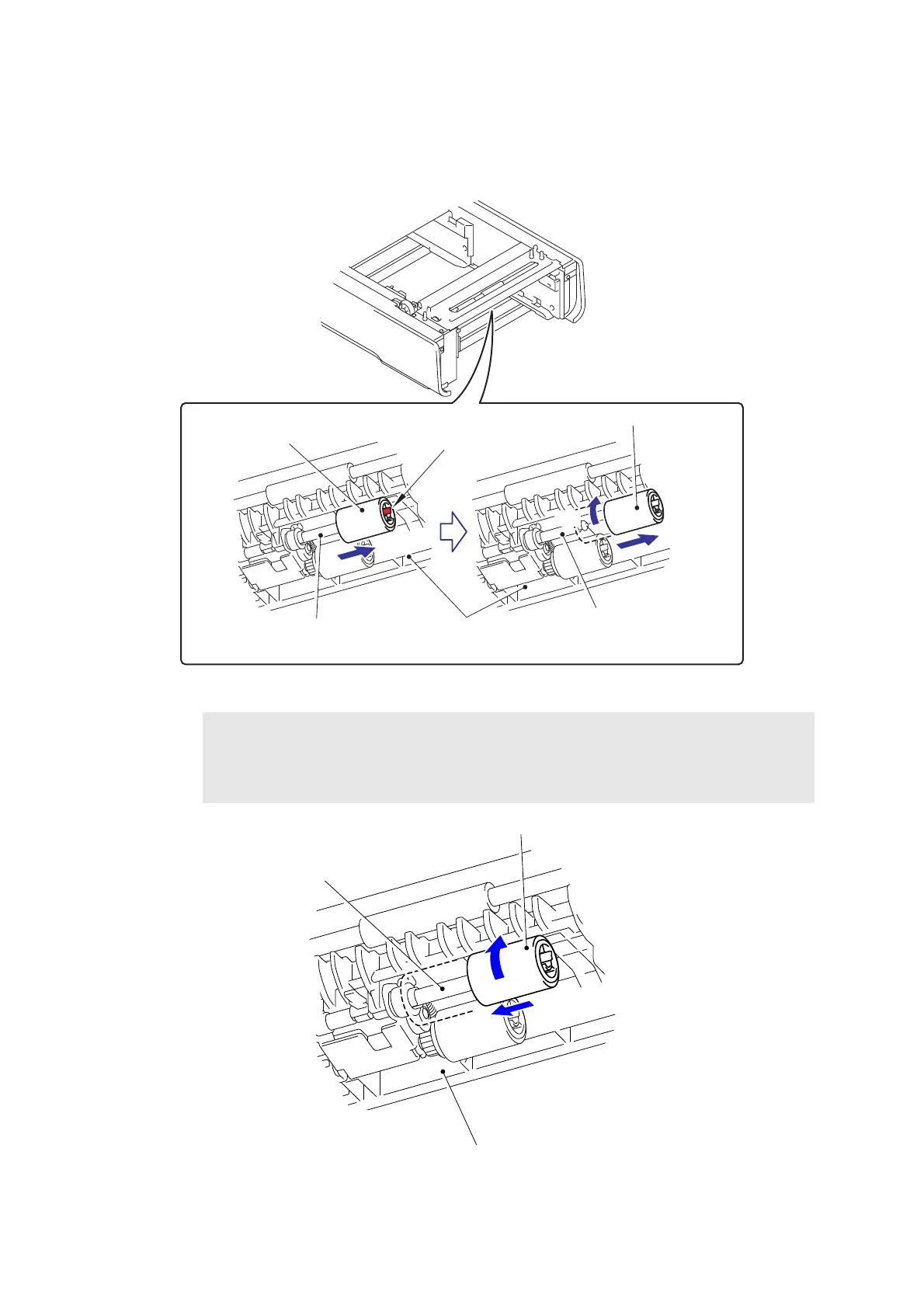

(3) Release the Hook and slide the T2 separation roller ASSY in the direction of the arrow.
(4) Rotate the T2 separation roller ASSY in the direction of the arrow 4a. Remove the T2
separation roller ASSY from the T2 paper feed drive shaft in the direction of the arrow 4b.
Fig. 7-84
Fig. 7-85
Assembling Note:
When assembling the T2 separation roller ASSY, assemble it by sliding it in the
direction of the arrow b as rotating the T2 separation roller ASSY in the direction of the
arrow a.
3
4b
4a
Hook
T2 separation roller ASSY
T2 separation roller ASSY
T2 paper feed drive shaft
T2 paper feed drive shaft
T2 paper feed
frame unit
a
b
T2 separation roller ASSY
T2 paper feed drive shaft
T2 paper feed frame unit
