7-45

Confidential

2.1.4 PF kit 2

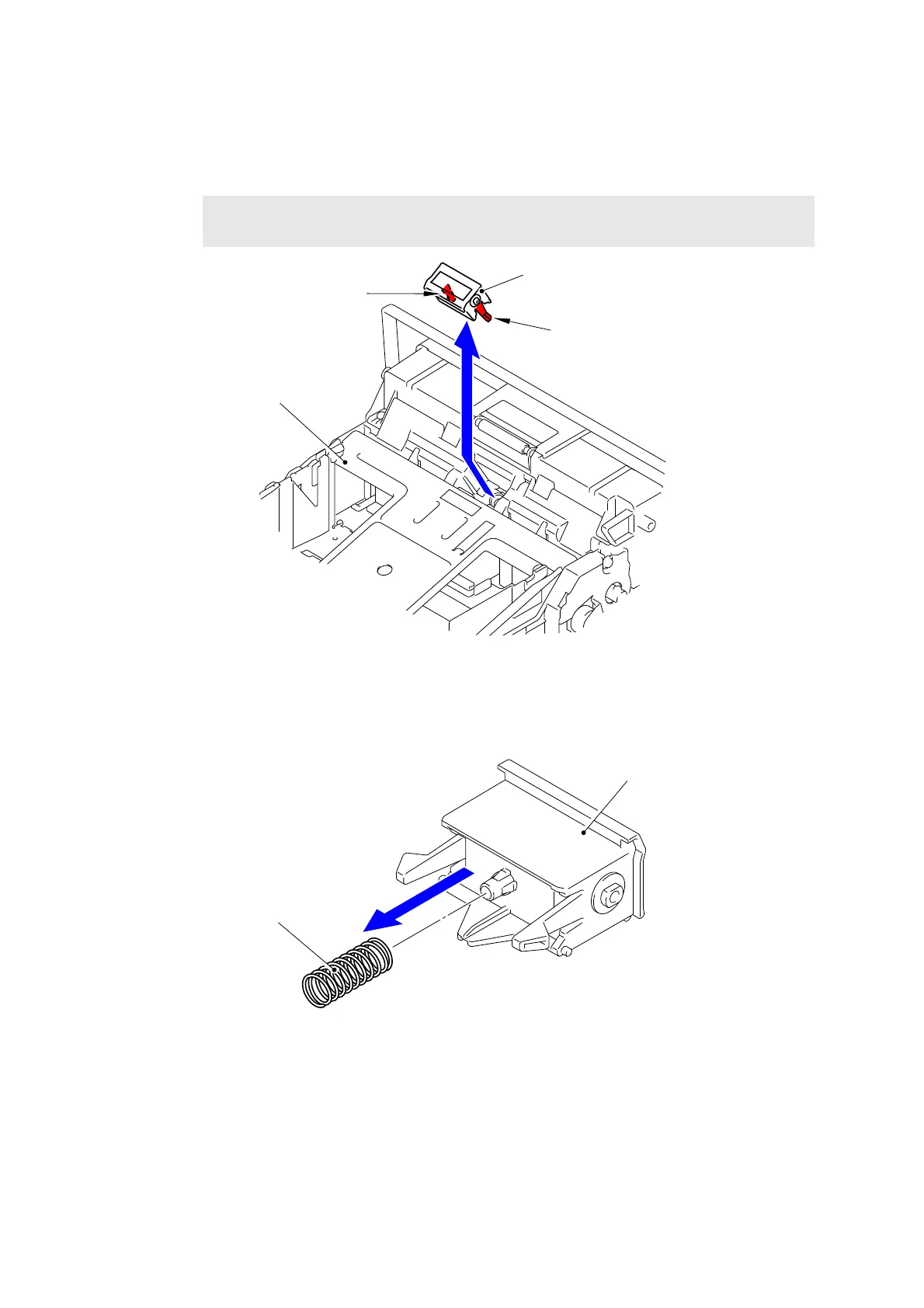

(1) Release the two Hooks of the T2 separation pad ASSY to remove them in the upward

direction.

Fig. 7-82

(2) Remove the T2 separation pad spring from the T2 separation pad ASSY.

Fig. 7-83

Note:

Be careful not to lose the T2 separation pad spring.

Hook

T2 separation pad ASSY

T2 paper tray unit

T2 separation pad ASSY

T2 separation pad spring
